ABM-50 DD VARIO AUTO-FEED HEAVY DUTY BEVELLER-Featuring load level LED monitoring system

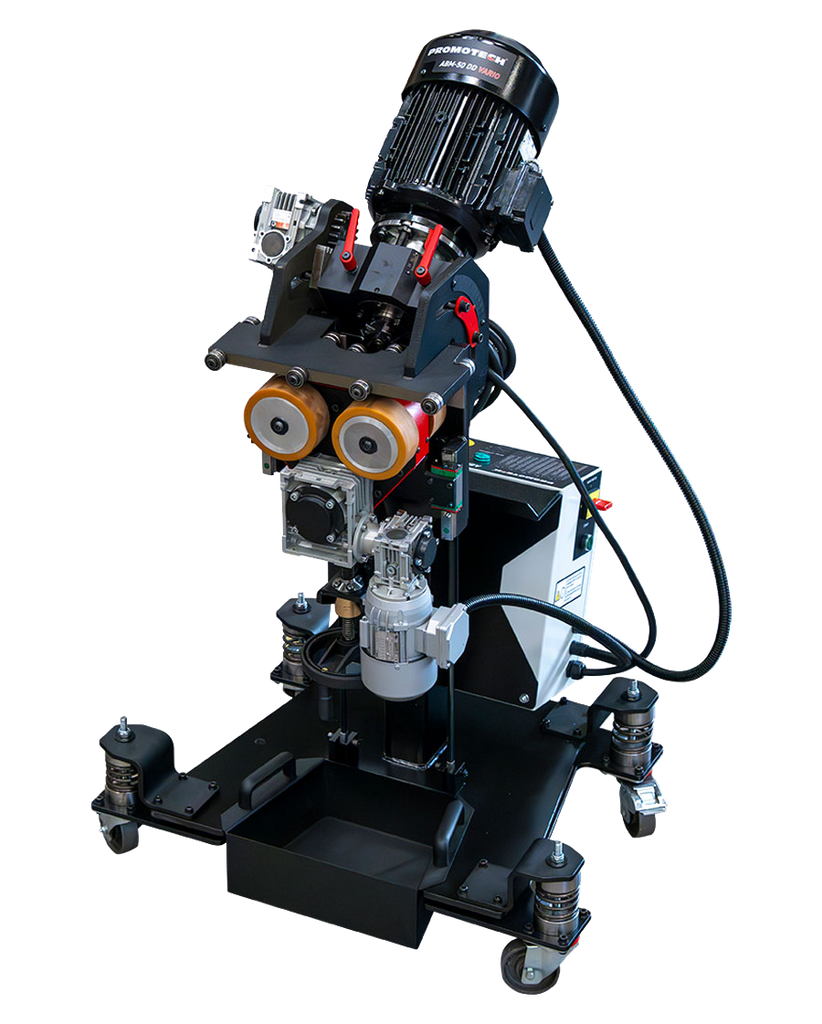

ABM-50 DD Vario is the self-propelled bevelling machine that produces high-quality bevels up to 50 mm wide without thermal distortion or the creation of heat heat-affected zone on the top edge of plates from 8 mm to 80 mm thick. Adjustment of spindle speed and feed rate, together with a load level LED monitoring system, helps to optimise cutting conditions depending on the grade of material, including stainless steel, duplex, alloys, Hardox and many others. The ABM-50 DD Vario allows continuous adjustment of the bevel angle over a wide range from 15 to 70 degrees. If you're only bevelling carbon steel, you can opt for the basic ABM-50 DD model with a fixed spindle speed.
Features
Self-propelled machine moves along the edge of the plate at speeds of up to 1.2 m/min.
Auto-feed machining to increase ergonomics, comfort, and productivity.
Continuous bevel angle adjustment from 15° to 70°.
High-quality bevels made without thermal distortion or creation of heat-affected zone on plate thickness range 8-80 mm.
Continuous bevel width adjustment up to 50 mm at 45 degrees.
Variable spindle speed for machining a wide range of steel grades.
LED monitoring system indicates the load level using green, yellow and red signals to prevent motor damage.
Technical Specifications
| ABM 50 Technical Specifications | |
|---|---|
| Voltage | 380 - 480V 3 Phase 50-60Hz |
| Power | 8.7 HP (6.5 kW) |
| Spindle speed (no load) | 300-800 RPM |
| Feed speed | 0"-47" ipm |
| Bevel angle | 15°-60° infinitely variable |
| Maximum bevel width | Varies with angle setting 2-5/8" (66 mm) at 15° 2" (50 mm) at 45° |
| Maximum depth of cut per pass | 1/4" (6 mm) |
| Plate thickness range | 5/16" - 3-1/8" (8 -80 mm) |
| Weight | 700 Lbs (320 Kg) |
| Part number | SM-ABM50 |
Bevel Capacities
| Bevel Angle | Maximum Bevel Face Width | Recommended # of Passes |
|---|---|---|
| 15° | 2.60" (66 mm) | 4 passes |
| 20° | 2.32" (59 mm) | 4 passes |
| 25° | 2.16" (55 mm) | 4 passes |
| 30° | 2.05" (52 mm) | 5 passes |
| 35° | 2.00" (50 mm) | 5 passes |
| 40° | 2.00" (50 mm) | 5 passes |
| 45° | 2.00" (50 mm) | 5 passes |
| 50° | 2.00" (50 mm) | 5 passes |
| 55° | 2.00" (50 mm) | 5 passes |
| 60° | 2.00" (50 mm) | 5 passes |
