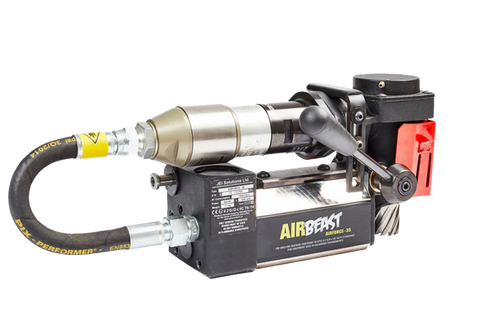

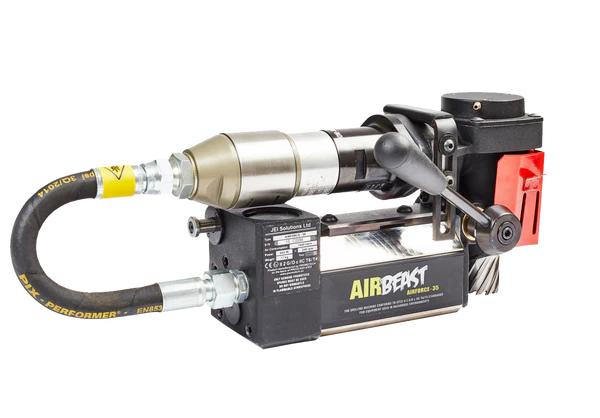

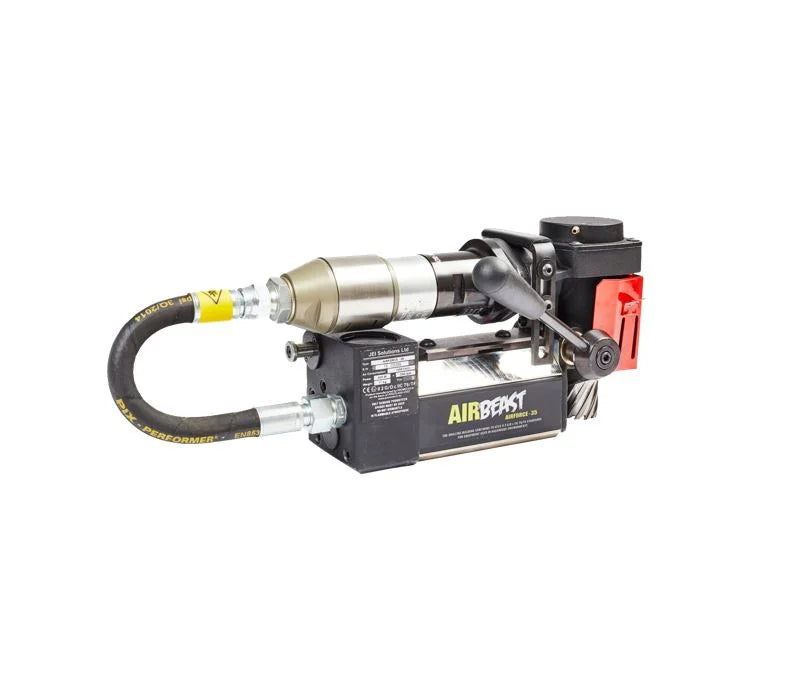

JEI Air35 Airbeast Air35 Drilling Machine
Atex approved, pneumatic drill specifically designed for space restricted and hazardous environments. A compact pneumatic drill ideally suited to space restricted and hazardous environments such as oil drilling platforms, mining industry, shipbuilding or petrochemical industry. Combining a pneumatic drive and permanent magnetic base eliminates the need of electric power supply.
- Pneumatic drive and permanent magnetic base eliminates the need for electric power.
- Compact – only 185mm high.
- Light-weight.
- Great safety features
- Strong permanent magnet base.
Specifications
- Model Airbeast 35
- Weight 17kg
- Height fixed 185 mm
- Spindle 19 mm
- Cutter Capacity 35mm Ø x 1″ depth of cut
- Max Stroke 39 mm
- Air consumption 1400 I/min (50 CFM)
- Motor Power 800 w
- Motor speed under load 240 rpm
- Length x Width 480 x 168 mm
- Cooling System Through Spindle
- Magnetic Base Dimensions 80 mm x 80 mm x 143 mm
- Magnet Deadlift 663 kg on 1″ Plate (6500 N)
- Part no DRILL-AIR35/ATEX
- Shipping Weight 23.4 kg
- Shipping Dimensions 510 x 320 x 160 mm
