Jei AirBeast 200A
For use in the most hazardous of environments
- ATEX Class II approved – for use in the most hazardous of environments.

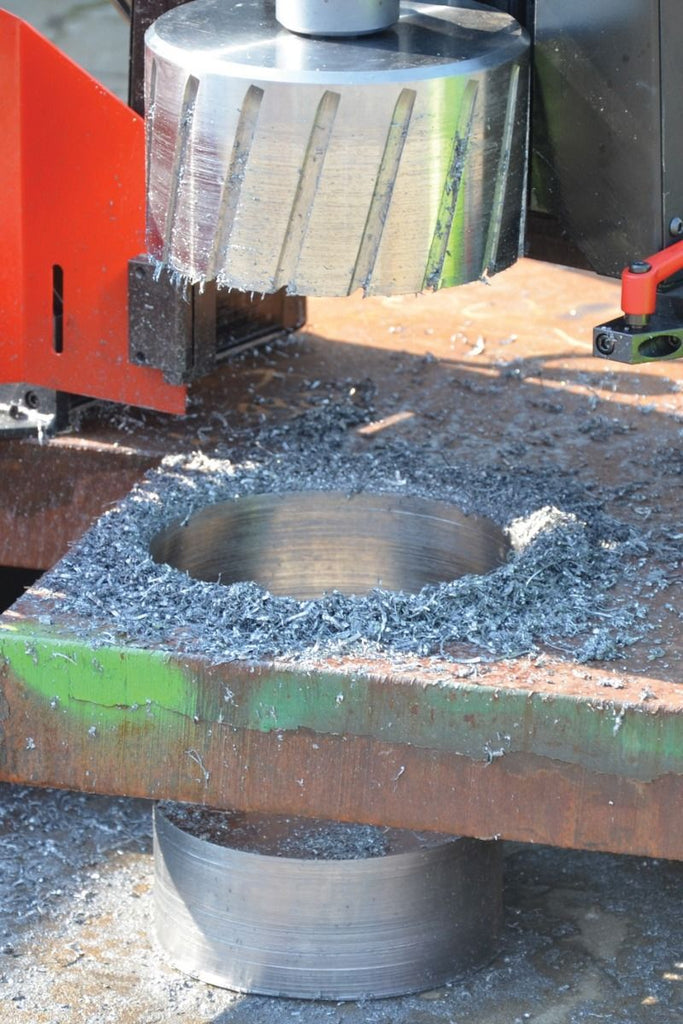

- 200 mm diameter cutter capacity.

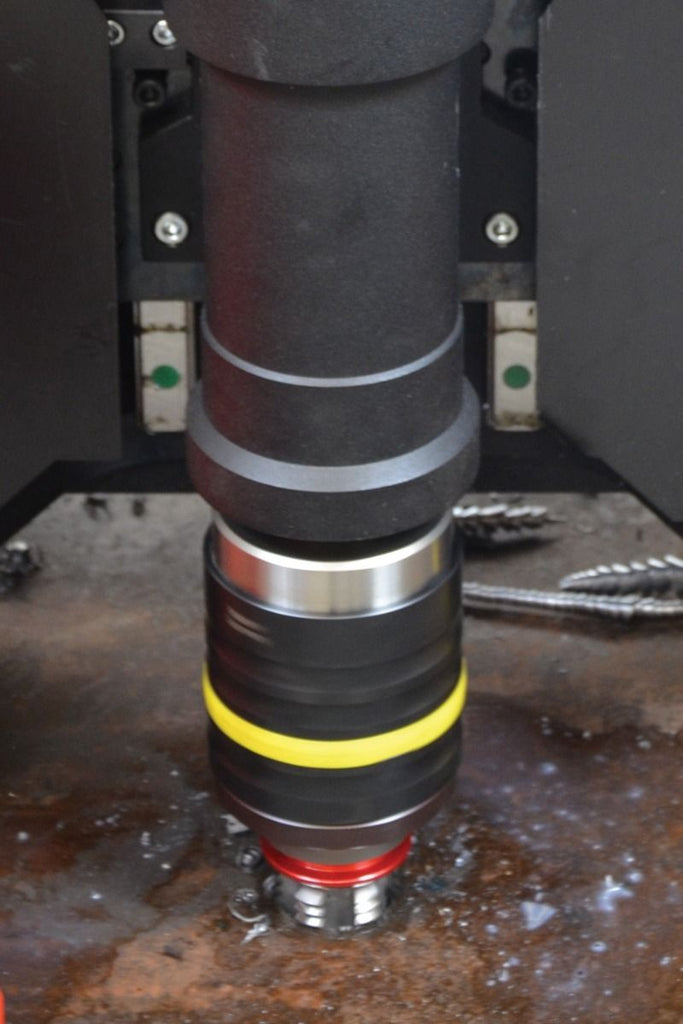

- M48 tapping capacity.
- Impressive 2 speed gear box with forward and reverse increasing flexibilty of use.
- 400 mm drill travel – for demanding drilling applications.
- Rugged one piece slide and gear box – for extra stability.
- Double permanent magnetic base – suitable for clamping to pipe and radius surfaces.

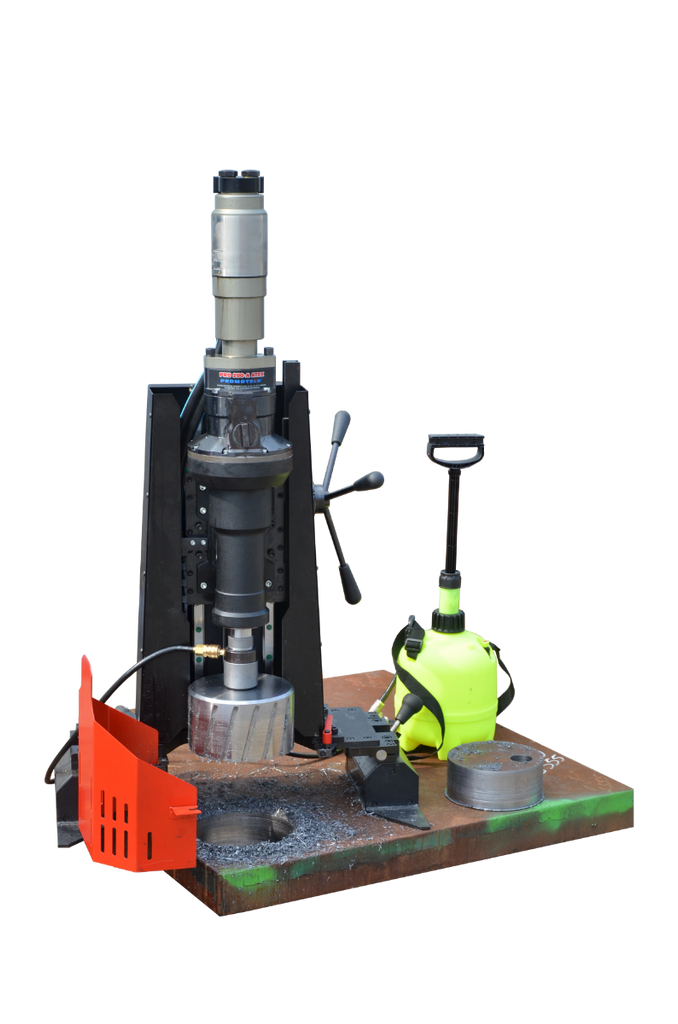

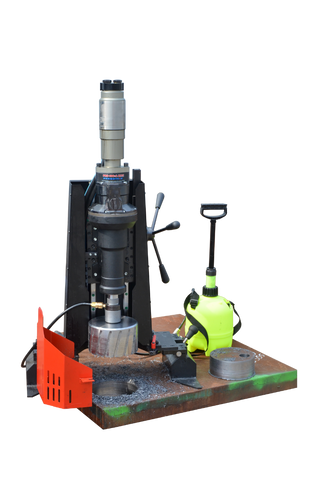

Designed to meet the most challenging hole making applications in challenging environments, the AirBeast® 200A is an ATEX Class II approved pneumatic drill, featuring 200mm diameter cutting capacity.
Specification
| Model | AirBeast® 200A |
|---|---|
| Weight | 130 kg |
| Cutter Capacity | 200 mm Ø x 4” depth of cut |

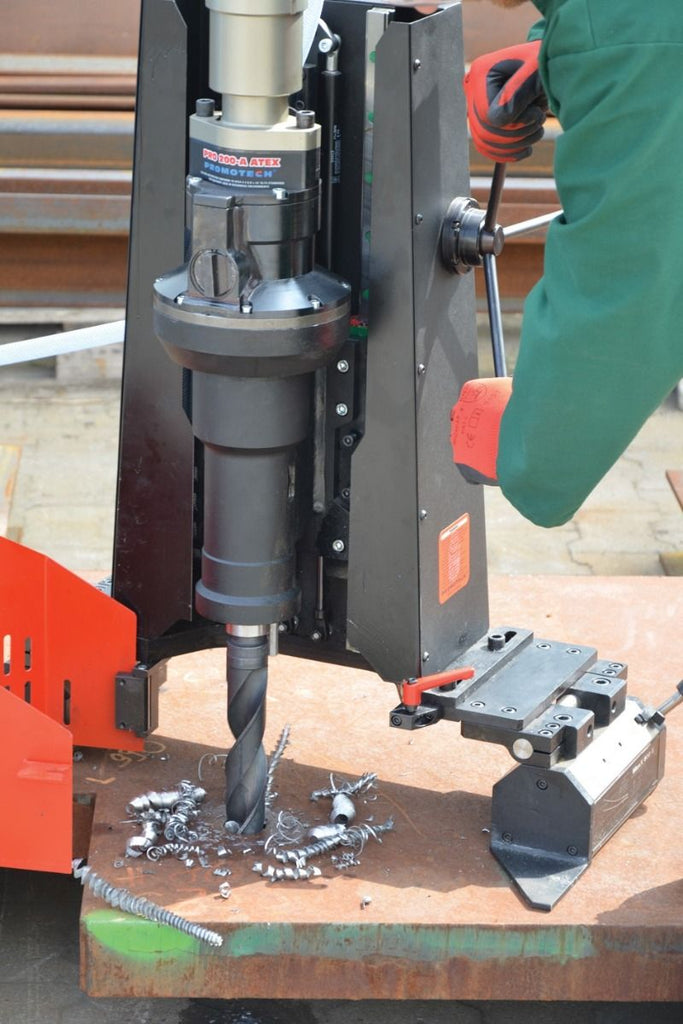

| Twist Drill Capacity | 45 mm |
| Tapping Capacity | M48 |
| Spindle | 5MT (1-1/4” shank) |
| Motor | 3650 W |
| RPM | No load 140/35 RPM loaded 80/20 RPM |
| No of Geared Speeds | 2 Fixed Speeds |
| Height Min/Max | 991 / 1391 mm |
| Length / Width | 764 x 485 mm |
| Magnetic Base Dimensions | 250 x 110 mm |
| Magnet Deadlift | 2 x 1530 kg on 25 mm Plate (2 x 15000 N) |
| Noise Level | < 90dB |
| Vibration Level | < 2.5 m/s2 |
| Shipping Weight | 150 kg |
| Shipping Dimensions | 510 x 320 x 160 mm |
| Air Consumption | 3500 l/min (125 CFM) |
| Pressure | 6.5 bar |
