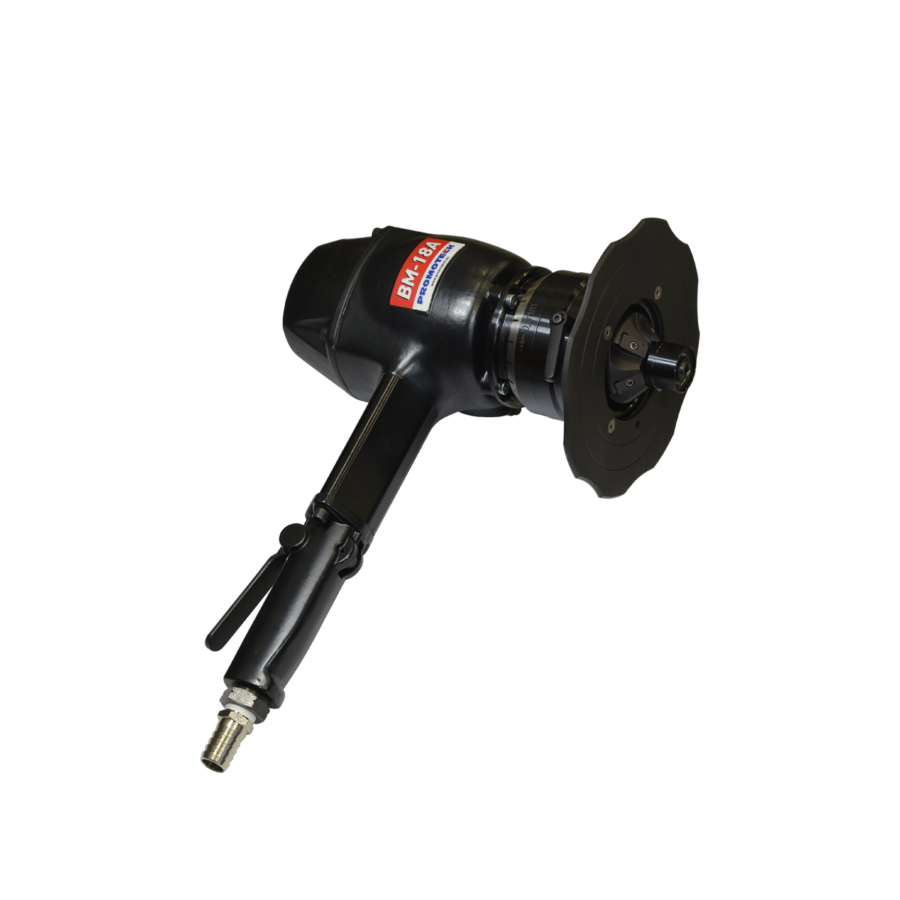

The BM-18A is a plate beveller driven by a powerful pneumatic motor. It enables milling straight edges up to 18 mm bevel width, contours, holes from 40 mm in diameter and rounding radius R2, R3, R4 and R5. New hexagonal fixing of milling heads increases beveller durability and makes replacement of the heads more convenient and user-friendly.
- Powerful pneumatic motor
- Maximum 18 mm bevel width (more than one pass could be required)
- New more durable milling heads with hexagonal fixing for easy replacement
- Continuous milling depth adjustment to fully control the bevelling process

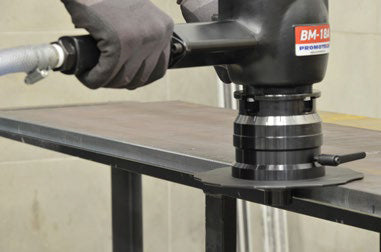

- Rounding radius R2, R3, R4, R5 on both straight and curved edges
-
2 years of warranty
Max. bevel width-18 mm
Bevel angles-22.5°, 30°, 37.5°, 45°, 50°, 55°, 60°

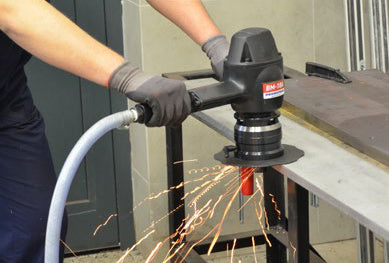

Top bevelling

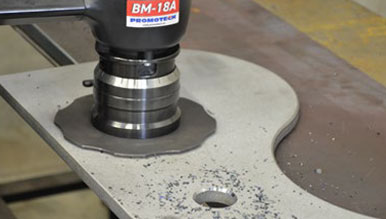

Countersinking-min. ID 40 mm
Specification
Spindle speed (without load) 6.000 rpm Maximum bevel width b=18 mm (Fig.1) Bevel angle (depending on milling head in use) ß = 22.5°, 30°, 37.5°, 45°, 50°, 55°, 60° (Fig. 1) Minimal diameter of countersinking ca 40 mm (1.57’’) Rounding edges (option) R2, R3, R4, R5 (Fig. 2) Minimal plate thickness 2 mm Air requirement 6 bar (0,6MPa) (87 PSI) Air consumption 1800 L/min , (64 CFM) Pneumatic drive 2.800 W Minimum required diameter of supply hose 19 mm (3/4”) Weight (without milling head) 9,3 kg Product Code UKS-0640-10-00-00-0
