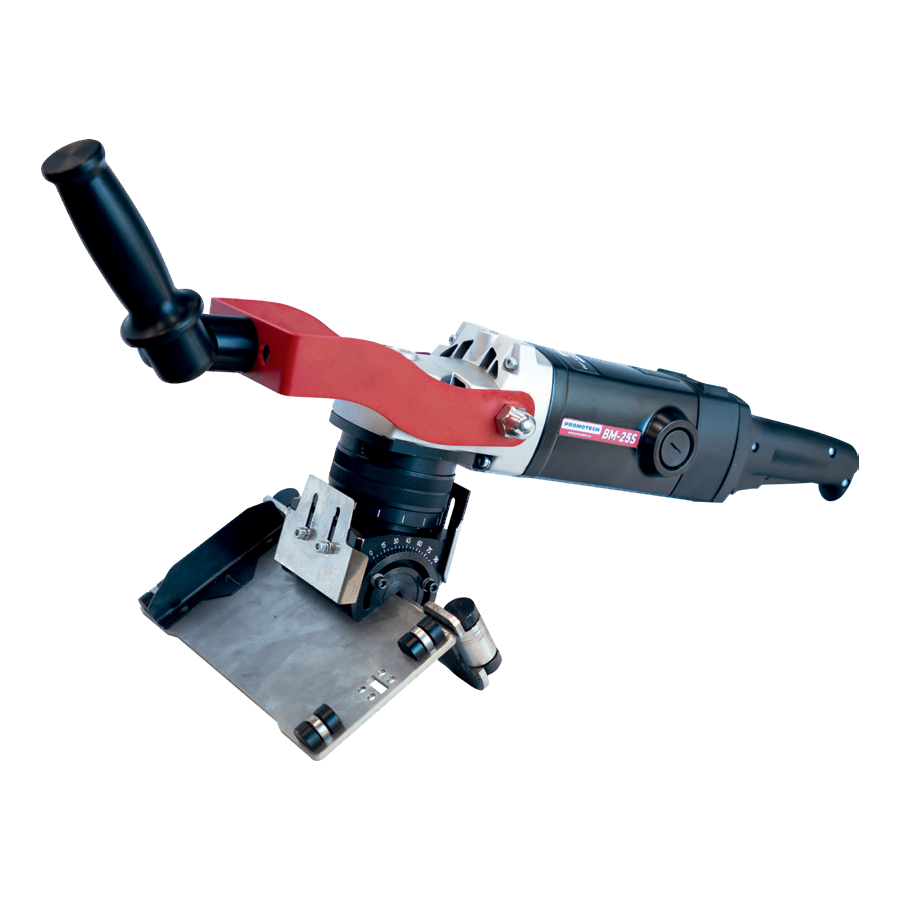

The BM-25S is an all-new, easy-to-use, portable heavy-duty machine designed for bevelling stainless steel. The BM-25S is a portable, heavy-duty machine designed for efficient
bevelling of stainless steel. Equipped with a powerful motor and a face-milling bevelling head, the beveller ensures smooth operation
and exceptional efficiency. It allows the milling of straight edges with bevel widths up to 25 mm, and its variable spindle speed makes
it easy to optimise cutting conditions.
The BM-25S offers full control over the milling process, with a continuously adjustable bevel angle between 0 and 90 degrees and
adjustable milling depth. Its roller guide makes the beveller easy and light to operate, and all guide components are made of stainless
steel to protect against contamination.
Featuring a state-of-the-art electronic motor overload module that protects the operator, the machine, and the tooling.
Features
• Contamination-free stainless steel processing.
• Comfort and ergonomics of work - fully adjustable handle.
• Continuously adjustable bevel angle between 0 and 90 degrees.
• Single head operates with face milling method, allowing less milling resistance and effort for the operator.
• Maximum 25 mm bevel width (more than one pass could be required).
• Continuous bevel width adjustment.
• Powerful electric motor.
• Milling head is equipped with 5 pcs of 4-sided indexable cutting inserts.
• Electronic speed control between 1800–5850 rpm to work on various materials.
• Overload protection to prevent motor damage.
• A single head works with the face milling method, allowing less milling resistance and effort for the operator.
Comfort and ergonomics of work:
• Adjustable grip and handle enable comfort of work for both right and left-handers and operators of different heights.
• Guide set with rollers can be rotated through 360 degrees.
• 2 possible positions of rollers (wide and narrow).
• Each user can individually adjust the position of the grip and handle.
• Grip can be rotated through 360 degrees.
• The handle can be tilted to the desired angle.
• One milling head for full range of angles.
• No need for separate milling heads for specific angles.
• Recommended bevel angle from 15 to 75 degrees.
Specification
| Voltage | 1) 110-120 V, 50-60 Hz | 2) 220-240V, 50-60 Hz |
| Power | 2200 W | |
| Spindle speed (without load) | 1800-5850 rpm | |
| Maximum bevel width (b, Fig. 1) | 25 mm (1") | |
| Maximum depth of cut (d, Fig. 1) | 12,5 mm (1/2") | |
| Bevel angle (β, Fig. 1) | 0°-90° 15°-75° (recommended) | |
| Minimum workpiece thickness | 2 mm (0.08”) | |
| Weight | 12,5 kg (27 lb) | |
| Required ambient temperature | 0–40°C (34–104°F) |
