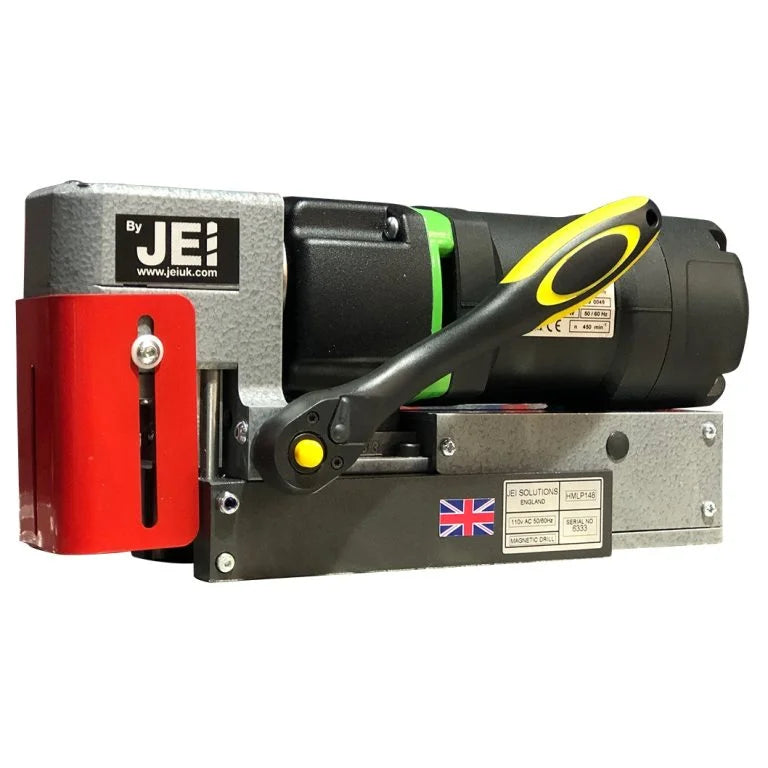

Jei MagBeast Ultra Low Profile

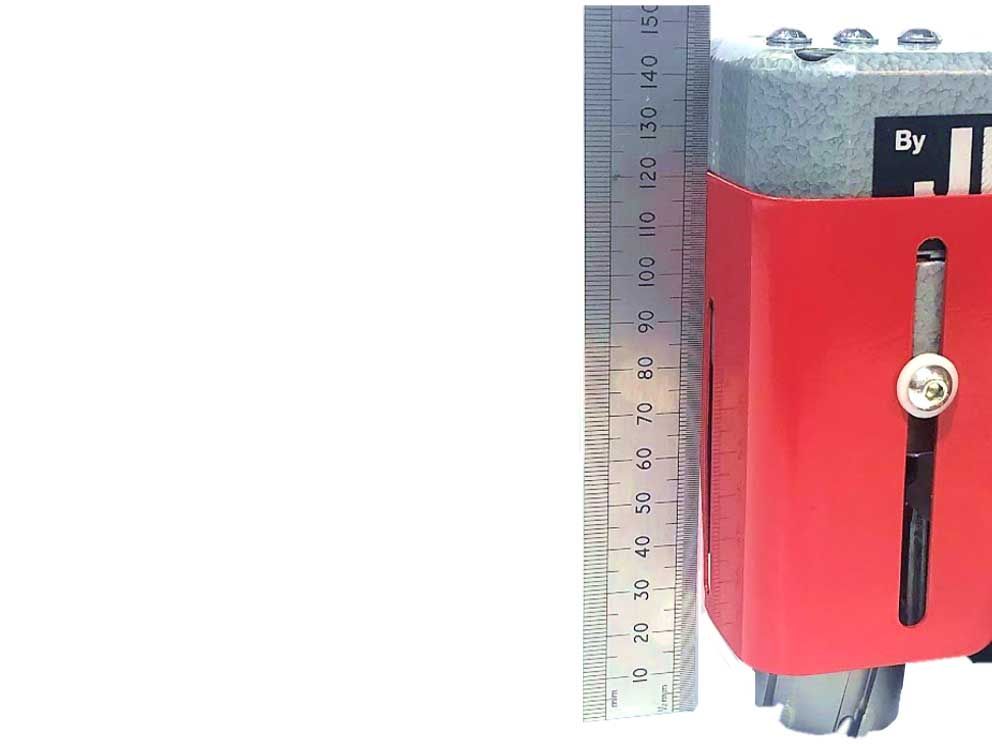

JEI MagBeast ULP – Ultra Low Profile mag drill is the worlds most compact mag drill with a height of only 150mm
The new JEI MagBeast ULP – Ultra Low Profile mag drill is the worlds most compact mag drill with a height of only 150mm
Small in height, with powerful motor and 35mm cutting capacity, perfect for confined spaces and everyday drilling requirements, so you don’t have to compromise.
- Cutting diameter and depth of cut 35 mm
- 1100 W motor
- Countersink up to 30 mm
- Fixed Guard

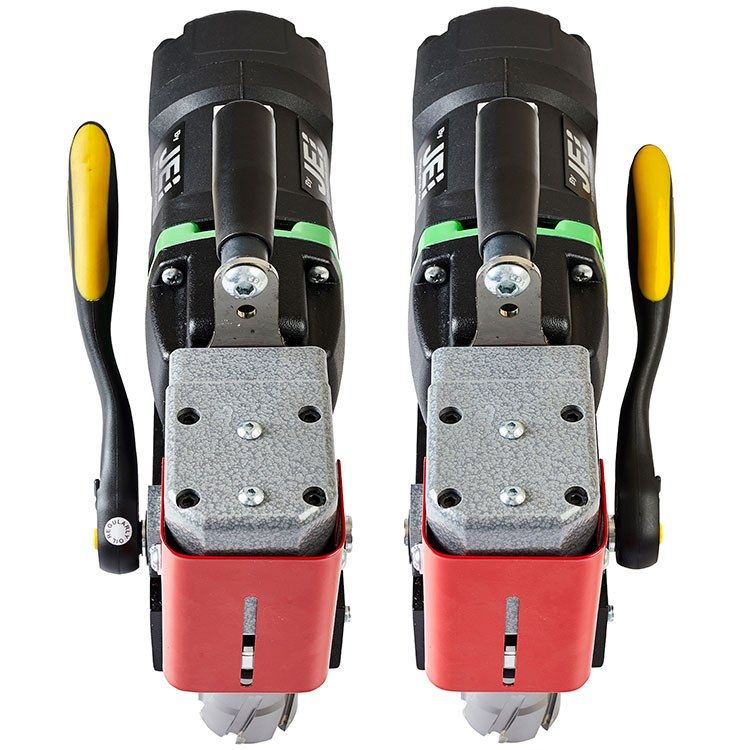

- Ratchet lever operates on both sides for convenience
- Maintenance free – No adjustable slides or exposed motor cords.
- Voltage-110V /240V
Specifications
| Model | Ultra Low Profile |
|---|---|
| Weight | 9kg |
| Cutter Capacity | 35 mm Ø x 35 mm depth of cut |
| Countersink Capacity | 30 mm |
| Spindle | 19 mm |
| Motor | 1100 W |
| RPM | no load 500 RPM loaded 290 RPM |
| No of Geared Speeds | 1 Fixed Speed |
| Height Min/Max | 150 mm |
| Length / Width | 320 x 120 mm |
| Magnetic Base Dimensions | 184 x 85 mm |
| Magnet Deadlift | 1000 kg on 1” Plate (9800 N) |
| Noise Level | < 90dB |
| Vibration Level | < 2.5 m/s2 |
| Shipping Weight | 13 kg |
| Shipping Dimensions | 360 x 350 x 260 mm |
| Voltage / Part No. | 110 V – DRILL-ULP35/1 ~ 240 V – DRILL-ULP35/2 |
