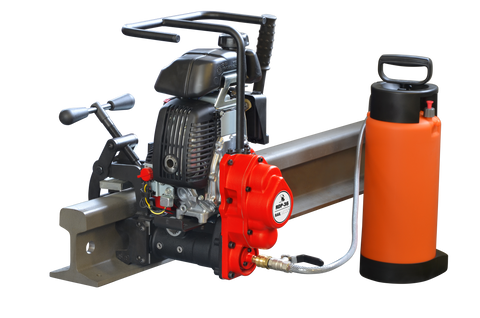

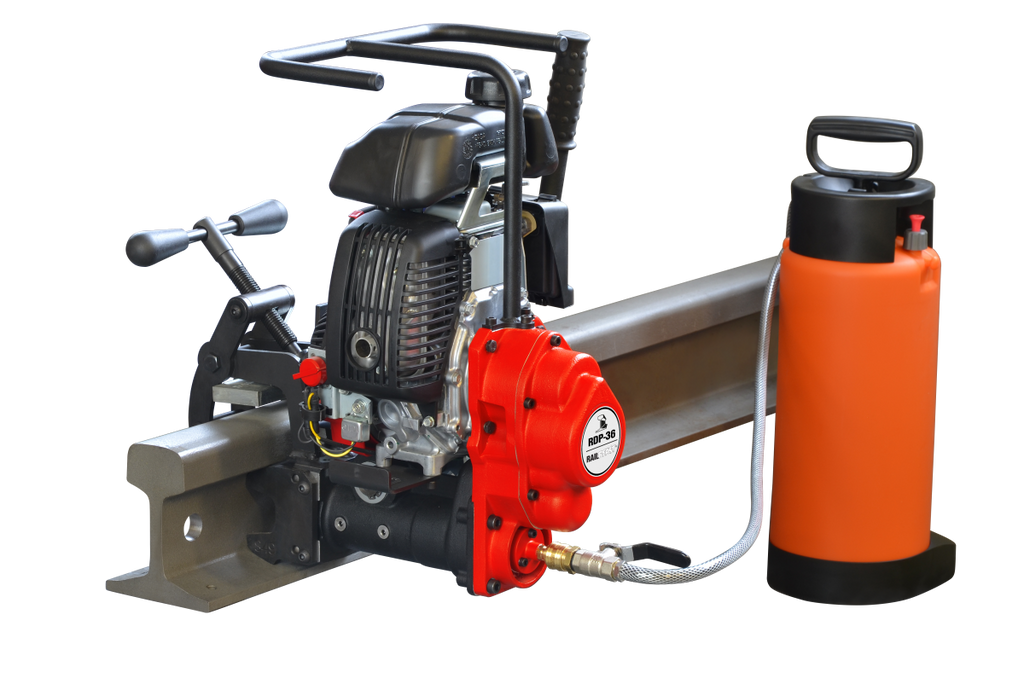

Jei DRILL-RAIL/P RailBeast Petrol RDP-36
Equipped with a Honda 4 stroke engine, powered for rail track drilling
- Fast positioning, quick clamp and instant unlocking mechanisms make it a safety conscious, user-friendly device.
- Fast positioning, quick clamp and instant unlocking mechanisms make it a safety conscious, user-friendly device.
- Rail templates (formers) available which are suitable for any rail profile.
The fast positioning, quick clamp and instant unlocking features on the Rail Petrol make it a safety-conscious, user-friendly device for rail tracks.
Specifications
| Model | RAILBEAST RDP-36, PETROL RAIL DRILLING MACHINE |
|---|---|
| Twist Drill Capacity | 16 mm (5/8") |
| Arbor Bore | 19 mm Weldon shank (3/4") |
| Engine | Honda Engine GXH50, 4 Stroke Petrol Engine |
| Maximum Drilling Capacity With Annular Cutter | 36 mm (1-716") |
| Max Drilling Depth | 30 mm (1-3/16") |
| Max Stroke | 39 mm (1-9/16") |
| Power Consumption | 1500 W |
| Rotational Speed Without Load | 120-280 rpm |
| Rotational Speed With Load | 225 rpm |
| Rail Templates Available | UIC54, UIC60, P50, P65, S49 (specials on request) |
| Rail Hole Positioners Available | UIC54, UIC60, P50, P65, S49 (specials on request) |
