Jei DRILL-TUR35+ Turbo 35+ 110v & 240v
A new economical, lightweight Magnetic Drilling Solution from JEI
Designed for accurate. practical hole making with both TCT and HSS Cutters

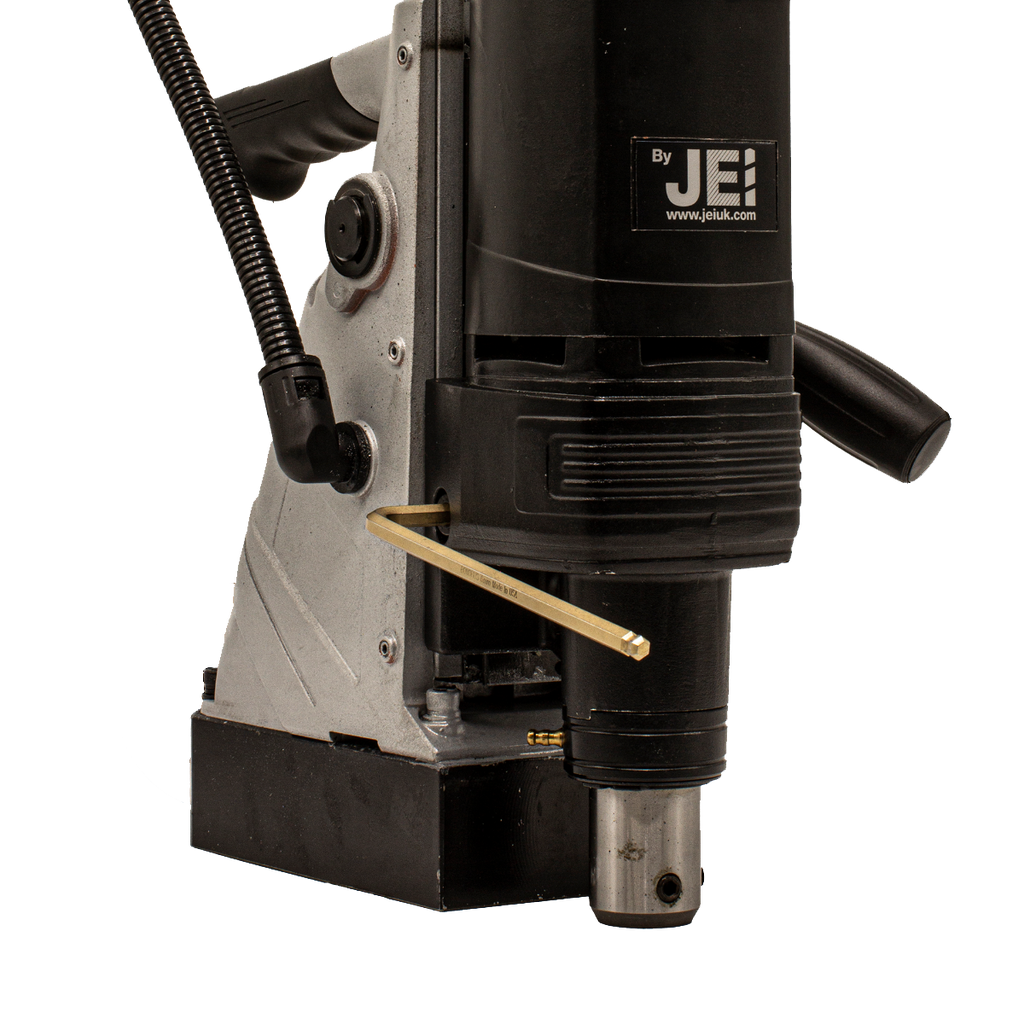

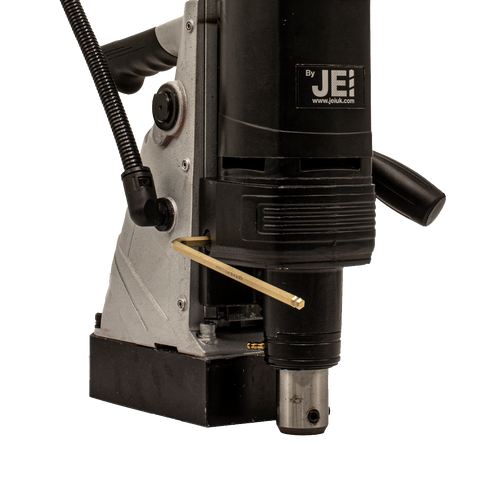

- Fully adjustable motor slide for added versatility of use.

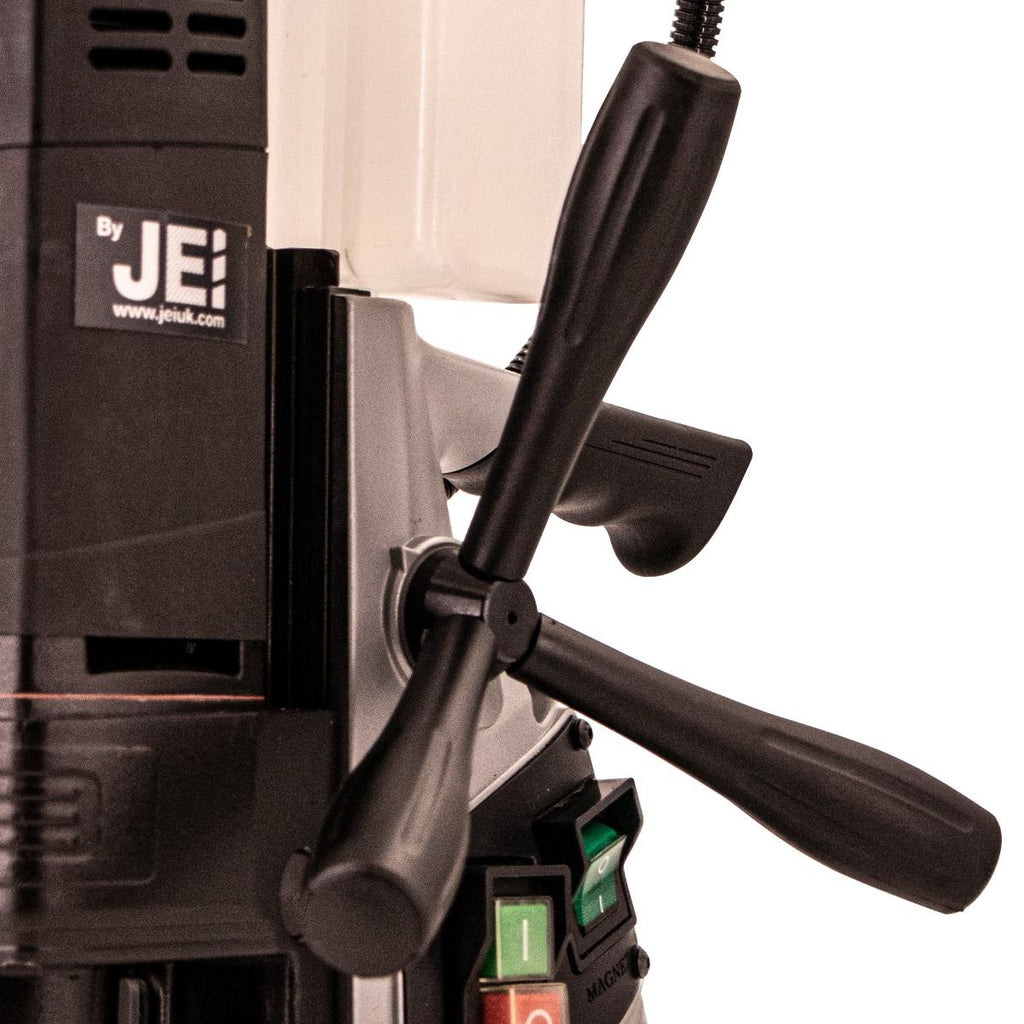

- Modern moulded shape with easy access open handle.
- 1100 Watt Powerful Motor.

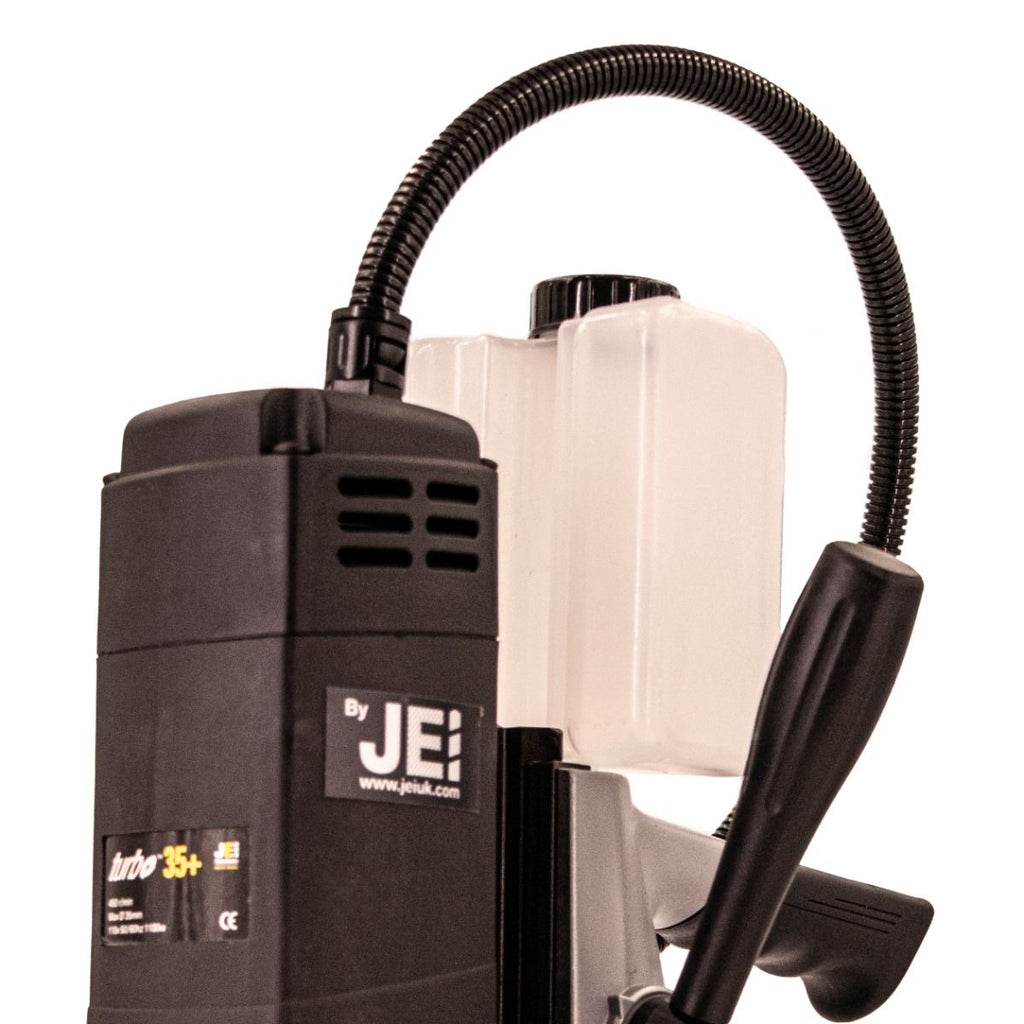

- Large Capacity Coolant tank.

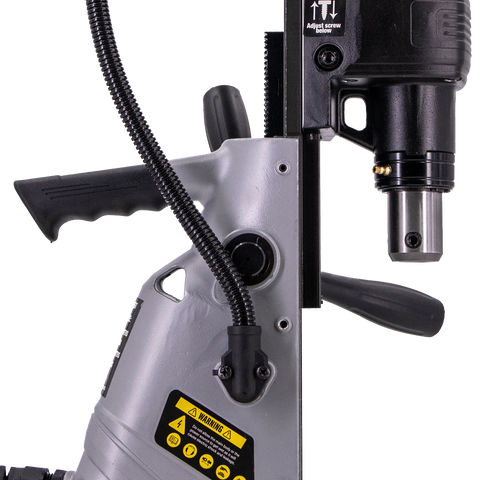

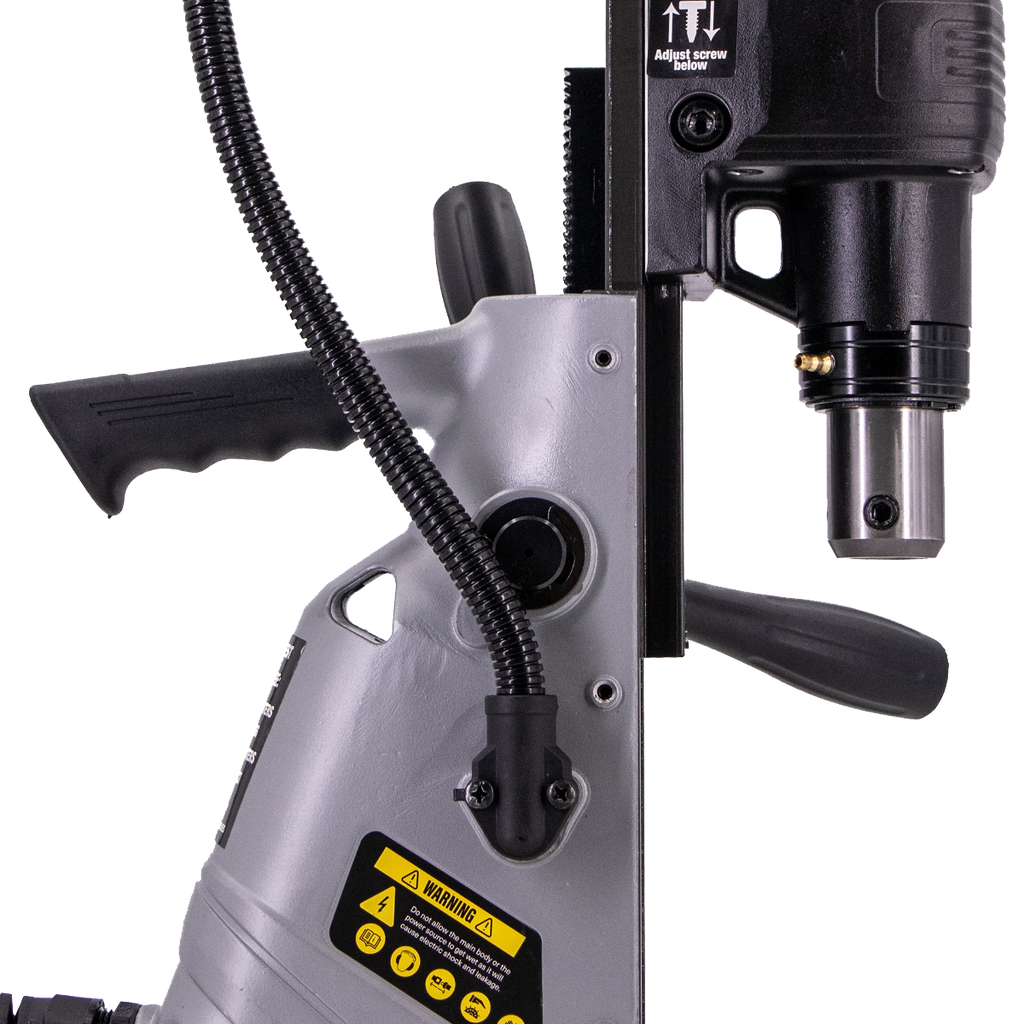

- Maximum stroke of 210mm allowing for drilling depths of up to 150mm.
- Can be used with 13mm chuck and adaptor set (JEICA-13MM/19).

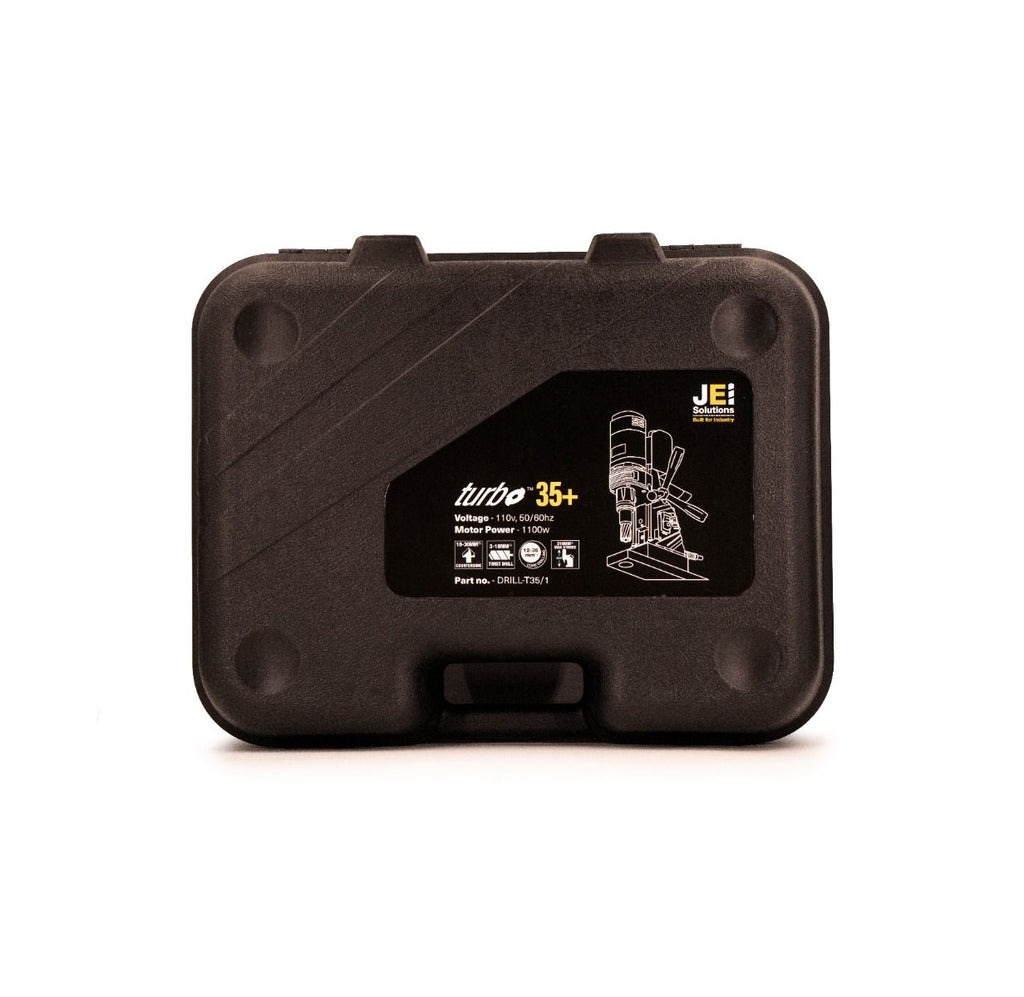

- Supplied in hardened carry case.
Sleek, lightweight and versatile, the Turbo™ 35+ provides a practical hole making solution, with its added benefit of an adjustable motor, providing a longer cutting reach than other machines in its size range.
Specifications
| Model | Turbo™ 35+ |
|---|---|
| Weight | 10.5kg |
| Cutter Capacity | 35mm Ø x 150mm depth of cut |
| Twist Drill Capacity | 13mm (with chuck) |
| Countersink Capacity | 30mm |
| Tapping Capacity | N/A |
| Reaming Capacity | N/A |
| Spindle | 19mm |
| Motor | 1100 watts |
| RPM | No load 720 RPM, loaded 450 RPM |
| No of Geared Speeds | 1 Fixed Speed |
| Height Min/Max | 375/ 580 mm (including cable/gland) |
| Length / Width | 275 mm/181 mm Including Handles |
| Magnetic Base Dimensions | 168 mm x 80 mm |
| Magnet Deadlift | 1000 kg on 1" Plate (9600 N) |
| Noise Level | < 90dB |
| Vibration Level | < 2.5 m/s2 |
| Shipping Weight | 15.8kg |
| Shipping Dimensions | 55 x 45 x 22 cm |
| Voltage / Part No. | 110 V - DRILL-T35/1 / 240 V - DRILL-T35/2 |
