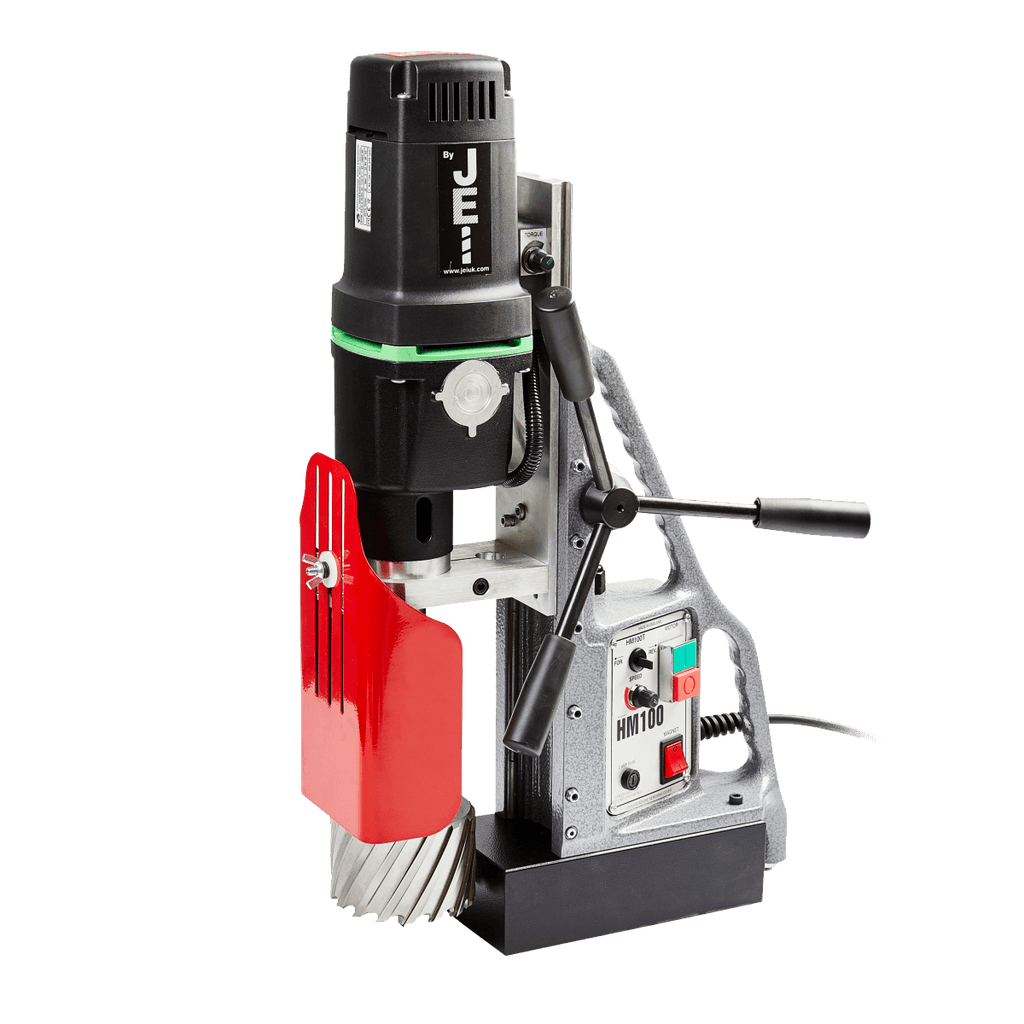

Jei HM100T/HM100TS MagBeast HM100T 110V & 240V
The complete 3MT magnetic drilling and tapping model also capable of cutting, reaming, counterboring and threading holes
- Heavy duty 1800w motor.
- 2 speed variable gearbox with reverse.
- 250mm total drill travel.
- Sleek, ergonomic design.
- Maintenance free twin slide rails.
- Fixed safety guard.

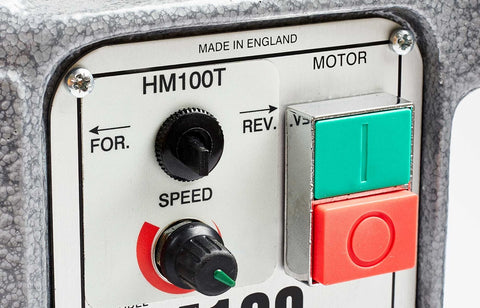

- Simple and effective control panel.
- Powerful electromagnetic basel.
- Optional 360º swivel base.
Capable of cutting, reaming, counterboring and tapping holes, the MagBeast® HM100T is the perfect all-around choice for a variety of applications using simple and efficient electronic controls.
| Model | HM100T / HM100TS SWIVEL BASED MODEL |
|---|---|
| Weight | 23.5 kg / 27kg |
| Cutter Capacity | 100 mm Ø x 6” depth of cut |
| Twist Drill Capacity | 19 mm with 3MT Chuck ~ 32 mm with 3MT Twist Drill |
| Countersink Capacity | 55 mm |
| Tapping Capacity | M30 |
| Reaming Capacity | 39mm |
| Spindle | MT3 |
| Motor | 1800 W |
| RPM | 2 Variable Speeds (torque control) 60–140 / 200–470 |
| No of Geared Speeds | 2 Variable Speeds |
| Height Min/Max | 450 / 700 mm |
| Length / Width | 345 x 190 mm |
| Magnetic Base Dimensions | 212 x 102 mm |
| Magnet Deadlift | 2050 kg on 1” Plate (20100 N) |
| Shipping Weight | 28.65 kg / 32 kg |
| Shipping Dimensions | 571 x 450 x 250 mm |
| Voltage / Part No. | 110 V – DRILL-HM100T ~240 V – DRILL-HM100T/2 |
