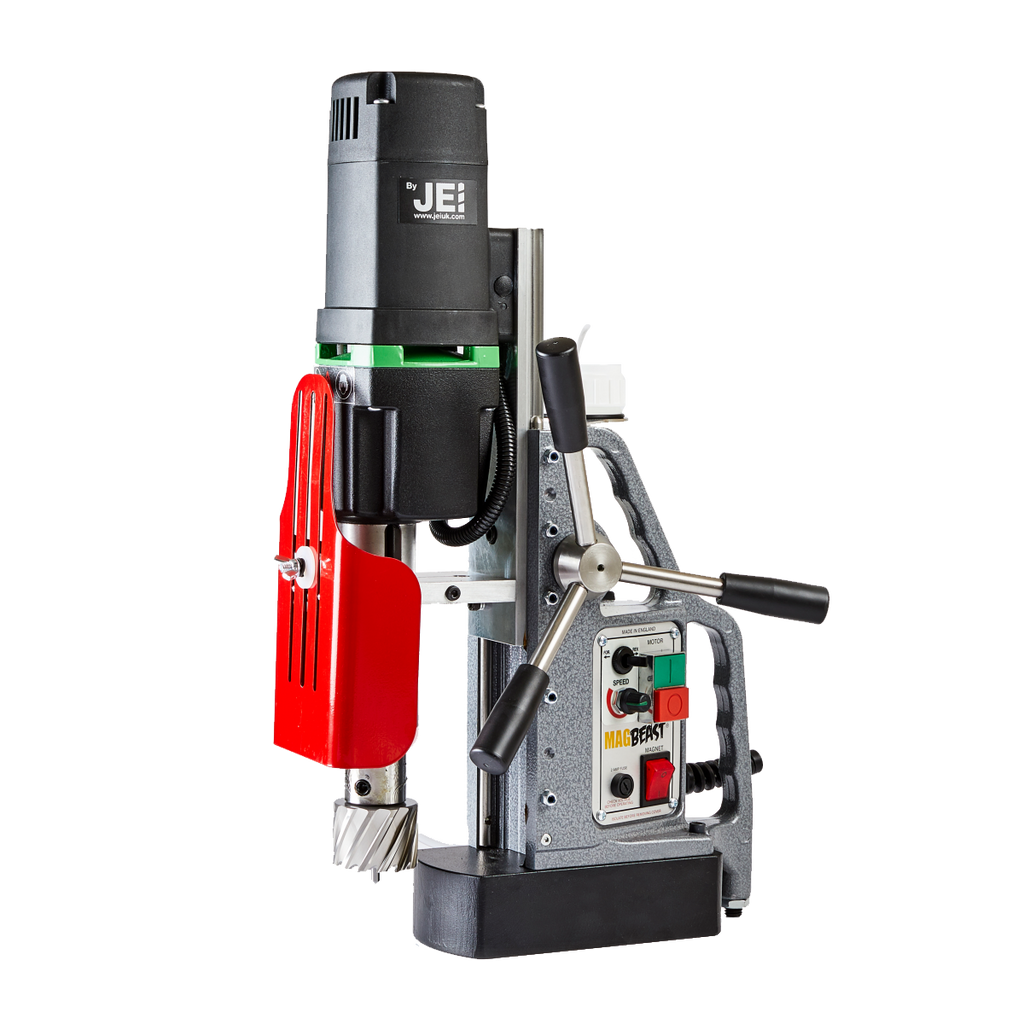

Jei HM50T/HM50TS MagBeast 110V & 240V
A heavy duty 2 morse taper drilling machine, Featuring variable speed and reverse function

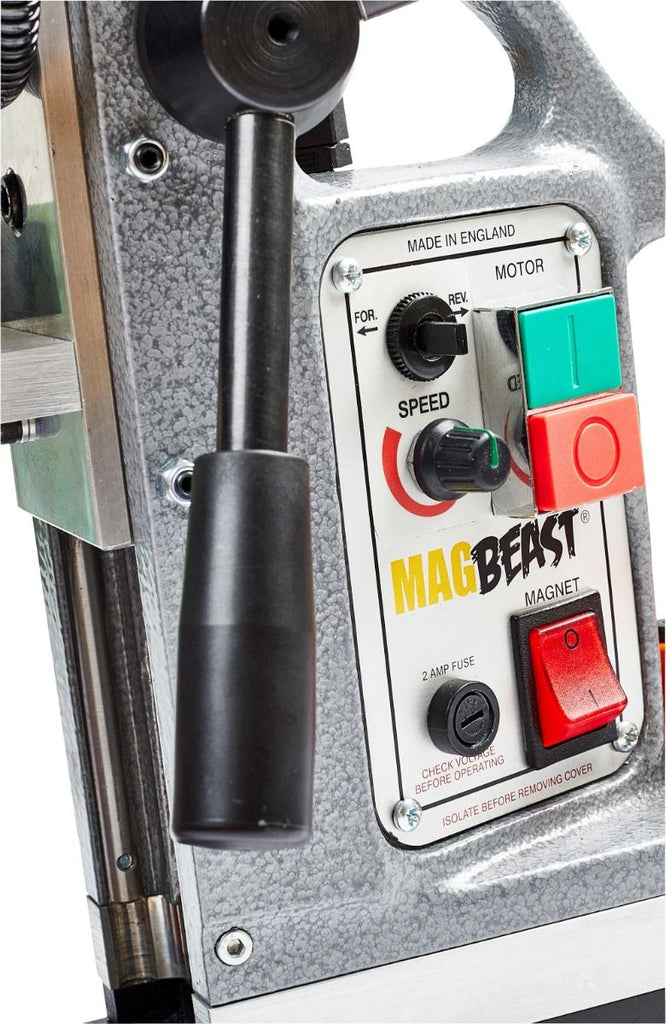

- Variable speed, high torque motor. Ideal for countersinking and reaming.

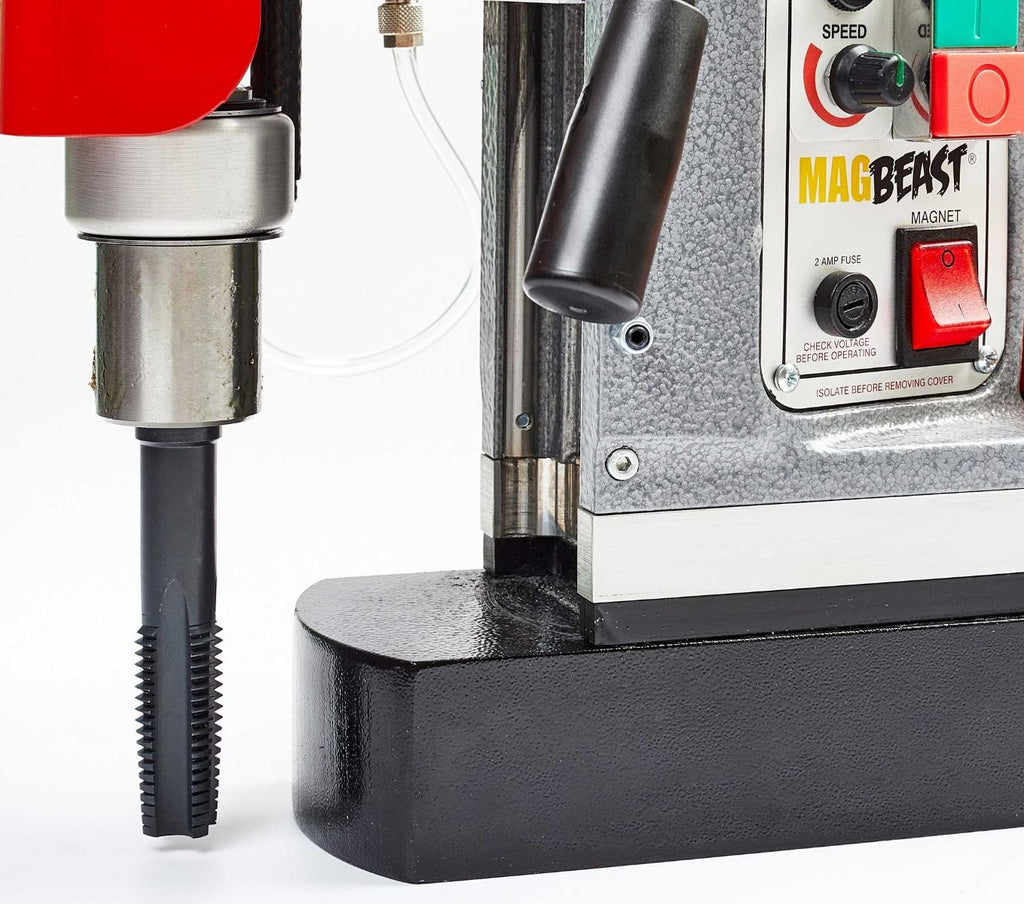

- Reverse speed motor ideal for threading (tapping) holes.
- Lightweight. Only 14kg yet can cut up to 50 mm diameter.

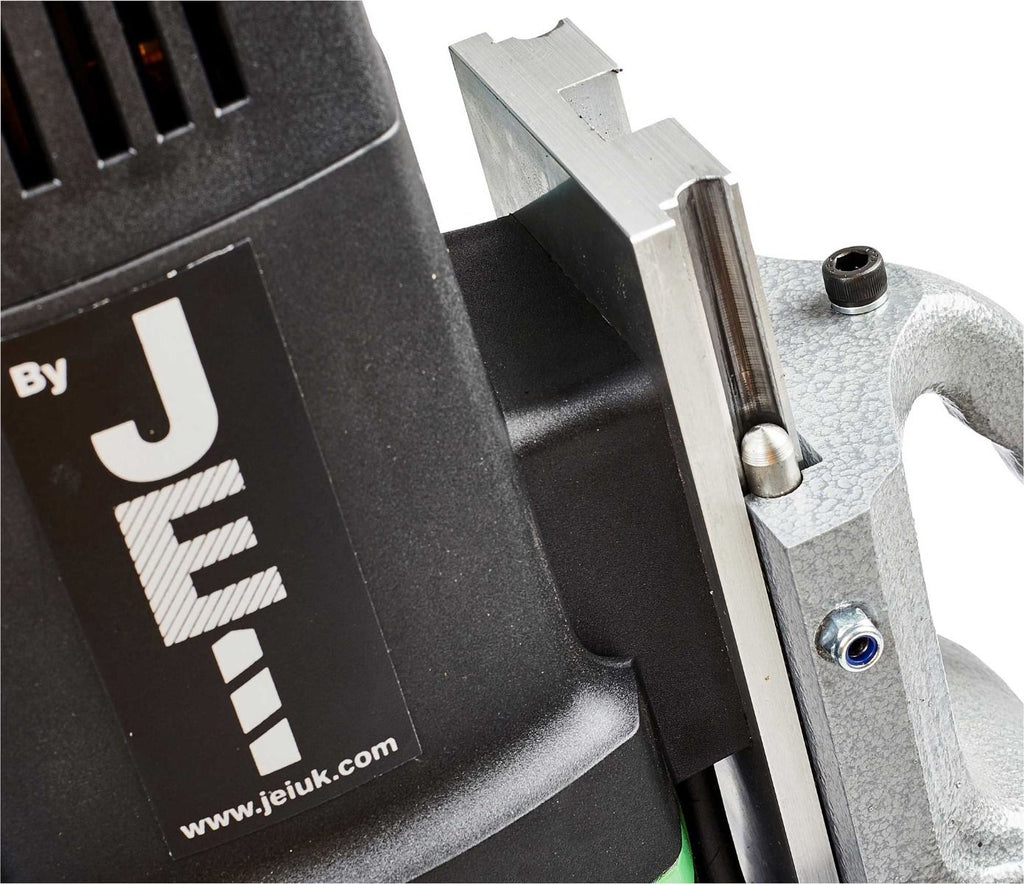

- Maintenance friendly twin slide rails.
- No wearing parts and adjustment free operation.
- Spoke handles can be fitted on left or right side for operator convenience (applies to all HM50 models).
- Optional 360º Swivel Base.
A heavy-duty 2 morse taper drilling machine, the MagBeast® HM50T is ideal for countersinking and reaming. A lightweight option, weighing at only 14kg, that can cut up to 50mm in diameter.
Specifications
| Model | HM50T / HM50TS (WITH SWIVEL BASE) |
|---|---|
| Weight | 14 kg / 16.5kg |

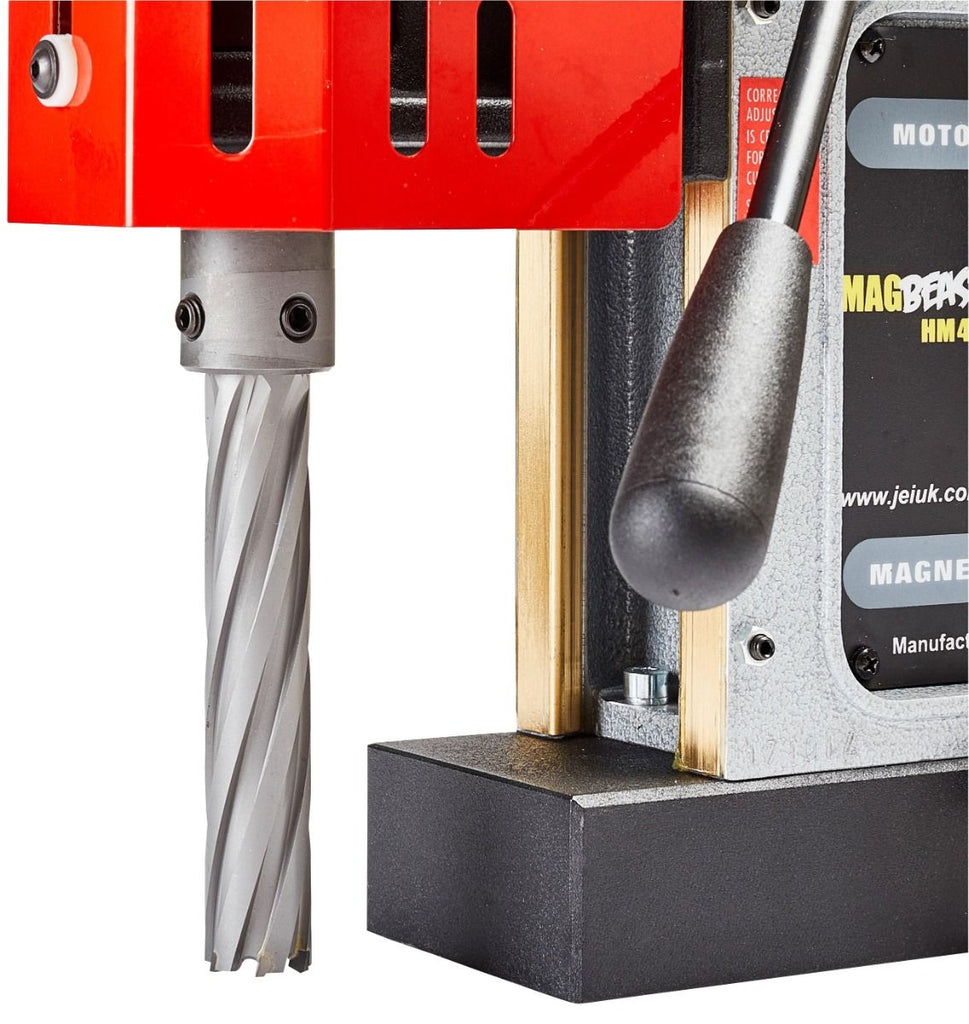

| Cutter Capacity | 50 mm Ø x 4” depth of cut |

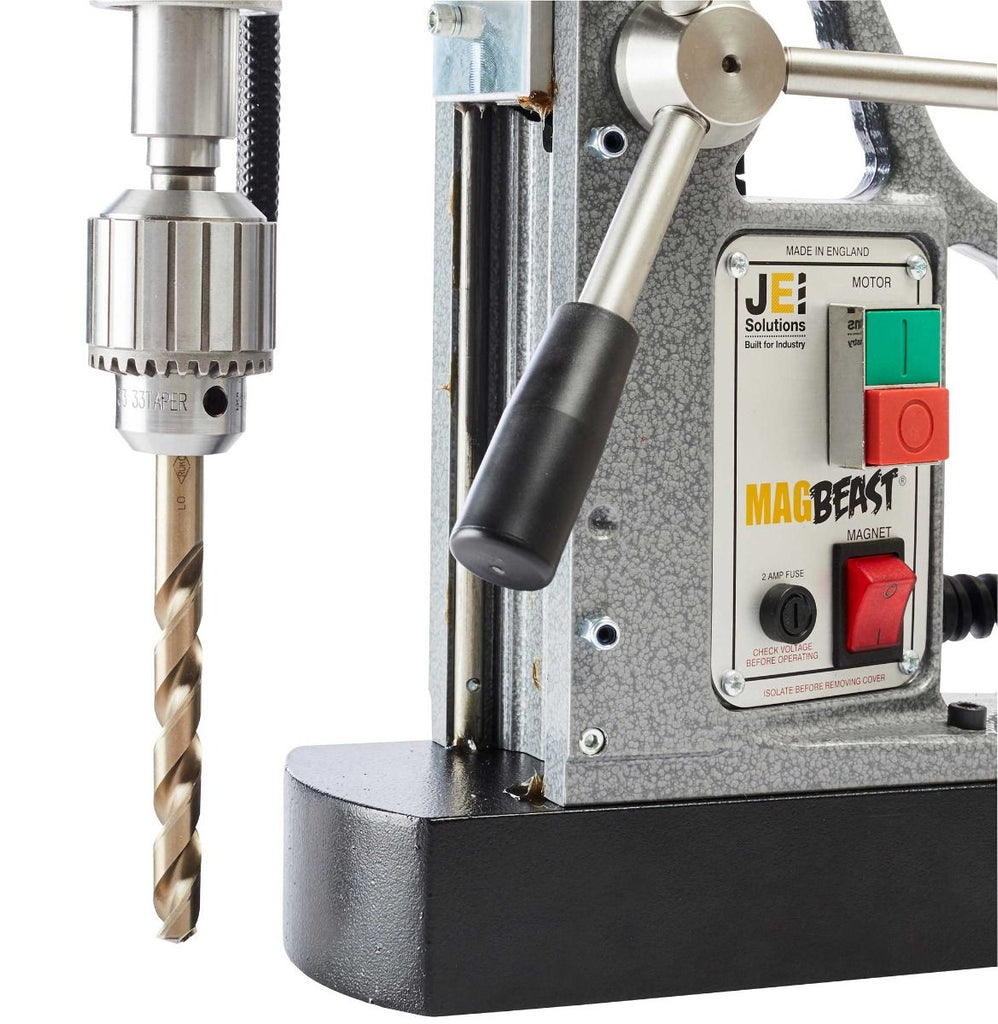

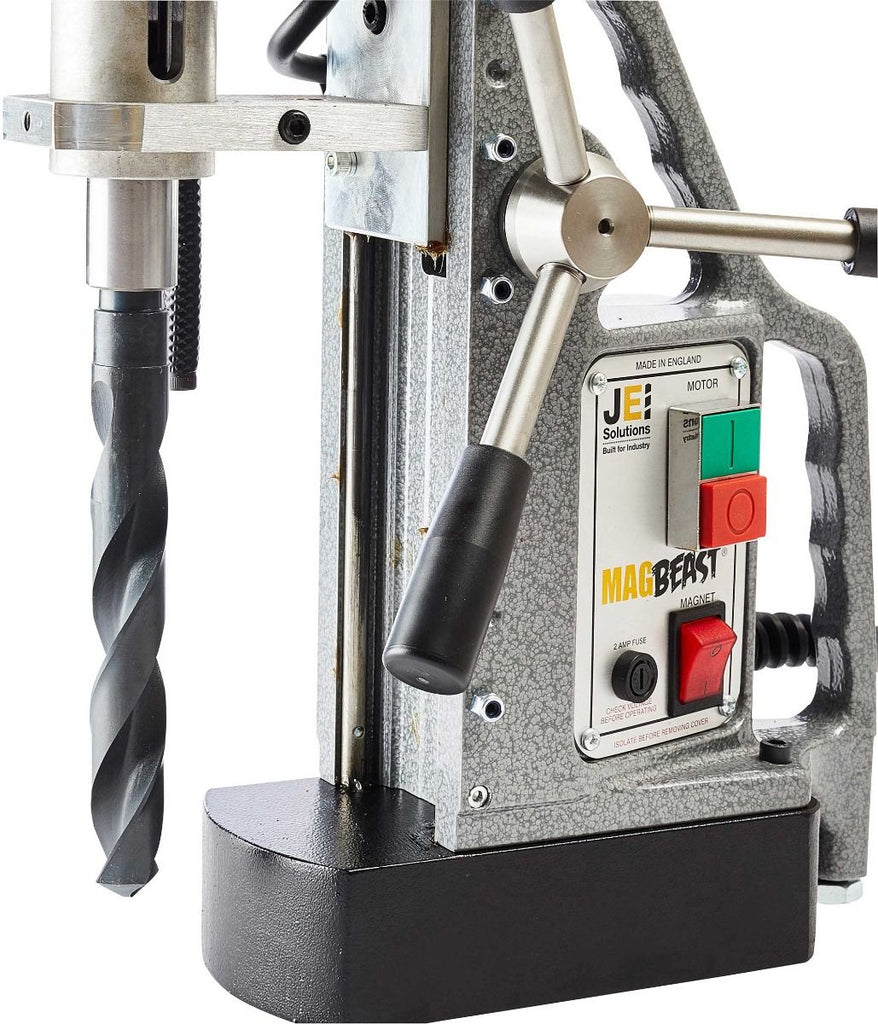

| Twist Drill Capacity | 13 mm with 2MT Chuck ~ 23 mm with 2MT Twist Drill |

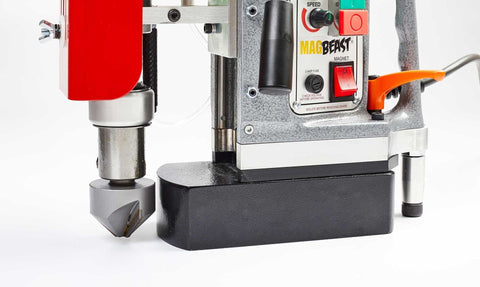

| Countersink Capacity | 40mm |
| Tapping Capacity | M20 |

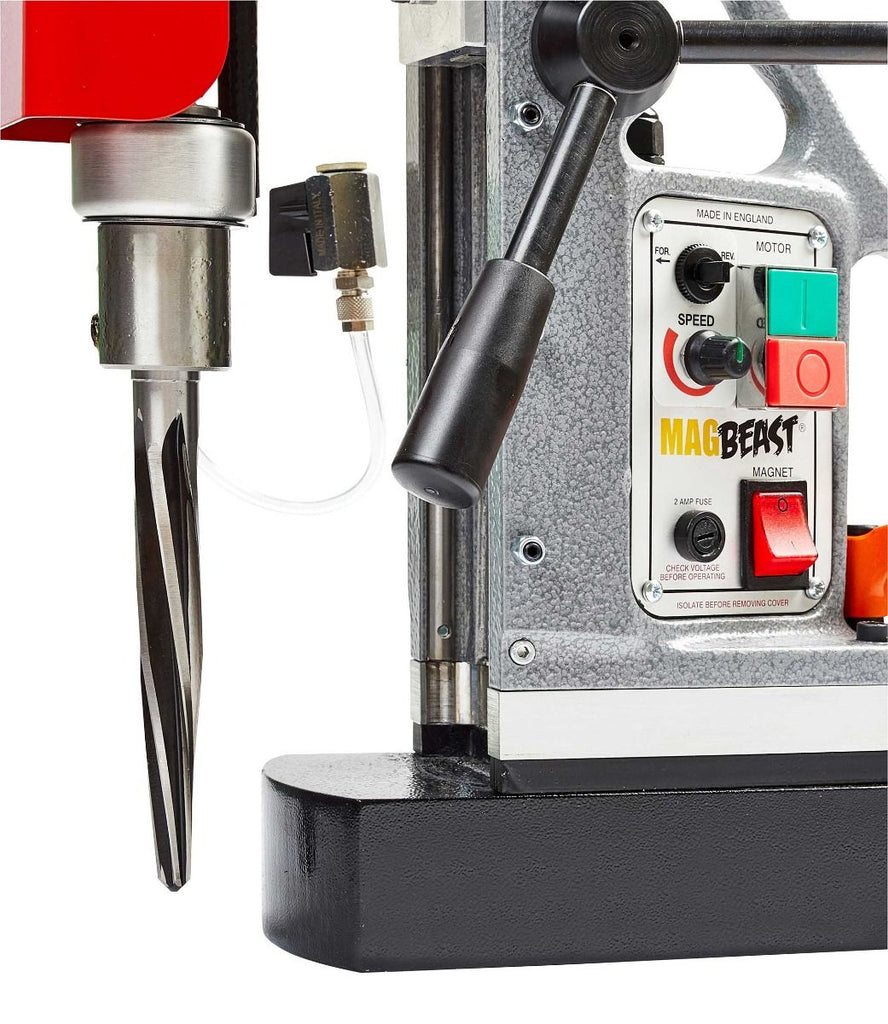

| Reaming Capacity | 22 mm (19 mm shank) |
| Spindle | MT2 |
| Motor | 1150 W (110 V) 1250 W (240 V) |
| RPM | 2 Variable Speeds, 180–430, 100–250 RPM |
| Height Min/Max | 380 / 560 mm Swivel version: 390 / 590 mm |
| Length / Width | 280 x 170 mm |
| Magnetic Base Dimensions | 90 x 180 mm |
| Magnet Deadlift | 1250 kg on 1” Plate (12000 N) |
| Noise Level | < 90dB |
| Vibration Level | < 2.5 m/s2 |
| Shipping Weight | 19 kg / 22kg |
| Shipping Dimensions | 490 x 380 x 200 mm |
| Max Stroke | 180 mm / 200mm |
| Voltage / Part No. | 110 V – DRILL-HM50T ~ 240 V – DRILL-HM50T/2 |
