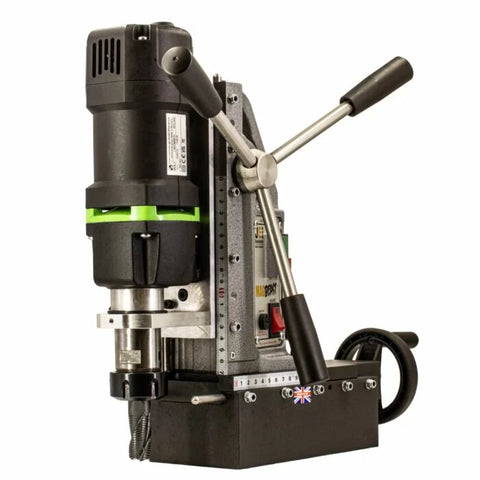

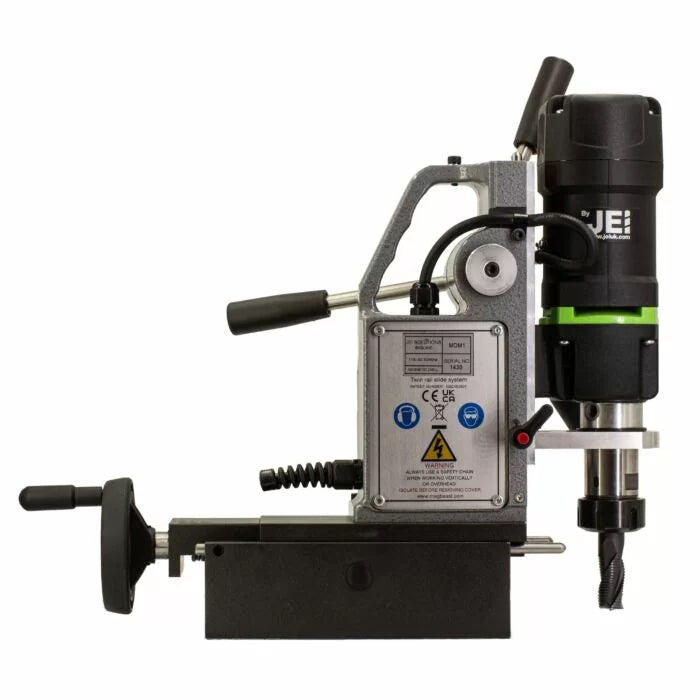

Jei MAGSLOT 20X Portable Magnetic Milling Machine
A unique solution for Milling holes in steel, on site, or in the workplace
- Horizontal Single-axis feed, allowing 90 mm of milling travel per operation. With patented slide rails to ensure minimal vibration and steady cut.
- Weighs only 20kg. Making it portable and convenient to bring to the workpiece in any position.
- Integrally fixed Milling collet chuck (size ER32). Conveniently accepts end mills between M3-M20 Ø.
- Optional additional 19 mm shank Annular broach cutter holder. Converts machine to a magnetic drill to cut round holes up to 40 mm Ø.
- Lockable downward motor slide. Fixes the milling tool to desired depth.
Technical Data
Weight: 20 kg
Motor Power: 1100 w
RPM: 720 RPM (no load) 450 RPM (with load)
Milling Chuck Type: ER32
Endmill Cutter Range: M3 - M20
Maximum Horizontal (slot) feed in one pass: 90 mm
Maximum Vertical Travel: 190 mm
Maximum Core Cutter Capacity: 40 mm Ø
Magnetic Holding Power: 2500 kg on 1” Plate
Magnetic Base Dimensions L x W: 215 mm x 118 mm
Machine Dimensions L x W: 420 mm x 70 mm (including spoke handles)
Vibration Level: < 2.5 m/s2
Height (Min/Max): 340 mm / 530 mm
Part no. 110v: JEI-MAGSL/1
