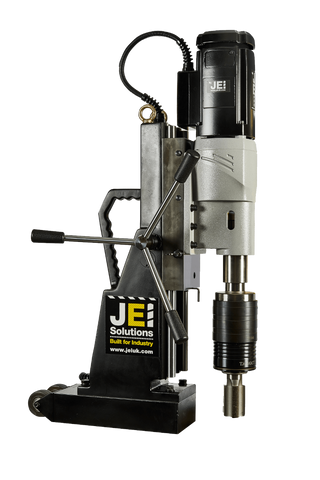

Jei MagBeast HM200T (MagBeast 5)110 V – DRILL-HM200T/1 ~ 240 V – DRILL-HM200T/2
The world’s largest capacity portable magnetic drilling and tapping machine, designed to solve the most challenging of applications
- Commanding 2850W, high torque motor. Delivers maximum power to produce up to 200 mm Ø holes.
- Reversible with multi speeds.

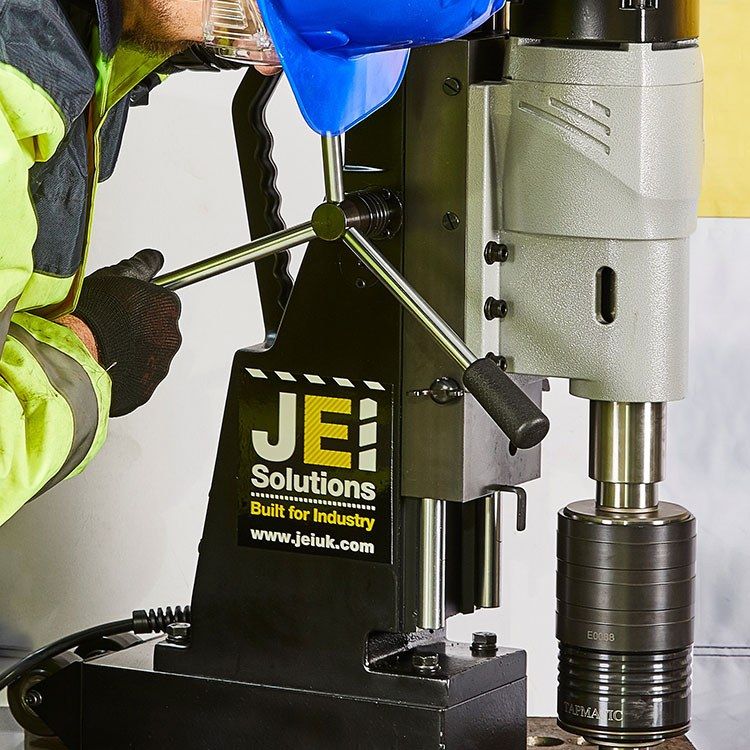

- Ability to tap holes up to M52.
- 455mm of drill travel. Can be adapted for many special projects..
- Optional single phase 110 V or 240 V operation. Can be used on any site environment.
- Twin slide rails. Ensuring maintenance free operation and minimum hole tolerance.
- Soft start motor switch.
- Protects motor and tool during start up operation.
- Overload and clutch control.
- Cuts out motor under excessive load, protecting tool, gearbox and motor against incidental damage.

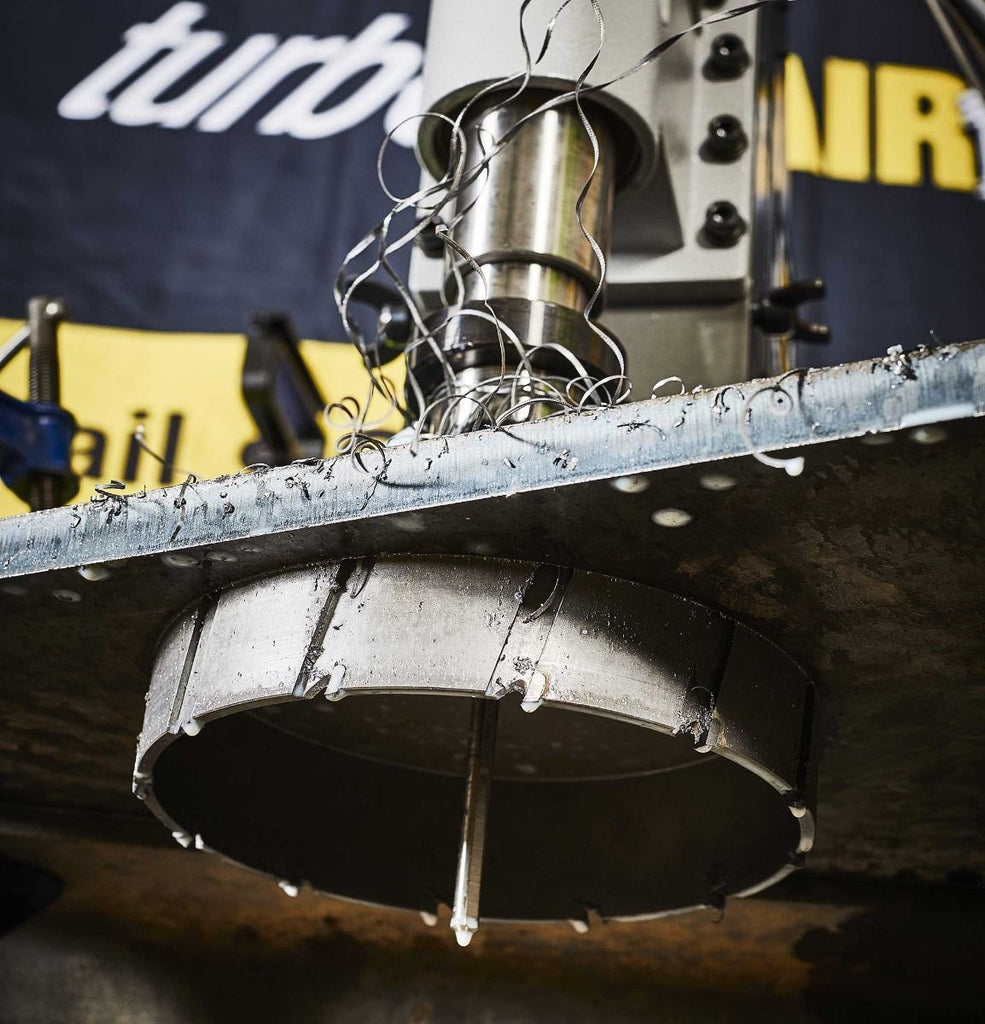

Designed to solve the most challenging of applications, the Magbeast HM200T (MagBeast® 5) offers a commanding 2850W, high torque motor that delivers maximum power to produce an incredible 200mm cutting capacity.
Specifications
| Model | Magbeast HM200T (MagBeast® 5MT) |
|---|---|
| Weight | 52kg |
| Cutter Capacity | 200 mm Ø |
| Twist Drill Capacity | 52 mm Ø |
| Countersink Capacity | 110 mm Ø |
| Tapping Capacity | M52 |
| Reaming Capacity | 52mm |
| Arbor Bore | 1-1/4” |
| Spindle | MT5 |
| Motor | 2850 W |
| RPM | 40/60 90/130 170/240 380/545 RPM |
| No of Geared Speeds | 4 Multi Speed |
| Height Min/Max | 730 / 955 mm |
| Length / Width | 455 x 280 mm |
| Magnetic Base Dimensions | 295 x 140 x 70 mm |
| Magnet Deadlift | 2300 kg on 1” Plate (26,800 N) |
| Noise Level | < 90dB |
| Vibration Level | < 2.5 m/s2 |
| Shipping Weight | 70 kg |
| Shipping Dimensions | 790 x 490 x 240 mm |
| Voltage / Part No. | 110 V – DRILL-HM200T/1 ~ 240 V – DRILL-HM200T/2 |
