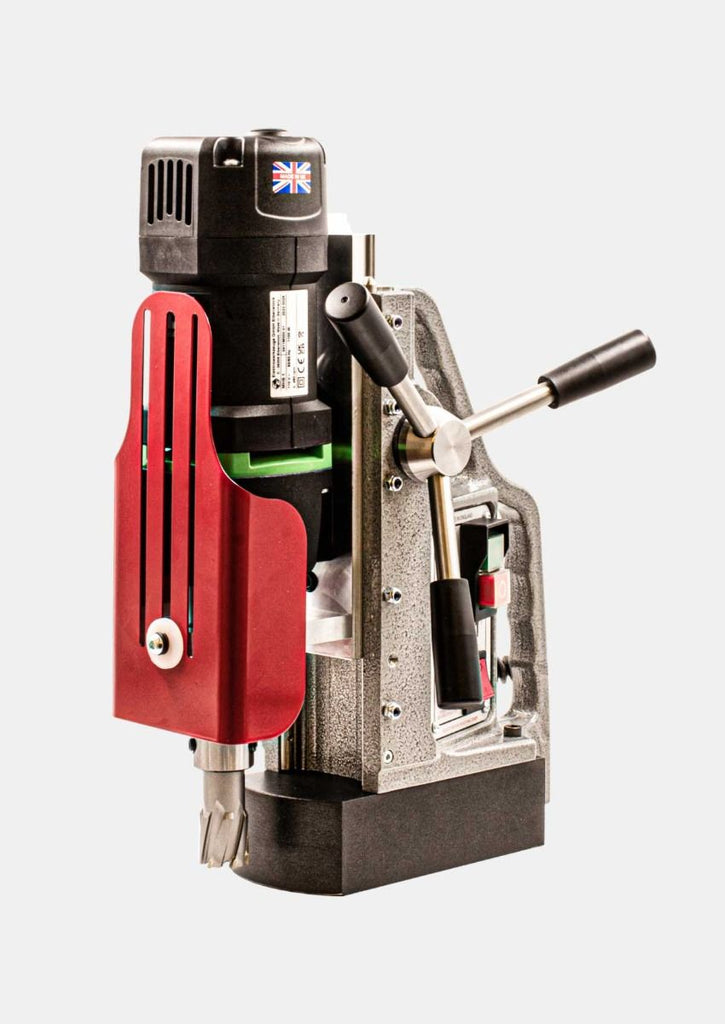

Jei MagBeast HM40EX 110V & 240V
A lightweight and powerful magnetic drilling machine for maximum performance

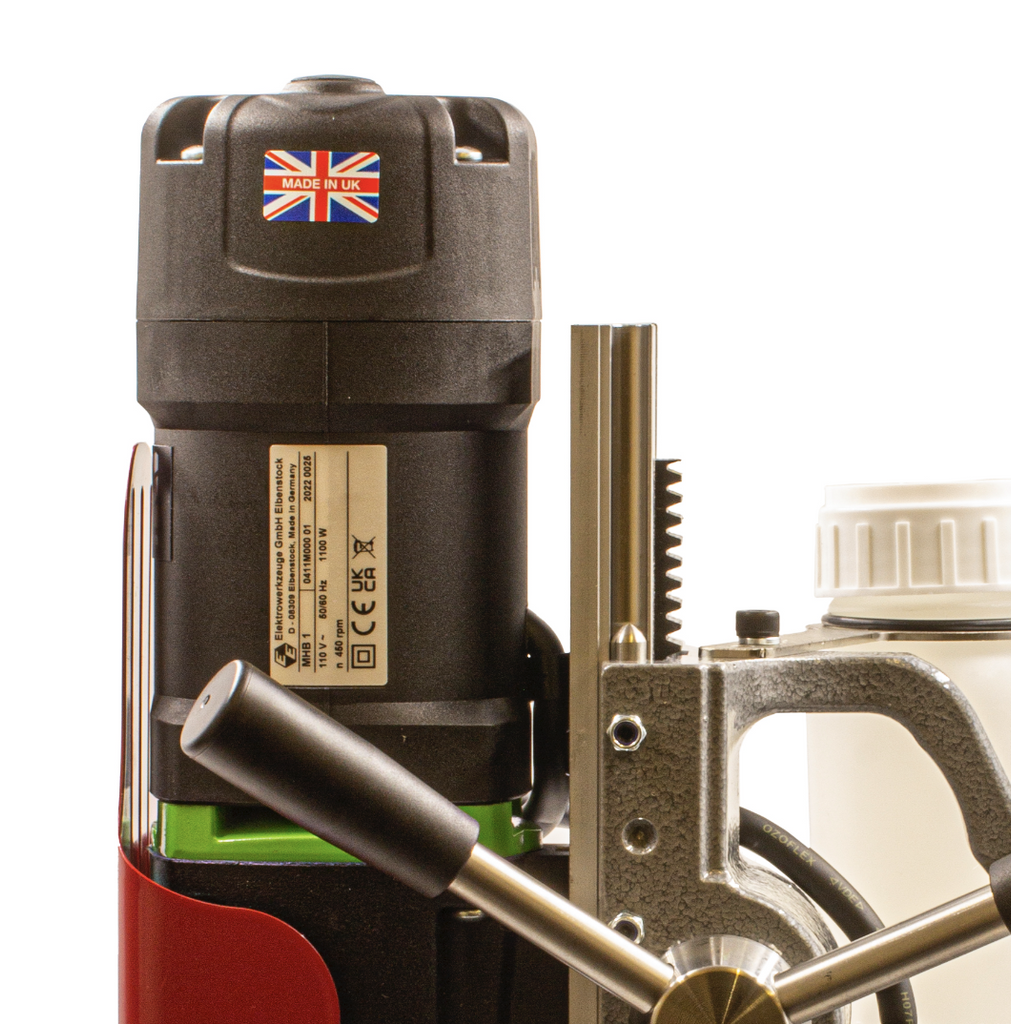

- Powerful 1100 W motor – enabling 40 mm cutter capacity.Weighs only 11.5 kg with a 40 mm cutter capacity – unrivalled weight to cutting capacity ratio.
- 170mm total drill travel – facility to use extra-long cutters.
- Maintenance friendly twin slide rails – no wearing parts and adjustment free operation.
- Maximum stroke of 210mm allowing for drilling depths of up to 150mm.
- Spoke handles can be fitted on left or right side for operator convenience.

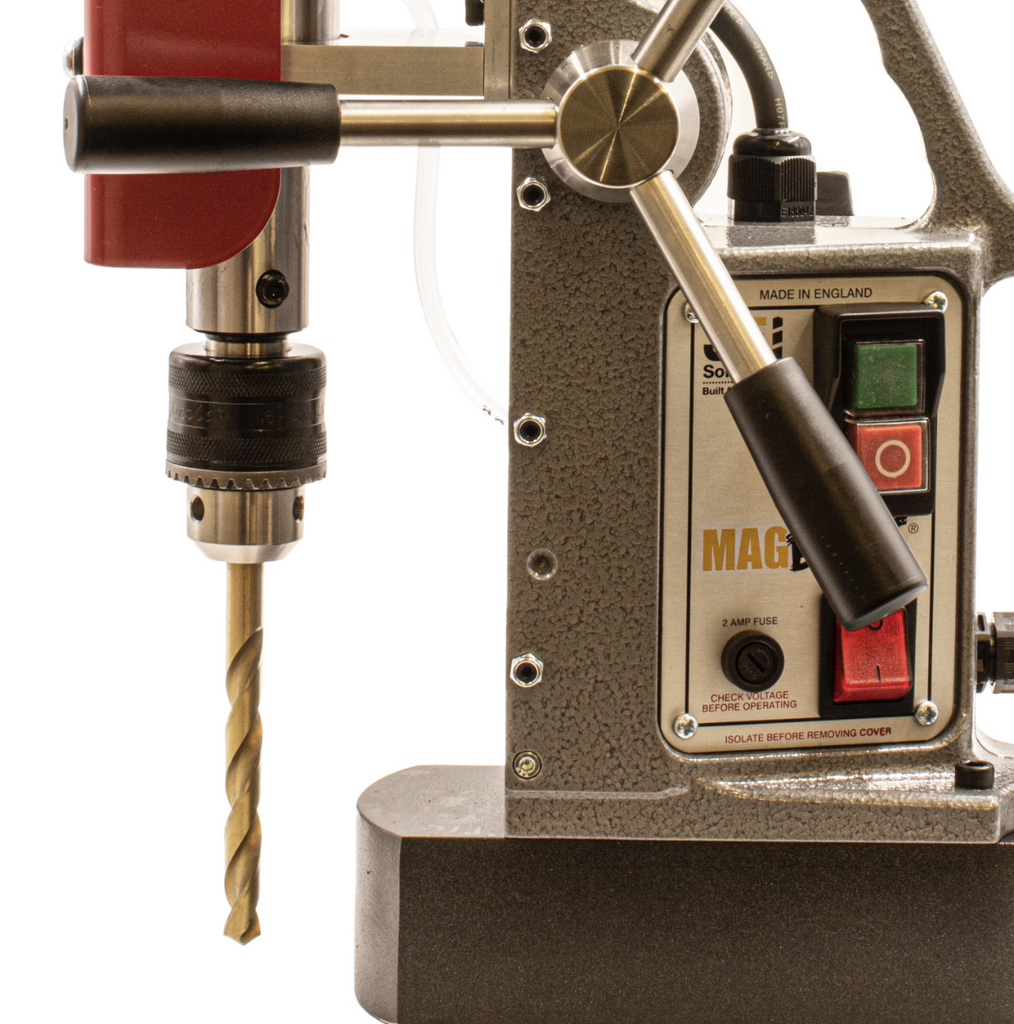

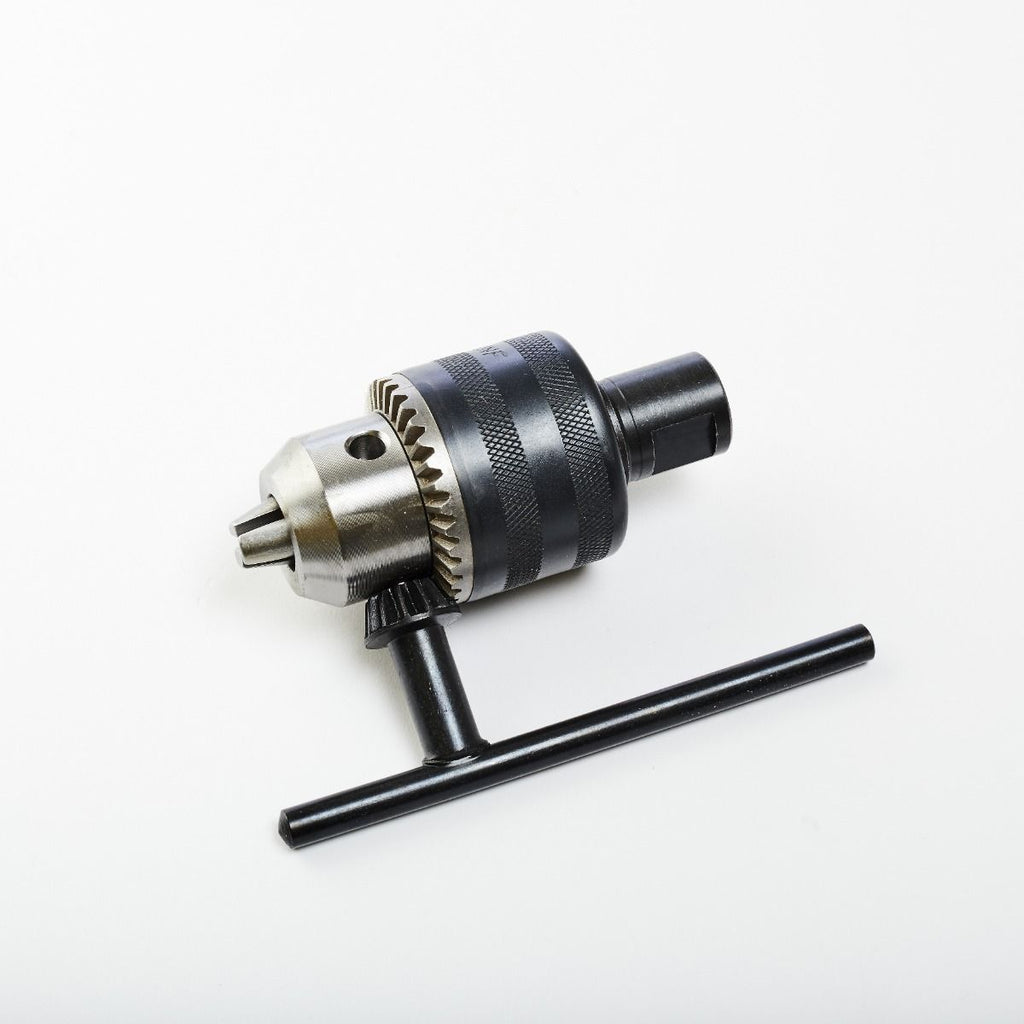

- Easily adapted to use with additional chuck and adaptor kit to accept twist drills up to 13 mm (part no - JEICA-13MM/19).
Rely on the expert capabilities of the MagBeast® HM40EX. Featuring extra long drill travel, ideal for 100 mm long cutters, and a 40mm diameter cutting capacity.
Specifications
| Model | HM40EX / HM40EX SWIVEL |
|---|---|
| Weight | 11.5 kg / 12kg |
| Cutter Capacity | 40 mm Ø x 110 mm depth of cut |
| Twist Drill Capacity | 13 mm Ø with optional attachment (part no - JEICA-13MM/19) |
| Countersink Capacity | 40 mm |
| Spindle | 19 mm |
| Motor | 1100 W |
| Height Min/Max | 320 / 500 mm Swivel: 330 / 510 mm |
| Length / Width | 280 x 165 mm |
| Magnetic Base Dimensions | 85 x 170 mm |
| Magnet Deadlift | 1100 kg on 1” Plate (10750 N) |
| Noise Level | < 90dB |
| Vibration Level | < 2.5 m/s2 |
| Shipping Weight | 16 kg/ 16.5kg |
| Shipping Dimensions | 460 x 360 x 180 mm Swivel: 470 x 360 x 180 mm |
| Voltage / Part No. | 110 V - DRILL-HM40EX/1 240 V - DRILL-HM40EX/2 |
