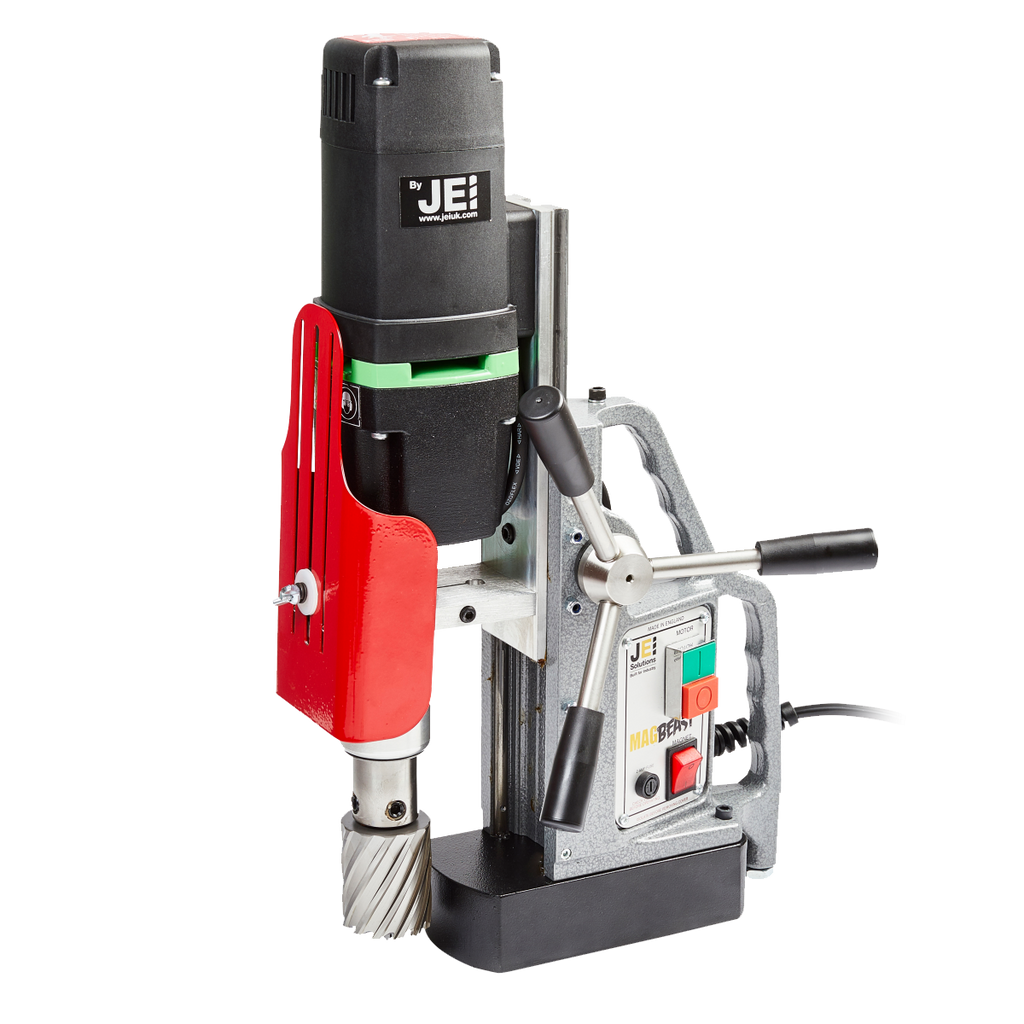

Jei MagBeast HM50/HM50S 110V & 240V
A durable, dependable heavy duty 2 morse taper drilling machine.
Designed for accurate. practical hole making with both TCT and HSS Cutters
- Heavy duty 1150 W motor – enables larger cutting capacity.
- Weighs only 14 kg with a 50 mm cutter capacity – unrivalled weight to cutting capacity ratio.
- 150mm total drill travel – facility to use extra-long cutters.
- Maintenance friendly twin slide rails – no wearing parts and adjustment free operation.
- Spoke handles can be fitted on left or right side for operator convenience (applies to all HM50 models).

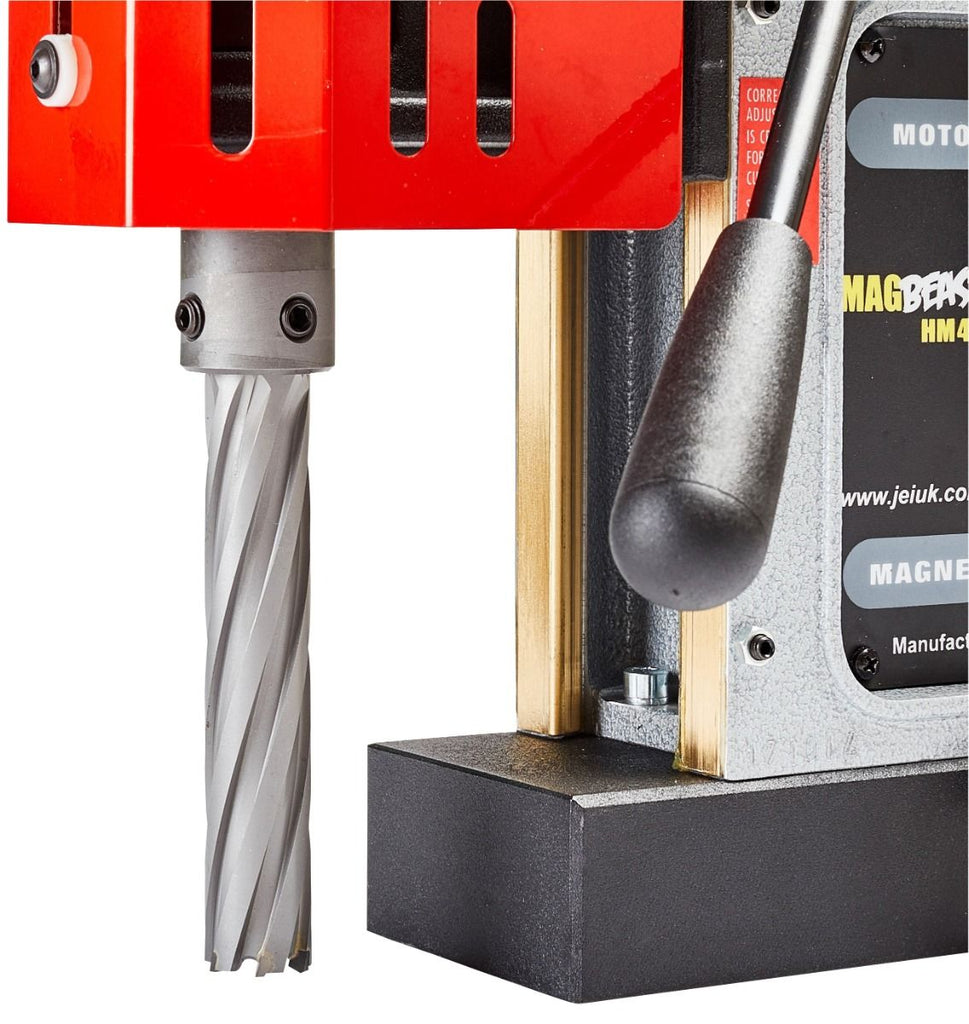

Rely on the expert capabilities of the MagBeast® HM50. Featuring extra long drill travel, ideal for 100 mm long cutters, and a 50mm diameter cutting capacity.
Specifications
| Model | HM50 / HM50S (with Swivel Base) |
|---|---|
| Weight | 14 kg / 16.5kg |
| Cutter Capacity | 50 mm Ø x 4” depth of cut |

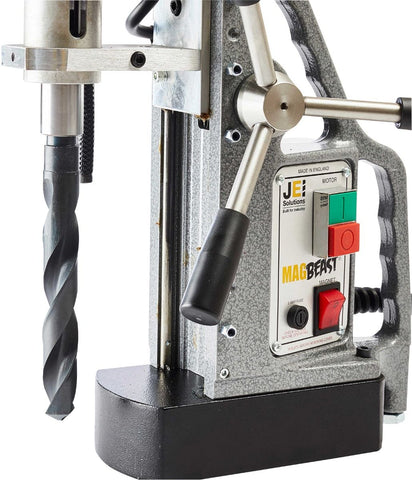

| Twist Drill Capacity | 13 mm with 2MT Chuck / 23 mm with 2MT Twist Drill |
| Countersink Capacity | 40 mm |
| Reaming Capacity | 22 mm (19 mm shank) |
| Spindle | MT2 |
| Motor | 1150 W |
| RPM | No load 465/720 RPM Loaded 250/450 RPM |
| Height Min/Max | 380 / 560 mm Swivel version: 390 / 590 mm |
| Length / Width | 280 x 170 mm |
| Magnetic Base Dimensions | 90 x 180 mm |
| Magnet Deadlift | 1250 kg on 1” Plate (12000 N) |
| Noise Level | < 90dB |
| Vibration Level | < 2.5 m/s2 |
| Shipping Weight | 18.15 kg / 20.5 kg |
| Shipping Dimensions | 490 x 380 x 200 mm / 490 x 380 x 200 mm |
| Max Stroke | 180 mm /200mm |
| Voltage / Part No. | 110 V - DRILL-HM50 / 240 V - DRILL-HM50/2 |
