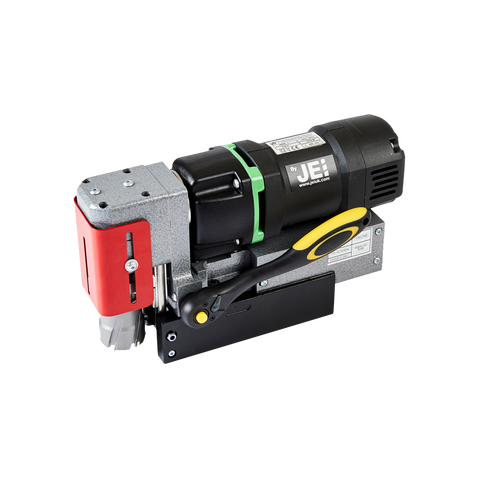

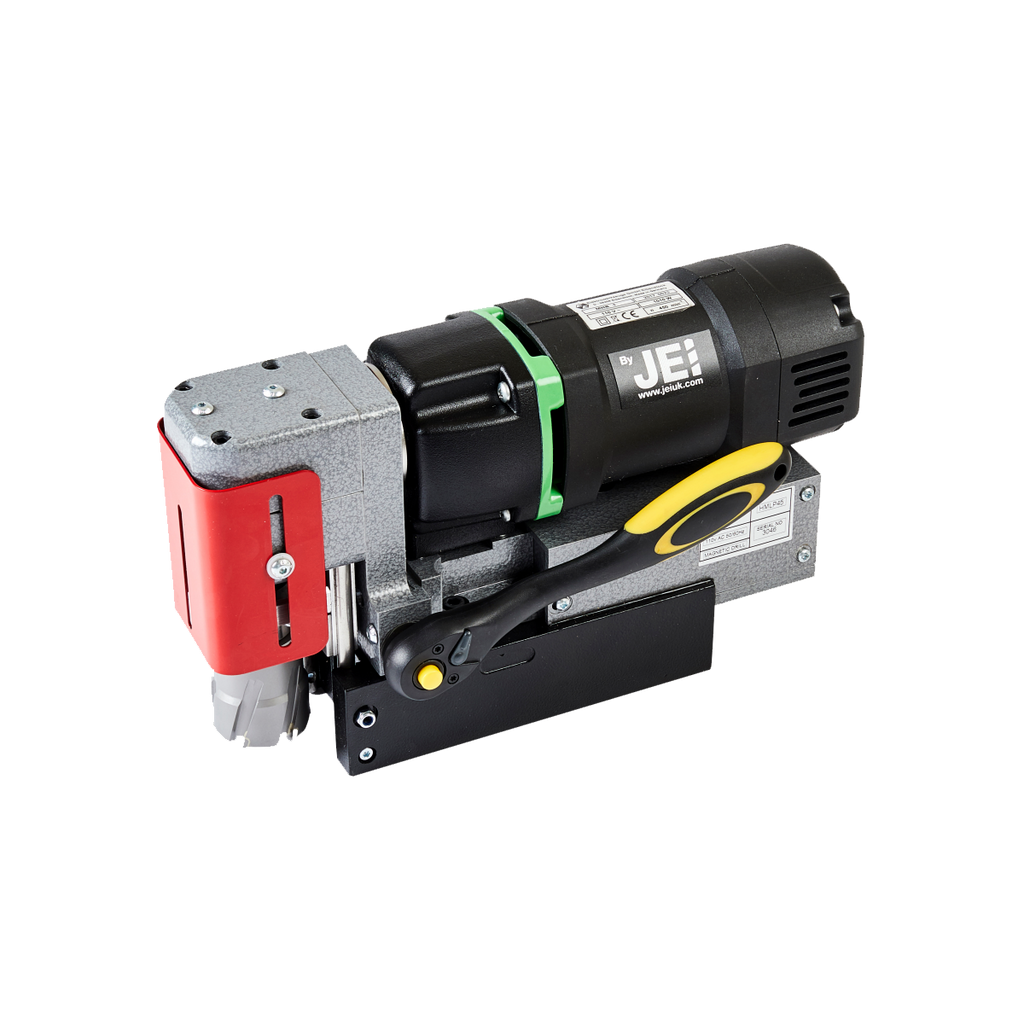

Jei MagBeast LP45
Designed to fit into the most height restrictive areas
- Compact design – only 180 mm high.
- Big capacity – will handle up to 45 mm diameter holes through 50 mm plate.
- Convenient ratchet handle can be used in either a left or right hand position.

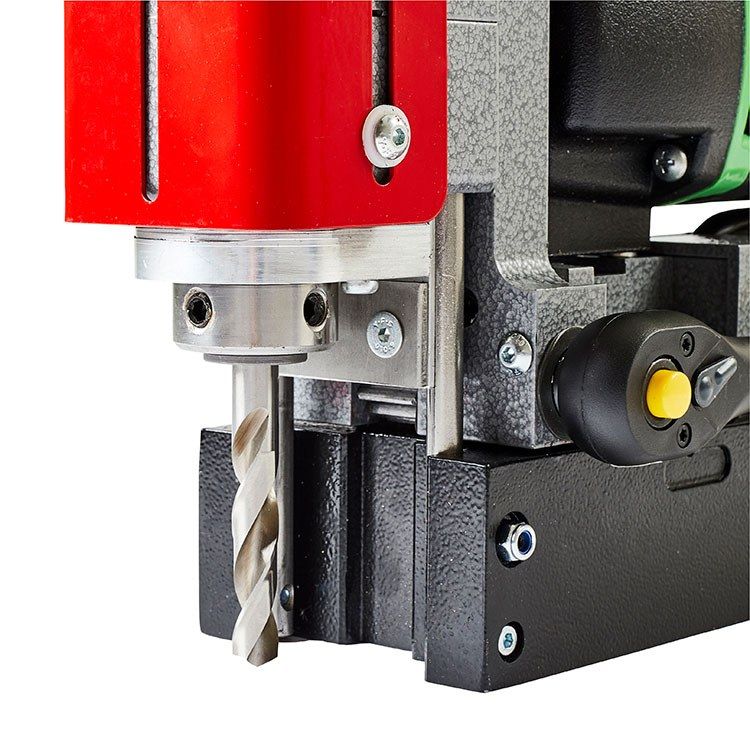

- 12 mm twist drill capacity.
- Maintenance free – no adjustable slides, no exposed motor cord.
- Can be used with 13mm chuck and adaptor set (JEICA-13MM/19).
- Ideal for bridge maintenance work & repairs, platform drilling, steel construction
The LP45 is designed to fit into the most height restrictive areas at only 180mm high. Small in stature but not in power, this drill will handle up to 45mm diameter holes through 50mm plates.
Specifications
| Model | LP45 |
|---|---|
| Weight | 11 kg |
| Cutter Capacity | 45 mm Ø x 2” depth of cut |
| Twist Drill Capacity | 12 mm Ø with optional Turbo™ Twist drills |
| Countersink Capacity | 30 mm |
| Spindle | 19 mm |
| Motor | 1010 W |
| RPM | No load 500 RPM loaded 290 RPM |
| No of Geared Speeds | 1 Fixed Speed |
| Height Min/Max | 180 mm |
| Length / Width | 310 x 120 mm |
| Magnetic Base Dimensions | 183 x 85 mm |
| Magnet Deadlift | 1200 kg on 1” Plate (11700 N) |
| Noise Level | < 90dB |
| Vibration Level | < 2.5 m/s2 |
| Shipping Weight | 15 kg |
| Shipping Dimensions | 360 x 350 x 260 mm |
| Voltage / Part No. | 110 V – DRILL-LP45/1 ~ 240 V – DRILL-LP45/2 |
