Jei DRILL-MIDI-Beast Midibeast
A Rugged Performer, designed for Intensive Drilling Applications
The MiniBeastTM has got a big brother. Designed to lessen the load on smaller magnetic drilling machines, to make sure heavier drilling applications which require larger holes can be completed in time and without machine overload
- 1600 W powerful motor with heavy duty 2 speed gearbox.
- Self aligning slide rails for maintenance free operation.
- Rigid casting designed to withstand downwards drilling force, prolonging the cutter life.

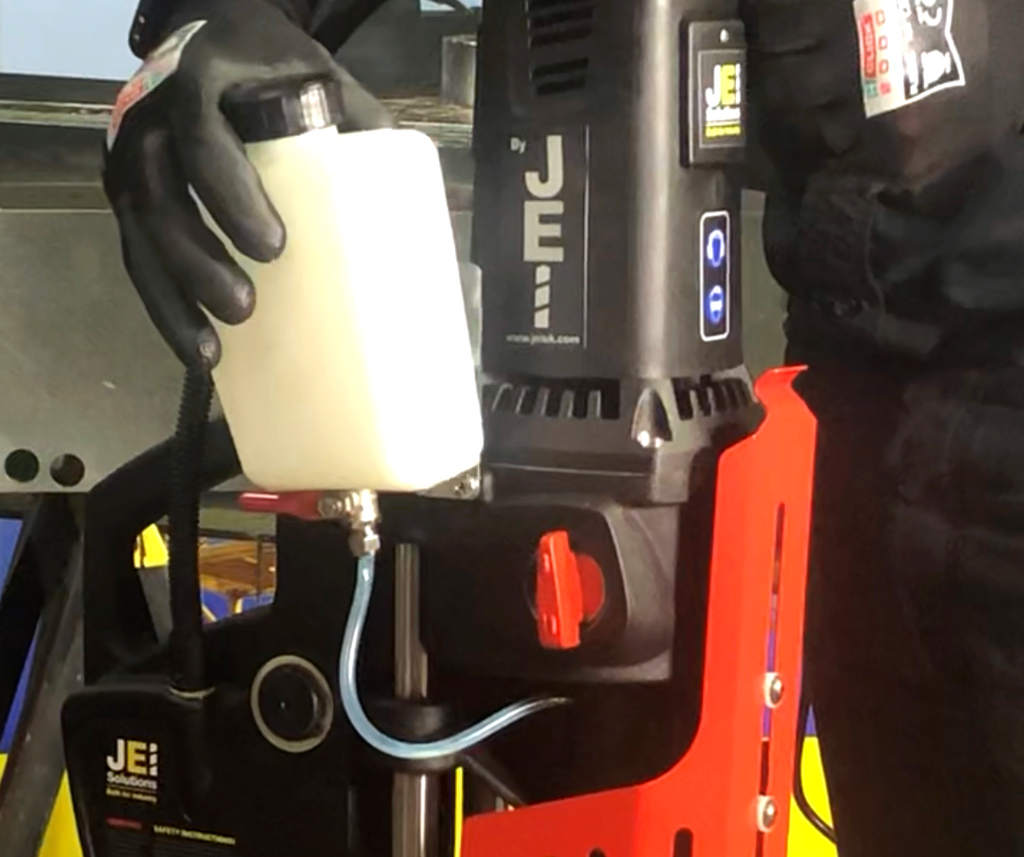

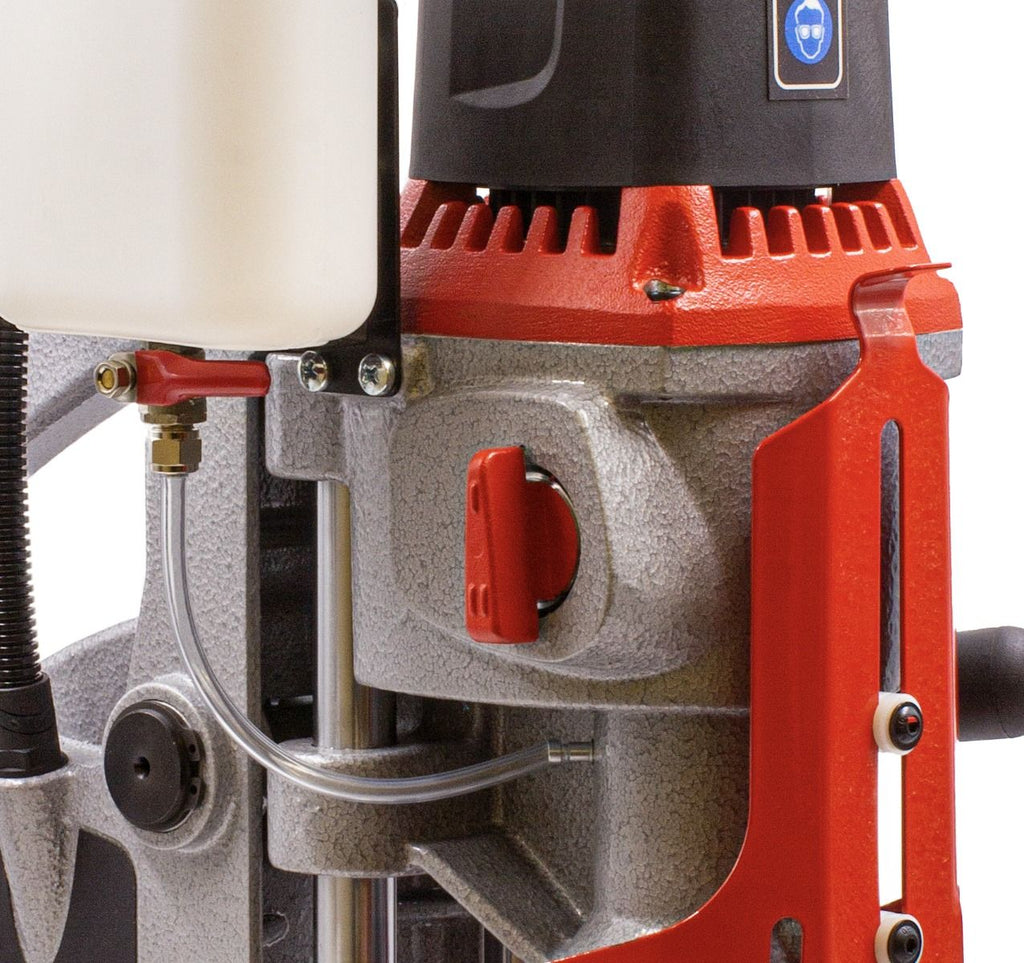

- Large capacity coolant container, for more holes without re-fill.
- Hidden motor cable - for added protection.
- Light-weight - only 11.7 kg.

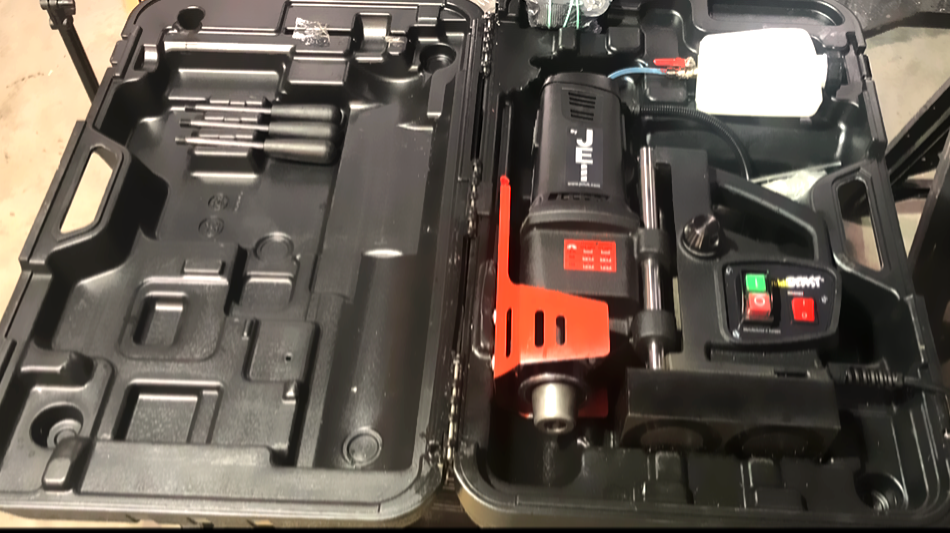

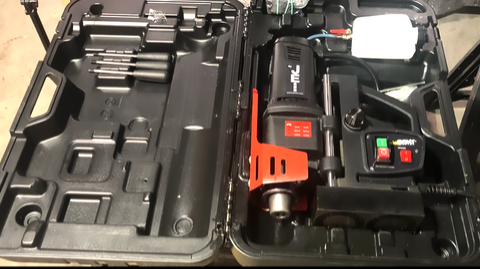

- Machine includes: plastic carrying case, cooling system, 3 x spoke handles, safety strap, 4 mm T handle wrench and operator's manual.
Designed specifically for use with either TCT or HSS annular broaching cutters up to 65 mm diameter with a direct feed 19 mm (3/4") shank drive, to increase the stability of the cutting process, reduce run out and extend tooling life.
Specifications
| Model | MIDIBEAST™ |
|---|---|
| Weight | 17 kg |
| Cutter Capacity | 65mm Ø x 3" depth of cut |
| Twist Drill Capacity | 12 mm with optional Turbo™ twist drills |
| Motor | 1600 watts |
| No of Geared Speeds | 2 Fixed Speed (loaded 160/390 RPM) |
| Height Min/Max | 420 / 511 |
| Length / Width | 350 mm / 215 mm (with spoke handles) |
| Magnetic Base Dimensions | 180 mm x 90 mm |
| Magnet Deadlift | 1122 kg on 1" Plate (11000 N) |
| Noise Level | < 100dB |
| Vibration Level | < 2.5 m/s2 |
| Shipping Weight | 22 kg |
| Shipping Dimensions | 680 mm x 460 mm x 170 mm |
| Voltage / Part No. | 110 V - DRILL-MBD1 / 240 V - DRILL-MBD2 |
