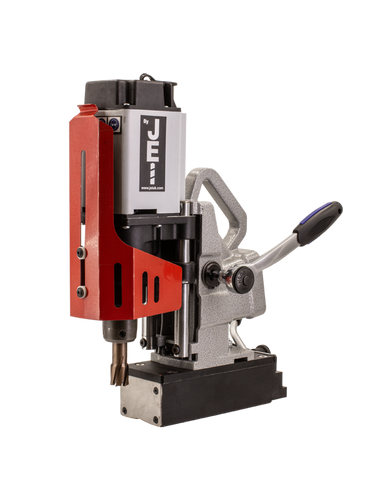

JEi Mini Beast, MiniBeast™ ULTRA
Battery-operated, compact magnetic drilling machine.
- Permanent Safe-Base Magnet.

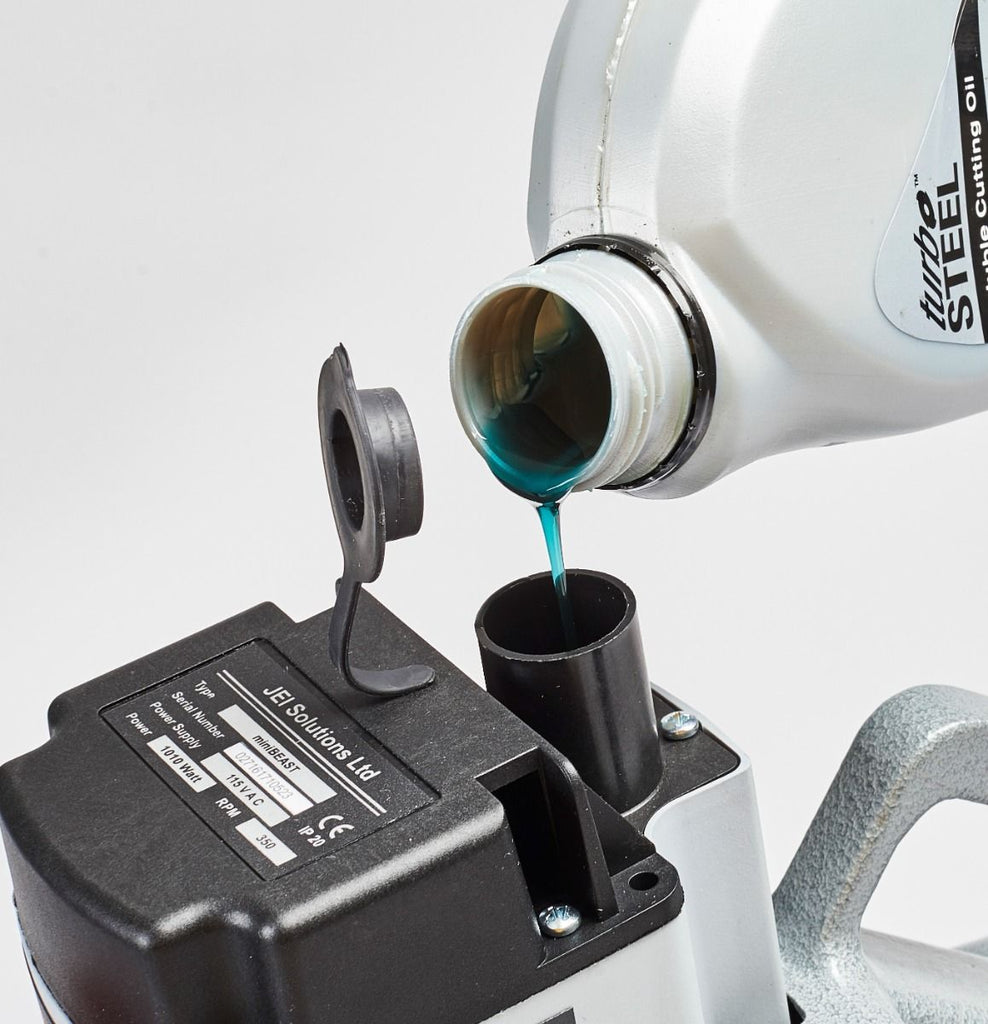

- Internal coolant reservoir - ensuring maximum cutter life.
- Detachable ratchet handle system.
- For left or right hand operation in tight access areas.
- Designed for drilling pipes, convex or concave surfaces.
- V-Block magnet design allows holding on pipes over 80mm Ø
The MINIBEAST ULTRA™ is specifically designed for situations that may involve power outages, such as drilling into walls. Its magnetic base, powered by strong neodymium magnets, allows it to operate without electricity, ensuring reliability and convenience even in the absence of power.

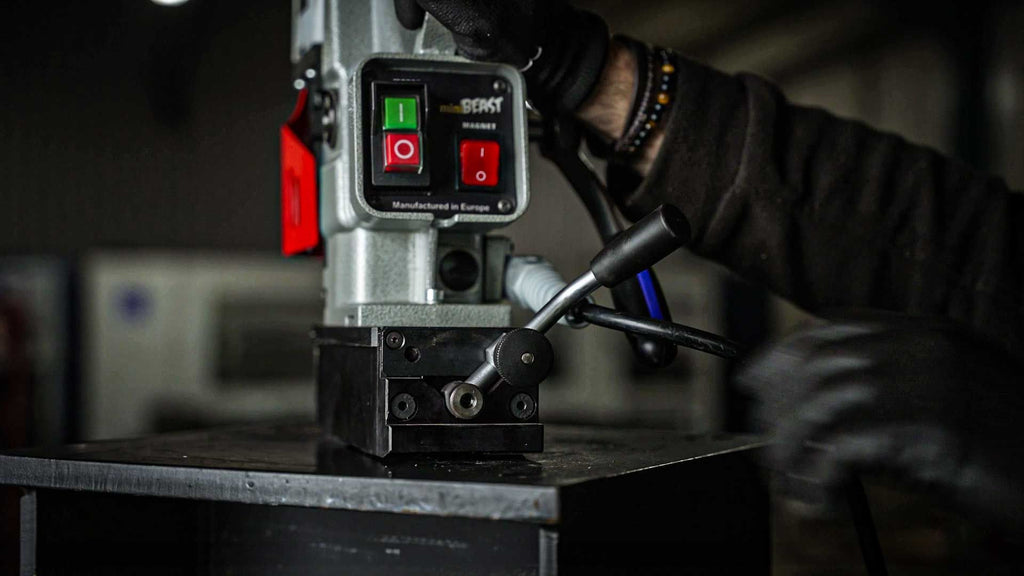

A key feature of this machine is its switchable holding force, which enables easy and precise positioning of the drill. By partially engaging the magnetic base, users can adjust the drill's position with accuracy, enhancing the efficiency and effectiveness of the drilling process.

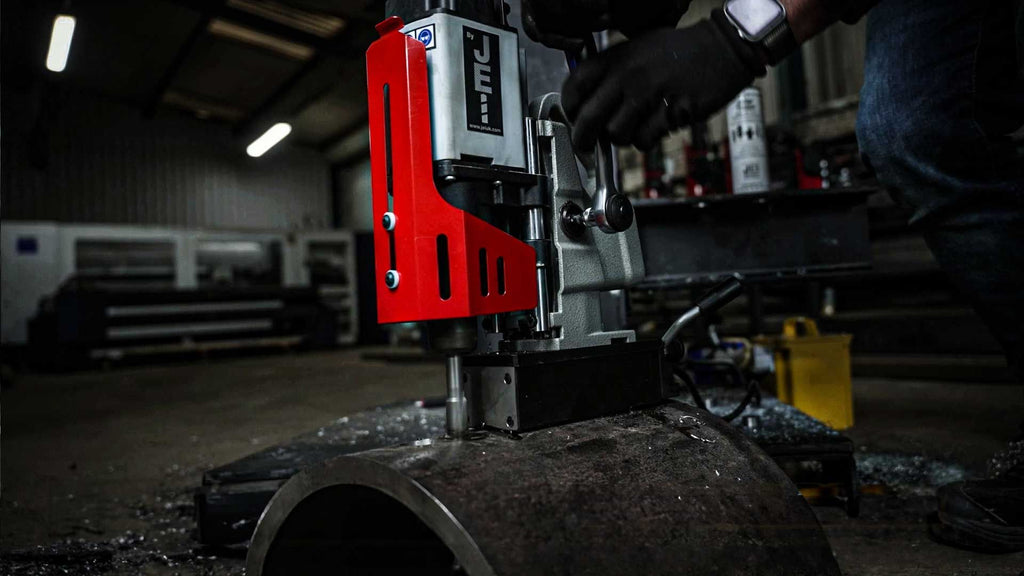

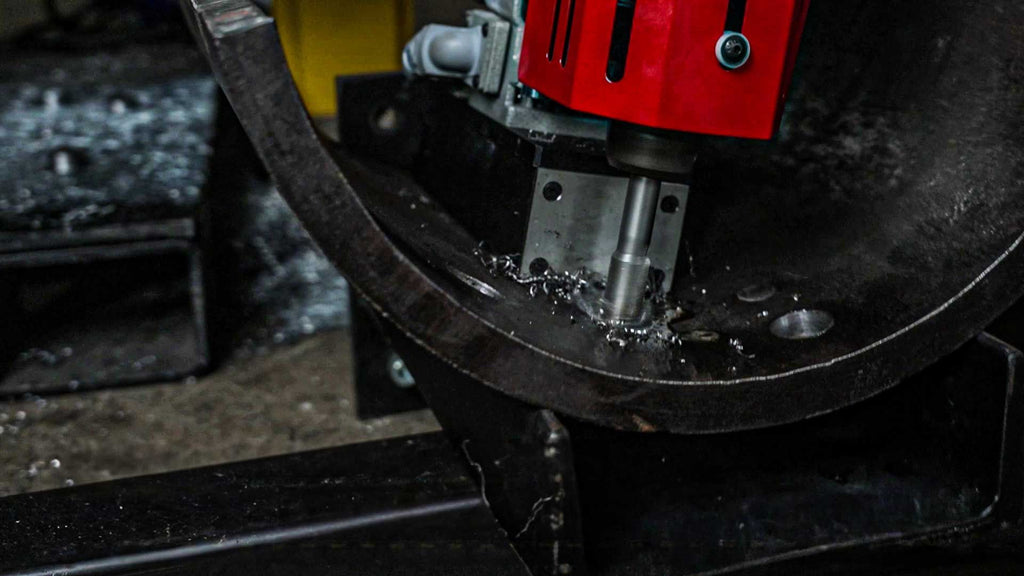

This drill is designed to accommodate various material shapes, including convex surfaces with a minimum diameter of 80 mm and concave surfaces with a minimum diameter of 1000 mm. Its versatility allows users to easily tackle a wide range of drilling tasks, making it a practical choice for diverse applications.
Specifications
| Model | MiniBeast™ ULTRA |
|---|---|
| Weight | 14 kg |
| Cutter Capacity | 36mm Ø x 2" depth of cut |
| Twist Drill Capacity | 12 mm with optional Turbo™ twist drills |
| Countersink Capacity | 30 mm |
| Tapping Capacity | 70 mm |
| Reaming Capacity | 1000 mm |
| Spindle | 19mm |
| Motor | 1020 watts |
| RPM | Loaded 350 RPM |
| No of Geared Speeds | 1 Fixed Speed |
| Height Min/Max | 307 / 377 |
| Length / Width | 260 mm/166 mm |
| Magnetic Base Dimensions | 243 mm × 218 mm × 96 mm |
| Magnet Deadlift | 6000 N |
| Noise Level | < 90dB |
| Vibration Level | < 2.5 m/s2 |
| Shipping Weight | 17 kg |
| Shipping Dimensions | 49cm x 38cm x 19cm |
| Max Stroke | - |
| Minimum Workpiece Thickness | - |
| Voltage / Part No. | 110 V - DRILL-MBU/1 / 240 V - DRILL-MBU/2 |
