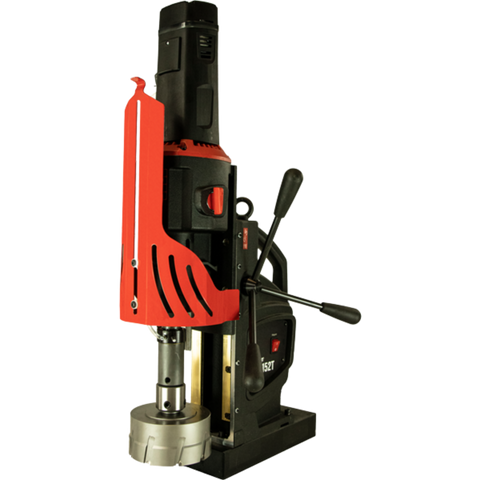

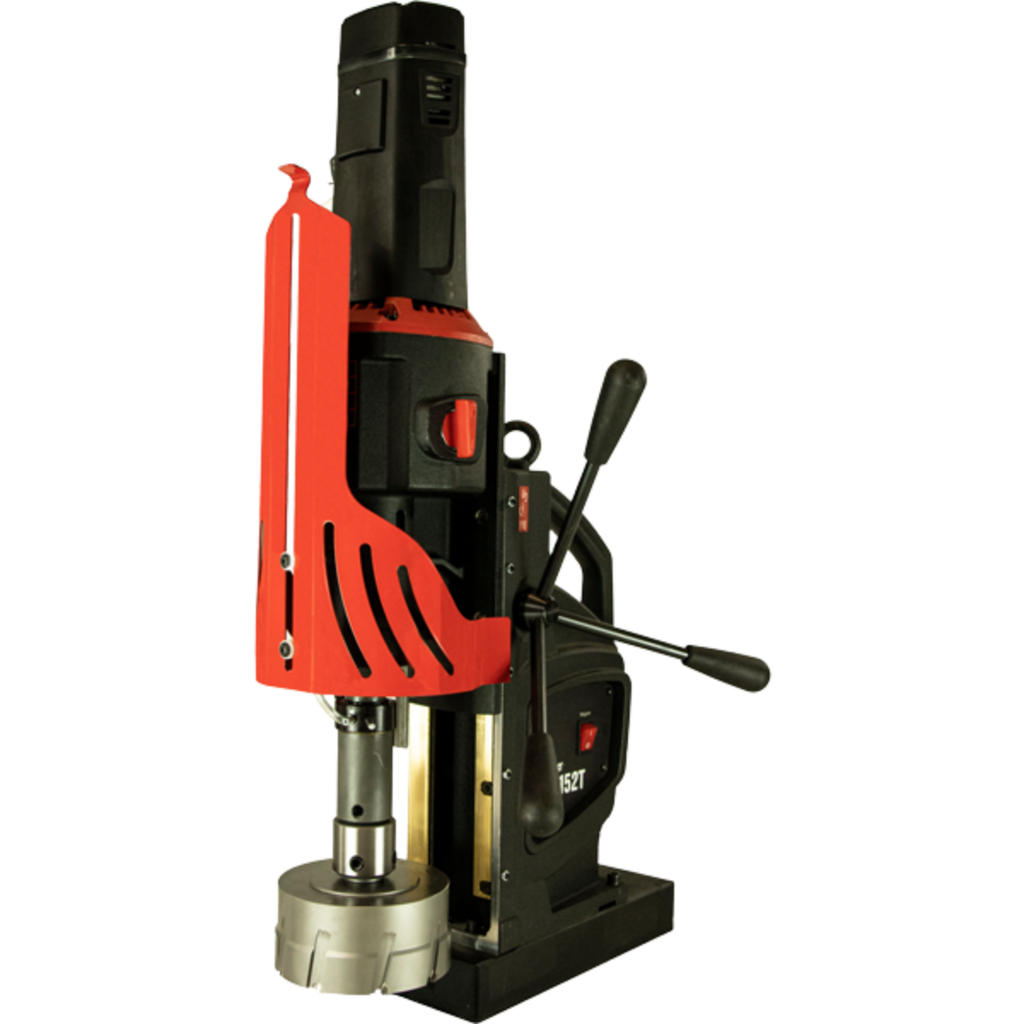

Jei PRO-152T Magbeast Premium PRO-152T
HEAVY DUTY TAPPING AND DRILLING MACHINE
The PRO-152T drilling machine is designed for large hole making and very big tapping applications. Powerful 2300 W variable speed motor enables cutter capacity up to 150 mm (6”) and twist drill capacity up to 47 mm (1-7/8”).
- 2300 W powerful motor with heavy duty 4-speed gearbox.
- Intelligent speed control system maintains stable speed.

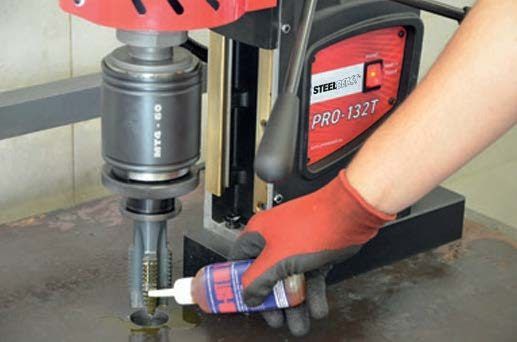

- Tapping of through and blind holes.

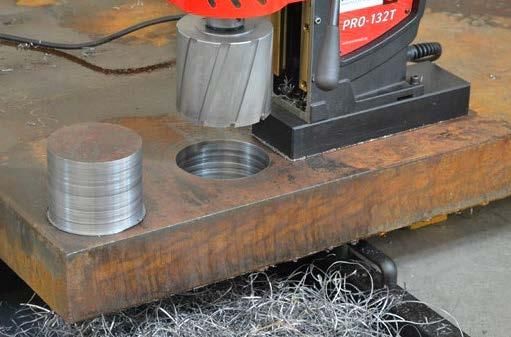

- Drilling with TCT or HSS annular cutters.
- Electronic speed control.
- Electronic clutch.
- Rigid design ex tends tool life.
- Tilt sensor stops the motor in cases of machines break away.
- 360 degree visual monitoring system.
- Innovative smart magnet with reduced weight.

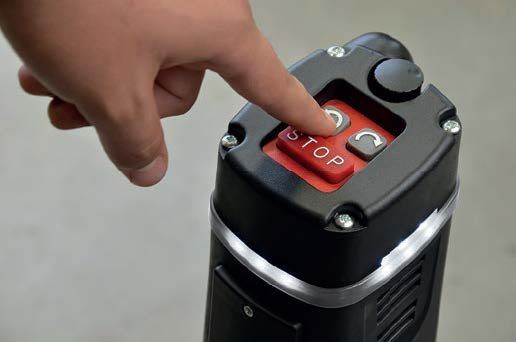

- Intuitive control panel at top of the drill.
- Large coolant container.
Four speed gearbox with continuous speed adjustment allows to set the optimal speed depending on diameter, steel grade or tool quality. Intelligent speed control system maintains constant motor speed regardless of changing loads. Innovative 360-degree LED indicator facilitates proper machine operation and increases work safety.
Specifications
| Model | Magbeast Premium PRO-152T |
|---|---|
| Weight | 31kg |
| Cutter Capacity | 150 mm (6")* |
| Twist Drill Capacity | 47 mm (1-7/8") |
| Tapping Capacity | M42 (1-5/8") |
| Spindle | MT4 |
| Motor | 2300 W |
| Magnetic Base Dimensions | 105 mm x 315 mm x 50 mm | 4-1/8" 12-3/8" x 2" |
| Magnetic Clamping Force | 2550 kG (25,000 N) |
| Maximum Depth of Cut | 100 mm (4") |
| Max Stroke | 260 mm (10") |
| Minimum Workpiece Thickness | 10 mm (3/8") |
| Tool Holder | 19 mm (3/4") or 32 mm (1-1/4") Weldon |
| Voltage / Part No. | 1~ 220-240 V, 50-60 Hz 1~ 110-120 V, 50-60 Hz |
