Jei PRO-52T Magbeast Premium PRO-52T

£ POA

Please call for best price.


Jei PRO-52T Magbeast Premium PRO-52T

HEAVY DUTY. TAPPING AND DRILLING MACHINE 2MT

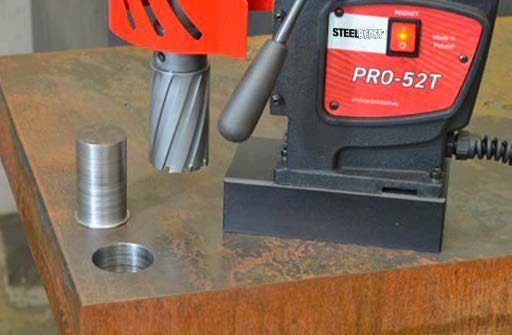

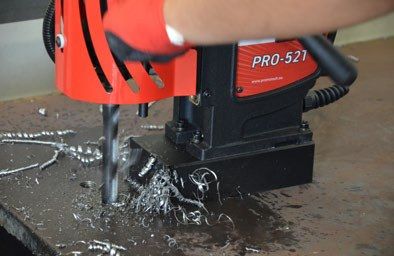

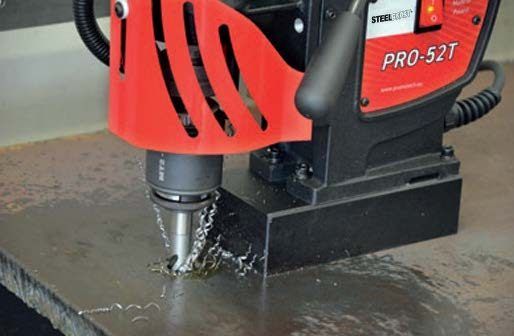

The PRO-52T is a powerful, universal tapping and drilling machine suitable for hole cutting and tapping applications. Features a powerful 1600 W variable speed motor enabling milling capacity up to 50 mm (2”) and drilling capacity up to 23 mm (7/8”).

  • 1600 W powerful motor.

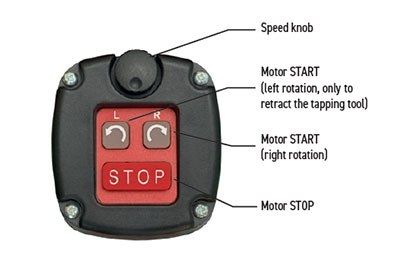

  • Intelligent speed control system.
  • Both overload and overheat protection.
  • Heavy duty 2-speed gearbox.
  • Tilt sensor.
  • 360-degree visual monitoring system.
  • Large coolant container.

The Magbeast Premium PRO-52T drilling machine is suitable for hole cutting and tapping applications. Powerful 1600W variable speed motor enables cutting capacity up to 50mm (2”) and twist drill capacity up to 23 mm (7/8”).

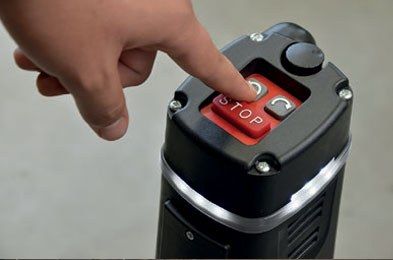

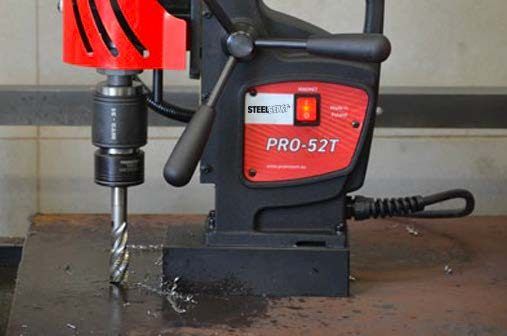

Machine’s forward & reverse work modes allow thread cutting up to M20 with a new tapping system.

Specifications

Model PRO-52T
Weight 17kg
Cutter Capacity 52mm Ø x 3" depth of cut
Twist Drill Capacity 23mm
Countersink Capacity 40mm
Tapping Capacity M20 (3/4")
Reaming Capacity 22mm
Arbor Bore 19mm
Spindle MT2
Motor 1600 W
RPM (1) 160-250 rpm (2) 390-580 rpm
Magnetic Base Dimensions 90 mm x 180 mm x 48 mm 3-9/16" x 7" x 1-7/8"
Magnet Deadlift 1122 kG (11,000 N)
