JEi SBM500 SteelBeast Stationary Bevelling Machine
Stationary beveller for machining straight edges of different size workpieces. Modern design, numbers of advanced control systems and innovative solutions streamlines workflow to maximize your production efficiency.

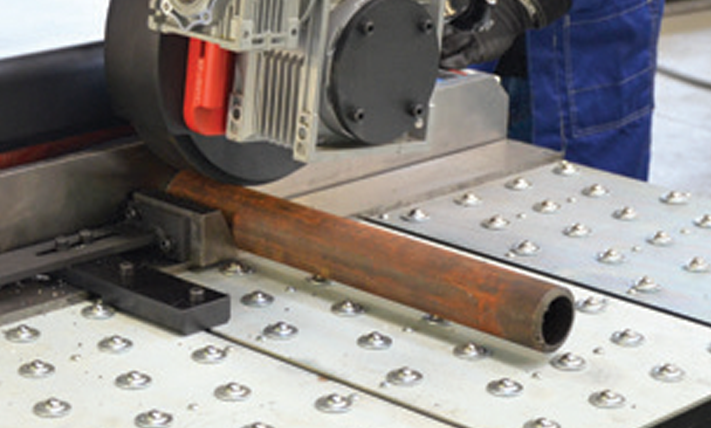

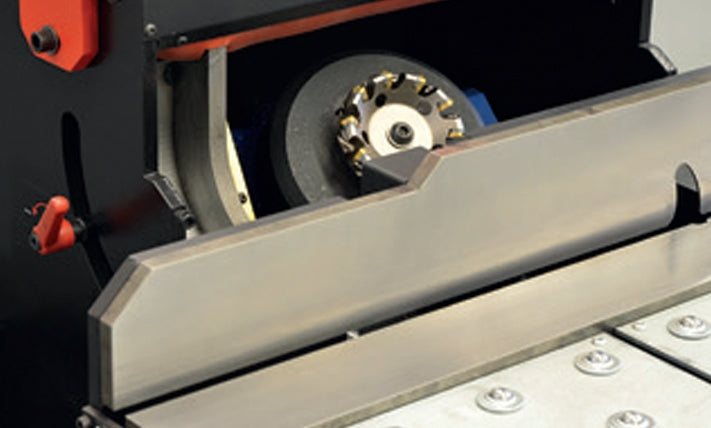

Equipped with a powerful 7.500-watt motor, the stationary bevelling machine is a robust and efficient solution for bevelling up to 30 mm wide on different-sized workpieces up to 100 mm thick and small pipes from 50 to 150 mm in diameter. The SBM500 features a high-speed rotary milling head that produces a clean, milled surface without thermal distortion or a heat-affected zone. Continuous adjustment of spindle speed and auto-feed rate makes it suitable for different types of steel and aluminium. Optional accessories expand the possible applications of the SBM-500 to deal with long workpieces, pipes 50-150 mm OD, and narrow workpieces with a minimum width of 30 mm.
Features

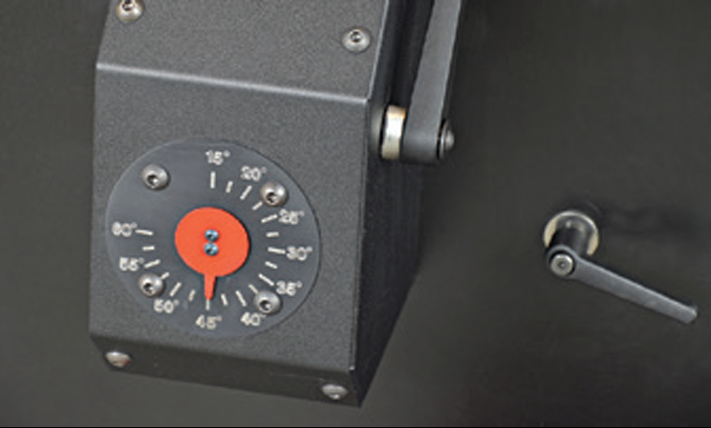

- Precise setting of bevel angle from 15 up to 60 degrees and bevel width up to 30 mm

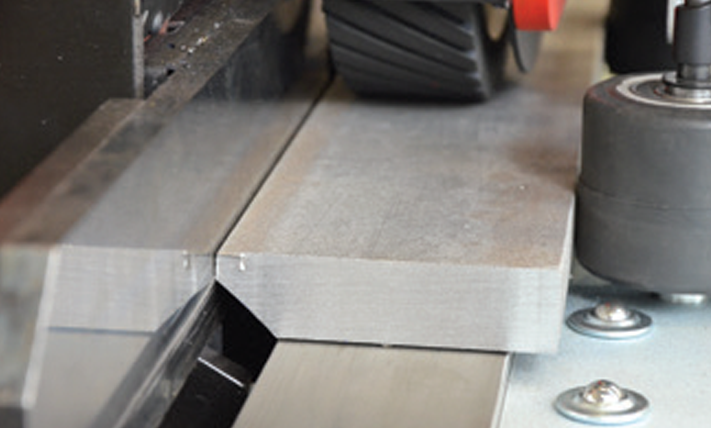

- 3D contact wheel control ensures proper workpiece alignment in relation to high-speed rotary milling head
- variable auto-feed to bevel both ferrous and non-ferrous materials
- cutting inserts dedicated for optimal performance on different materials
- easy access to milling head and cutting inserts
- overload protection to prevent motor damage
- SBM-500 streamlines workflow to maximize your production efficiency
- 2 years of warranty
Specification
| Voltage | 3~ 400 VAC + N+PE, 50/60 Hz |
| Power | 7500 W |
| Spindle speed (no load) | 500 - 2920 rpm |
| Feed rate | up to 3.3 m/min |
| Feed by contact wheel | YES |
| Bevel angle range | 15 - 60° with continuous angle adjustment |
| Bevel width | up to 30 mm |
| Milling head with 10 inserts | YES |
| Min. dimensions of a bar | 50x150x3 mm |
| Max. workpiece height | up to 100 mm |
| Weight | 850 kg |
| Product Code: | UKS-0573-10-00-00-0 |
