JEi SteelBeast 150FG SCANTOOL Floor belt grinder for industry

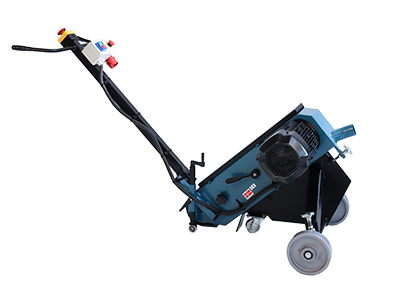

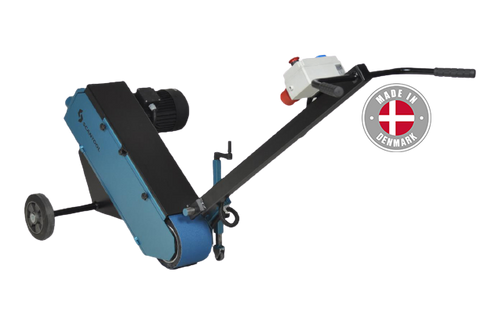

SCANTOOL 150FG floor belt grinder is the ideal grinder for large and heavy items that cannot be lifted over to the grinder.

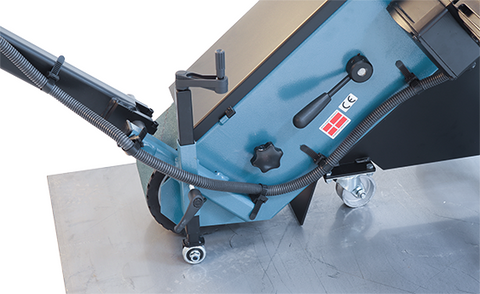

Used, among others in shipyards and in the wind mill industry for grinding of welds in floor height. With Scantool floor belt grinder the operator can stand up and grind in floor level. Operating handle is height adjustable and can customize any person.

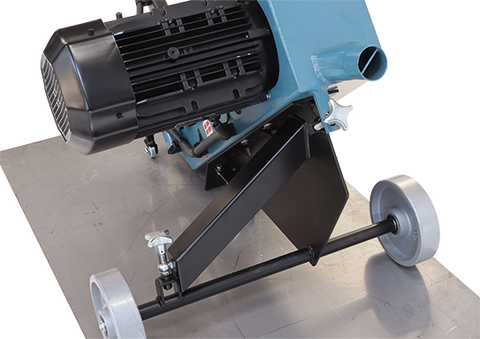

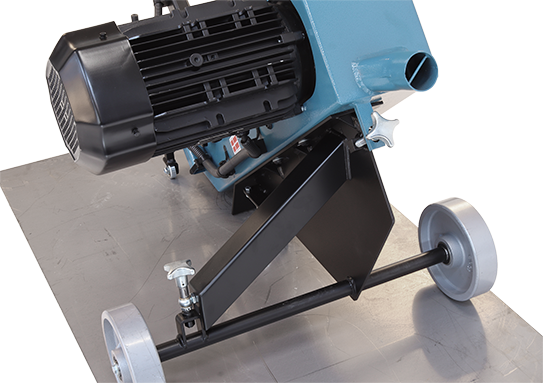

The pressure from the floor belt grinder is also adjustable and simultaneously it is possible to adjust the belt grinding surface, so you can always use the full width of the grinding belt, although the floor is uneven.
Specifications
| Model | SCANTOOL 150FG |
|---|---|
| Motor | 7.5 HP |
| RPM | 2800/3300 |
| Length / Width | 365mm / 605mm |
| Grinding belt (mm) | 150x2000 |
| Grinding table (mm) | Grinding table (mm) |
| Height | 1965 mm |
| Net Weight | 90kg |
| Number of spindle speeds | 1 |
| Voltage / Part No. | 3x400/440V-50/60 Hz |
| Working Pressure | 200x150x42 |
