JEi SteelBeast AL-1 Hand Notcher
Manual Hand Notcher
A simple, fast and clean solution designed to notch ends of tubes and pipes prior to joining, the AL-1 is a manual hand notcher, designed to notch out the ends of pipes (birds mouth) 3/4", 1" and 1-1/4" nominal bore size, at 90 degrees prior to joining.
Ideally bolts to a steel girder in the workshop or site, taking up minimal of floor space. Provides high productivity with low investment, along with simple and rapid operation.
Comes with 3-year manufacturer's warranty on main parts.

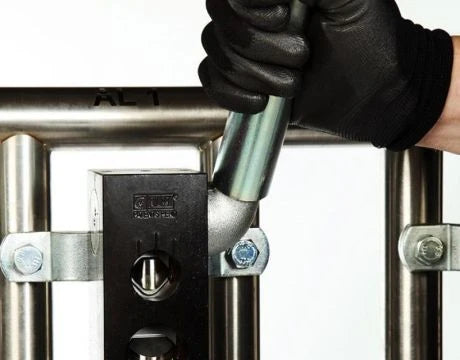

With the pipe notcher AL1 you can notch external pipe diameters of Ø26.9 (3/4″), Ø33.7 (1″) and Ø42.4 (1 ¼”). The machines with manual operation are easy to mount on the wall. With ALMI pipe notchers, filing or milling pipes is a thing of the past. Thanks to their favourable price and high productivity, the ALMI pipe notchers are a great investment. Thanks to the add-on lever, you can easily notch a pipe with little effort.
Features
- Quick and clean operation
- Works on mild and stainless steels, aluminium and other metals
- Hard Wearing cutting block - covered by 3 years manufacturer warranty
Specifications
| Model | AL-1 |
|---|---|
| Advantage | Quick and easy notching |
| Application | Round pipe |
| Max Wall Thickness | Mild Steel - 4mm / Stainless steel - 3mm |
| Net Weight | 8 kg |
| Operation | Manual |
| Outer / Inner Diameter of Tube | 27.9mm/3/4", 34.8mm/ 1", 42.8mm/1-1/4" |
