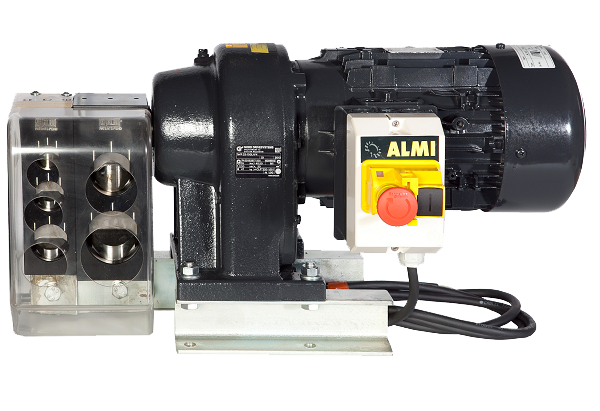

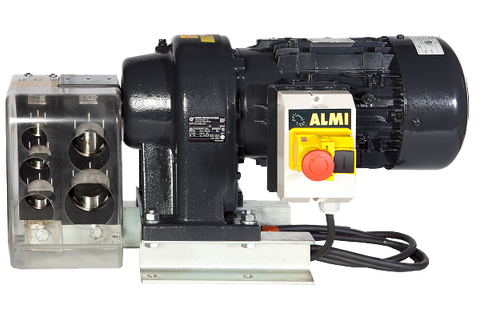

JEi SteelBeast AL-12E Electric Driven Hand Notcher
Automatic Pipe Notcher for Intensive Use, With the electrically driven pipe notcher AL-12E, the machine is started at the touch of a button, whereby the pipe notcher is operated continuously. This allows the user to continue production without having to switch on the machine every time. With the electrically driven pipe notcher AL-12E you can cut external pipe diameters of Ø26.9 (3/4″), Ø337 (1″), Ø42.4 (1 ¼"), Ø48.3 (1 ½"), Ø60.3 (2″) sound out. Do you frequently sound out pipes? Then the AL-12E electrically driven pipe notcher with a 2.2 kW electric motor is the solution for you. The engine forms one whole with the eccentric shaft, which drives the notching tool. Furthermore, the motor has an on/off switch with 0 voltage protection and a protective cover.

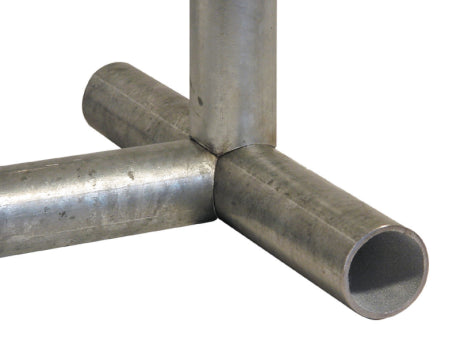

A fast production tool for producing weld ready 90-degree pipe joints, the AL-12E is an automatic pipe notcher, designed for intensive use. Incorporating the AL-1 and AL-2 notchers on a motorised cam shaft, the AL-12E provides a fast production method of producing weld ready pipe end joints.
Comes with 3-year manufacturer's warranty on main parts.
Features
- Quick and clean operation
- Covers nominal Bore Pipe from 3/4" to 2" I.D
- Works on mild and stainless steels, aluminium and other metals
- Hard Wearing cutting block - covered by 3 years manufacturer warranty
Specifications
| Model | AL-12E |
|---|---|
| Power Supply | 1.4v |
| Max Wall Thickness | Mild Steel - 4mm / Stainless steel - 3mm |
| Net Weight | 87kg |
| Outer / Inner Diameter of Tube | 61mm/2", 49mm/1-1/2", 42.8mm/1-1/4", 34.8mm/1", 27.9mm/ 3/4" |
