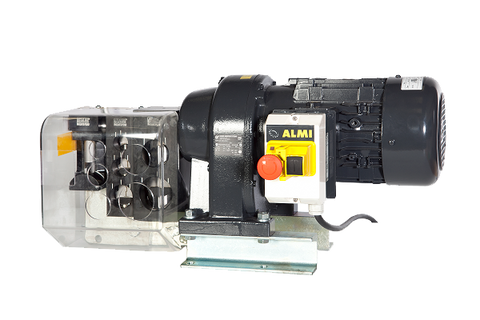

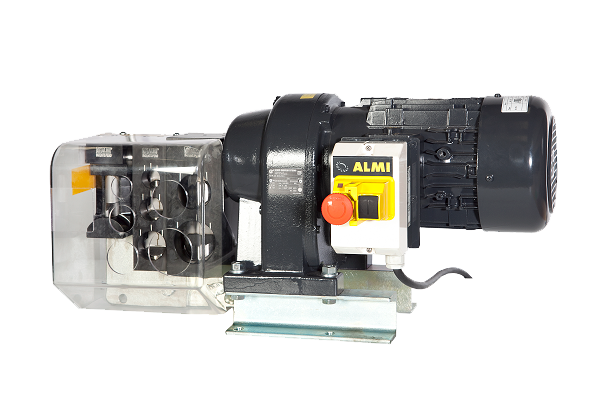

JEi SteelBeast AL-12U Electric Driven Hand Notcher
Producing Weld Ready 90 Degree Pipe Joints, the electrically driven pipe notcher AL-12U, the machine is started at the touch of a button, whereby the pipe notcher is operated continuously. This allows the user to continue production without having to switch on the machine every time. With the electrically driven pipe notcher AL-12U you can cut external pipe diameters of Ø26.9 (3/4″), Ø337 (1″), Ø42.4 (1 ¼"), Ø48.3 (1 ½"), Ø60.3 (2″) sound out. This pipe notcher is also suitable for notching a zinc outlet in round and rectangular metal pipes. You can notch out external pipe diameters from Ø 20 -60.3. Do you frequently sound out pipes? Then the AL-12U electrically driven pipe notcher with a 2.2 kW electric motor is the solution for you. The engine forms one whole with the eccentric shaft, which drives the notching tool. Furthermore, the motor has an on/off switch with 0 voltage protection and a protective cover.
A fast production tool for producing weld ready 90-degree pipe joints, an automatic pipe notcher, designed for intensive use.
Incorporating the AL-1, AL-2 and AL-U notchers on a motorised cam shaft, the AL-12U provides a fast production method of producing weld ready pipe end joints.
Comes with 3-year manufacturer's warranty on main parts.
Features
- Quick and clean operation
- Covers nominal Bore Pipe from 3/4" to 2" I.D
- Works on mild and stainless steels, aluminium and other metals
- Hard Wearing cutting block - covered by 3 years manufacturer warranty
- Includes V notch tool for sink outflows
Specifications
| Model | AL-12U |
|---|---|
| Max Wall Thickness | Mild Steel - 4mm / Stainless steel - 3mm |
| Net Weight | 93 kg |
| Outer Diameter for Sink Outflow | 61mm/2", 49mm/1-1/2", 42.8mm/1-1/4", 34.8mm/1", 27.9mm/ 3/4" + Sink Outflow |
