JEi SteelBeast AL-U Hand Notcher
A Simple, Fast and Clean Solution

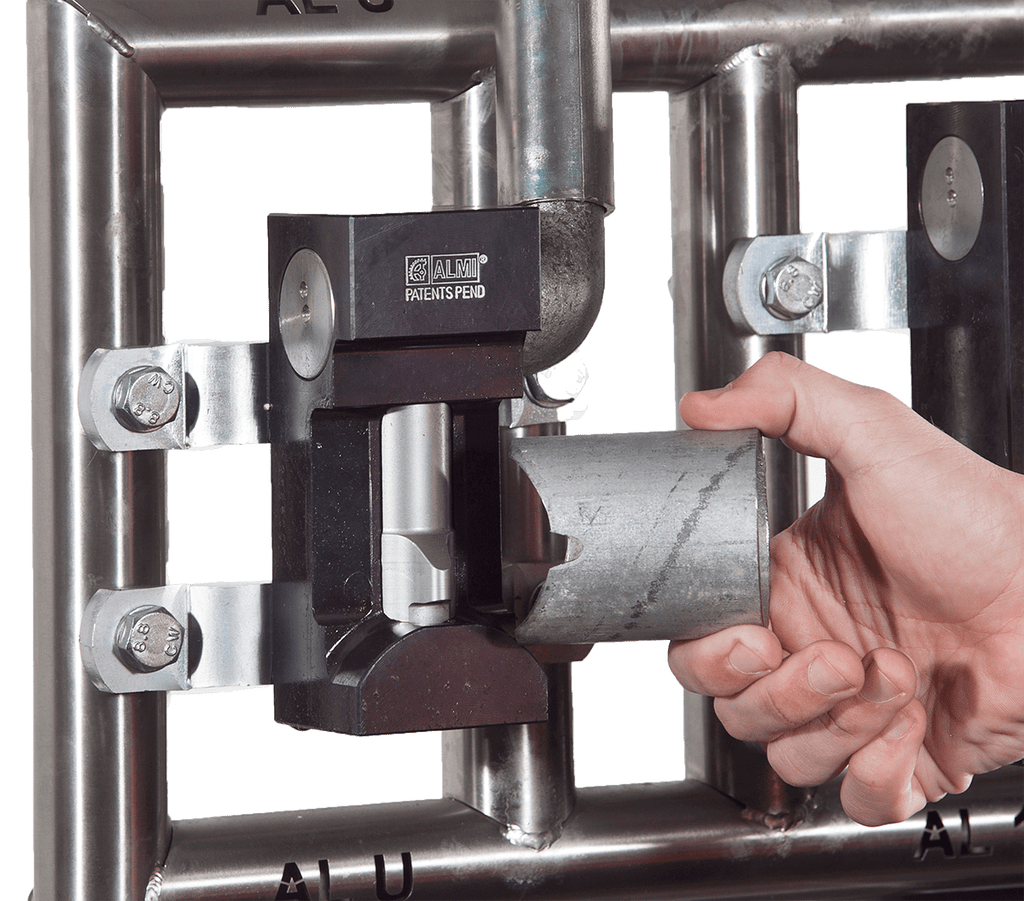

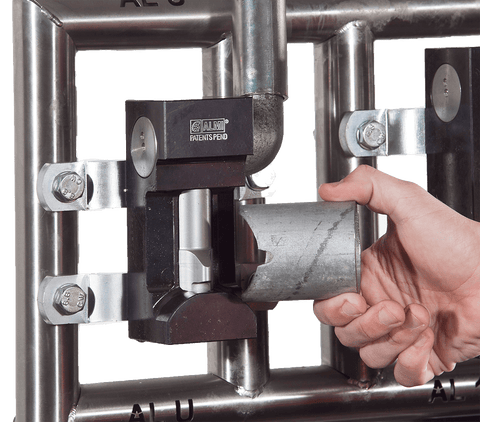

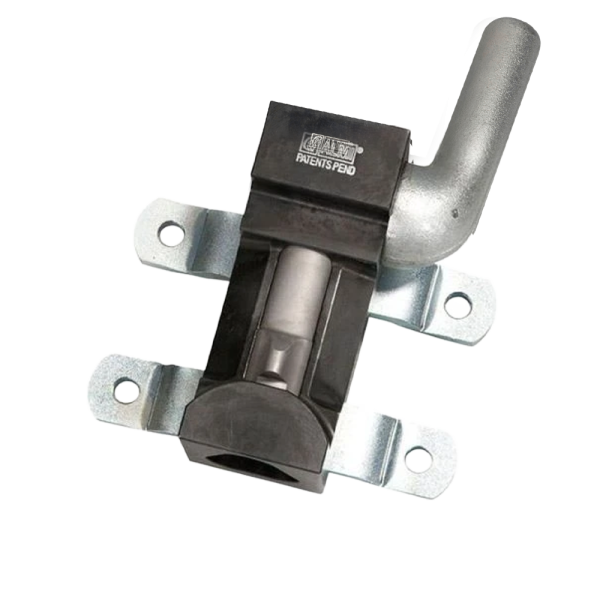

The AL-U is a manual hand notcher, designed for pipes with a diameter between 22mm and 76mm. It offers a simple, fast and clean solution for notching venting slots and sink outflows in tubes, pipes and rectangular sections. The AL-U ideally bolts to a steel girder in the workshop or site, taking up minimal of floor space. Provides high productivity with low investment, along with simple and rapid operation.
Comes with 3-year manufacturer's warranty on main parts.

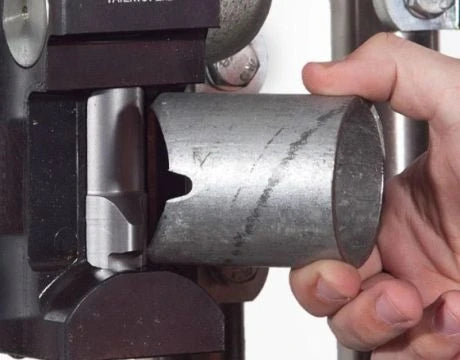

With the pipe notcher AL-U you can create an end notch in external pipe diameters from Ø22 to Ø76 mm. Thanks to the favourable price and high productivity, the ALMI pipe notchers are a great investment. ALMI pipe notchers are available for notching vent slots in round or rectangular pipes from 22 mm externally with a wall thickness of a maximum of 3 mm. You can easily create end notches with little effort thanks to the add-on lever.
Features
- Quick and clean operation
- Works on mild and stainless steels, aluminium and other metals

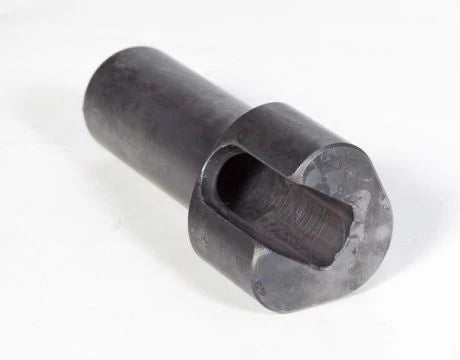

- Hard Wearing cutting block - covered by 3 years manufacturer warranty
Specifications
| Model | AL-U |
|---|---|
| Advantage | Quick and easy notching of zinc tube |
| Application | Round, square and rectangular pipe |
| Max Wall Thickness | 3 mm |
| Net Weight | 7 kg |
| Operation | Manual |
| Outer Diameter for Sink Outflow | 22 - 76mm Dia |
