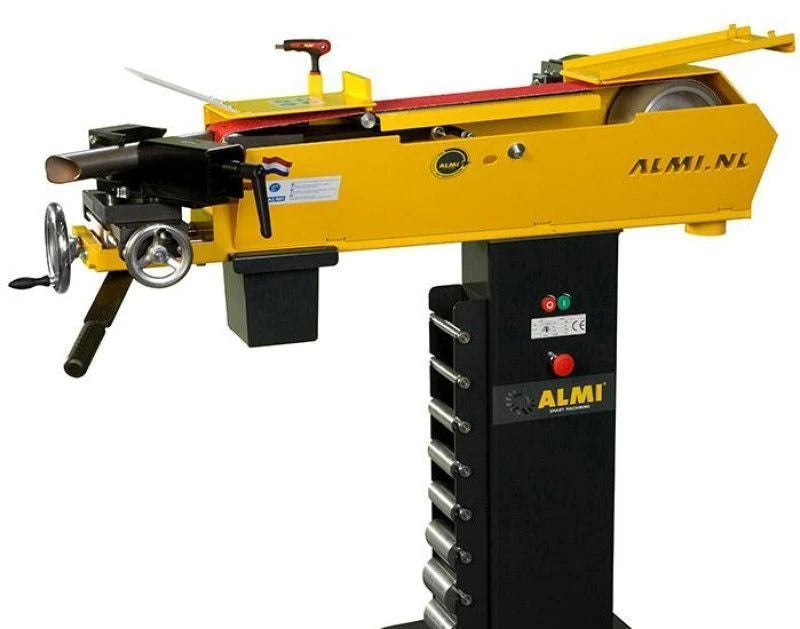

JEi SteelBeast AL100U-01/AL100U-02 Pipe Grinders

JEi SteelBeast AL100U-01/AL100U-02 Pipe Grinders

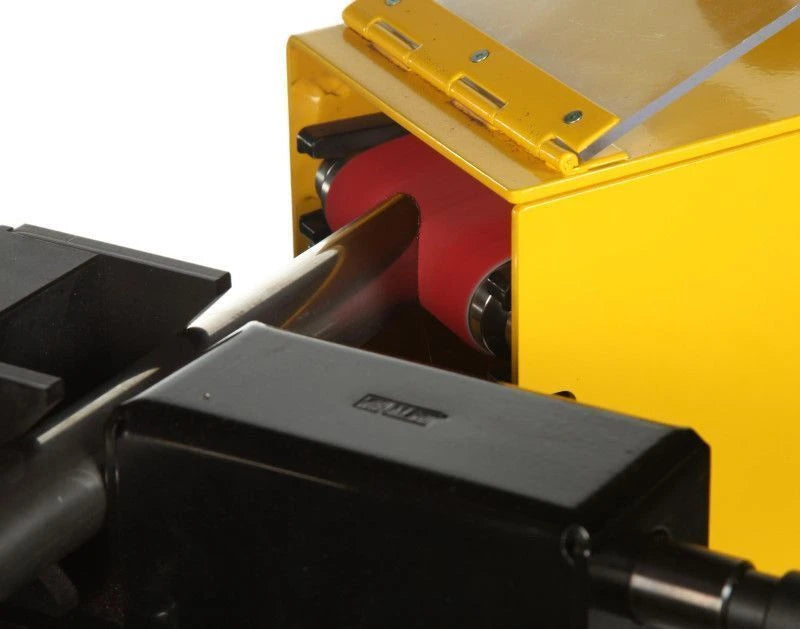

ALMI pipe grinders are solidly built. Due to the high speed, hardly any heat and fine dust is released during processing. Because barely any heat is released when processing your tube or profile part, no tarnishing colors are created. Hardly any grinding burrs are created when working with our pipe grinders. And do they arise? Then you can easily grind them away with the built-in deburring table. You can easily and quickly change grinding rollers without tools. In this way, you work accurately and with maximum efficiency. Enhance the quality of your welded structures through proper preparation. Milling pipes is expensive and time-consuming, but cutting translates into shorter preparation times and lower production costs. The ALMI pipe grinder can cut square, rectangular and round pipes with different wall thicknesses and is suitable for all common types of materials.

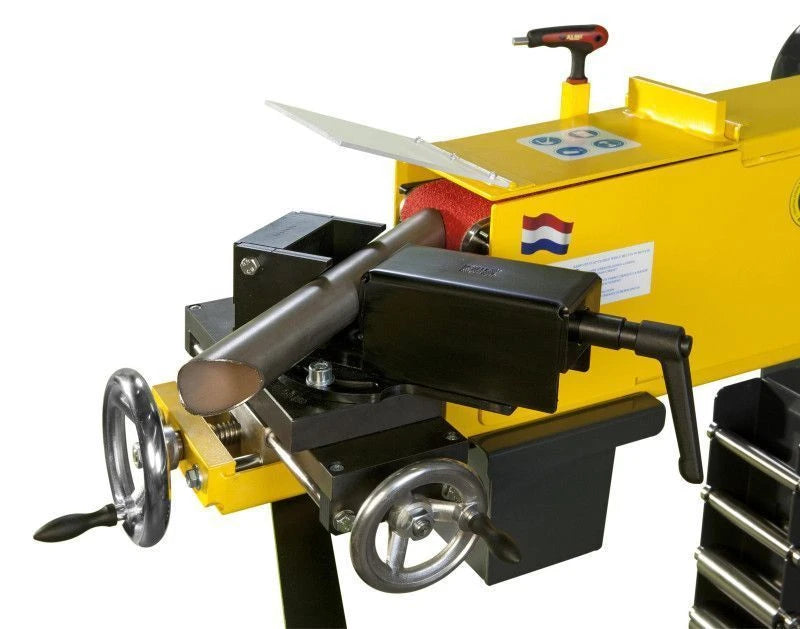

There are two versions of the 100 series. The AL100U-01 is equipped with lever operation. The AL100U-02 is equipped with two hand wheels or a lever. Both options are available on the machine. With the AL100U-01 and AL100U-02, you can grind material from ø20 to ø76.1 mm. The cross support and the carriage with a rotating clamp are infinitely adjustable. All tube profiles can be ground out at any desired angle from 30° to 90°. The AL100U-01 / 02 grinds square, rectangular and round pipes with different wall thicknesses and is suitable for all common types of material. The grinding belt can be tensioned quickly, and grinding rollers can be changed in just a few seconds.

ALMI pipe grinders offer added value through the certainty of years of problem-free, accurate and fast pipe processing. Because ALMI pipe grinders are sold worldwide, this proves the guarantee of excellent quality products. ALMI also strives for the continuity of product development processes and innovations. To provide you with the latest and best-developed pipe grinders at all times.

Features

• Motor: 3 kW
• Belt speed: 30m/sec
• Grinding angle: 30° - 90°
• Weight: 220 kg
• Dimensions: 1450x1150x650 mm

Specification

Datasheet
