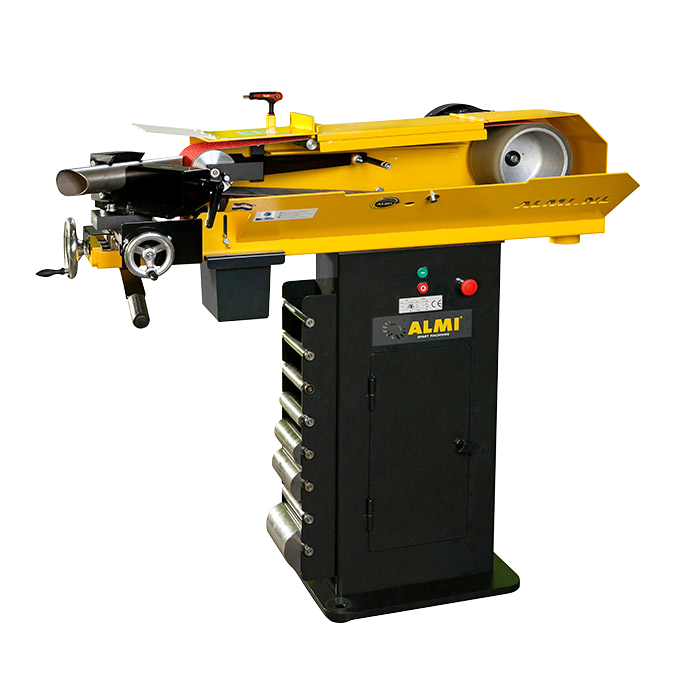

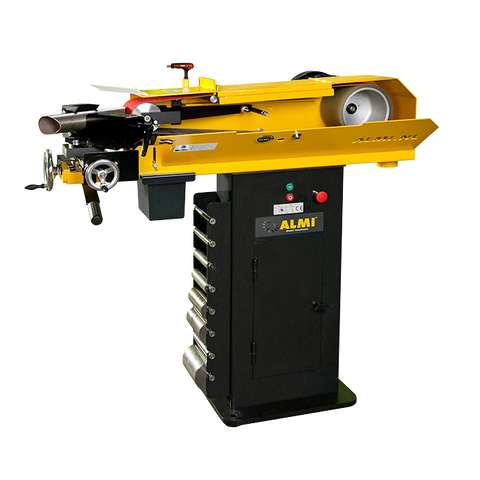

JEi SteelBeast AL150 Belt Sander & Grinder

JEi SteelBeast AL150 Belt Sander & Grinder - Cutting precise cutouts in pipes

Enhance the quality of your welded structures through proper preparation. Milling pipes is expensive and time-consuming, but cutting translates into shorter preparation times and lower production costs. The ALMI pipe grinder can cut square, rectangular and round pipes with different wall thicknesses and is suitable for all common types of materials.

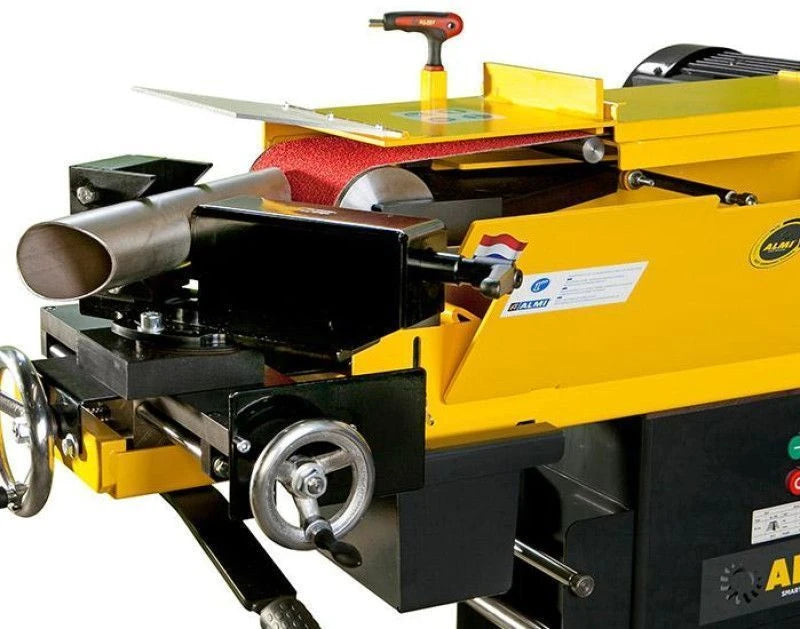

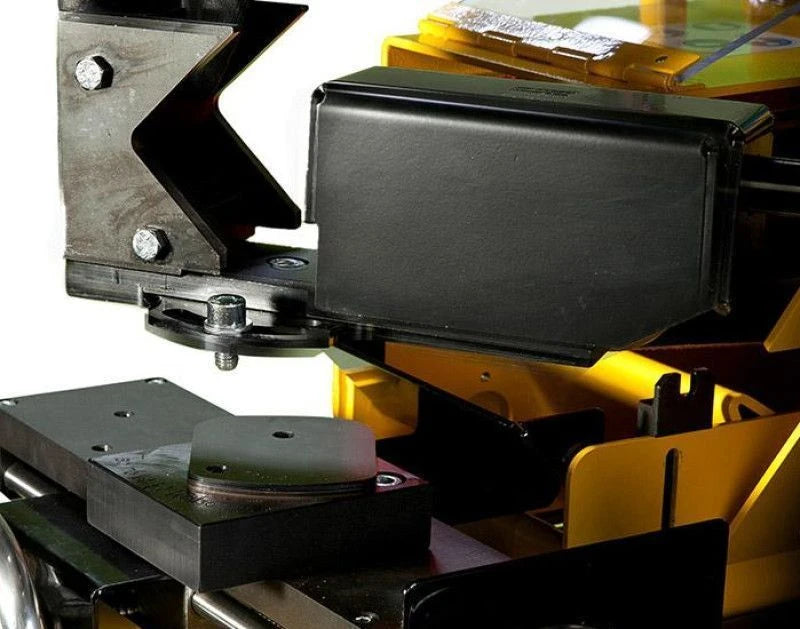

The AL150 has the choice of being operated using two handwheels or using a lever. Both options are available on the machine. With the AL150, you can grind material from ø20 to ø114.3 mm. The cross support and the carriage with a rotating clamp are infinitely adjustable. All tube profiles can be ground at any desired angle from 20° to 90°. The AL150 grinds square, rectangular and round pipes with different wall thicknesses and is suitable for all common types of material. The grinding belt can be tensioned quickly, and grinding rollers can be changed in just a few seconds.

ALMI pipe grinders offer added value through the certainty of years of problem-free, accurate and fast pipe processing. Because ALMI pipe grinders are sold worldwide, this proves the guarantee of excellent quality products. ALMI also strives for the continuity of product development processes and innovations. To provide you with the latest and best-developed pipe grinders at all times.

Features

• Grinds any desired diameter
• Grinds any desired diameter
• Grinds all common types of materials
• Suitable for pipes and sections
• Fast and cost-effective
• Precise
• Sustainable
• Grinds at any angle between 30° and 90°
• Pipe grinder and belt grinder in one
• Deburring table on top of the machine
• Connection points for dust extractor

Specifications

Datasheet
