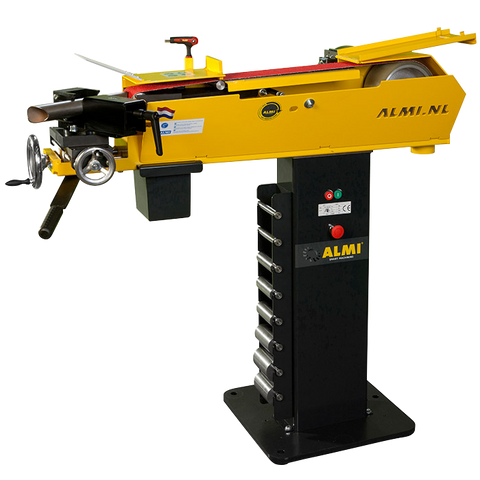

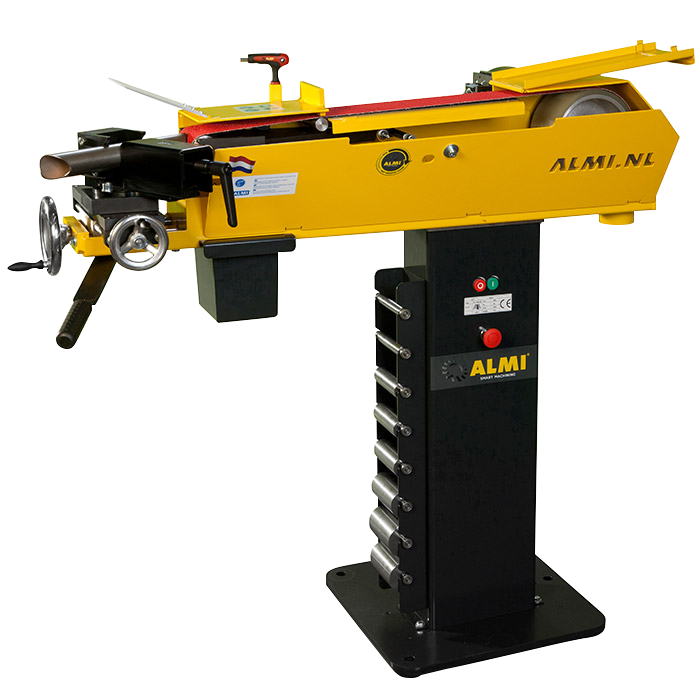

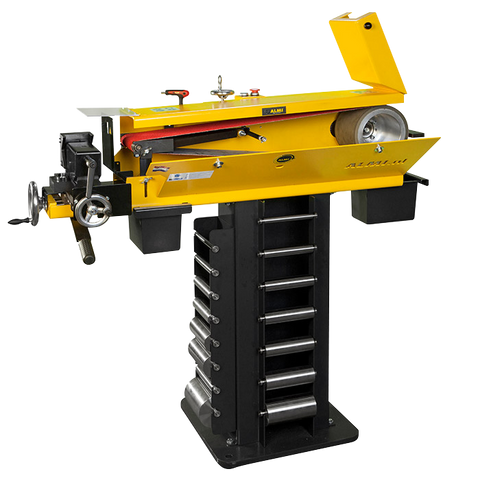

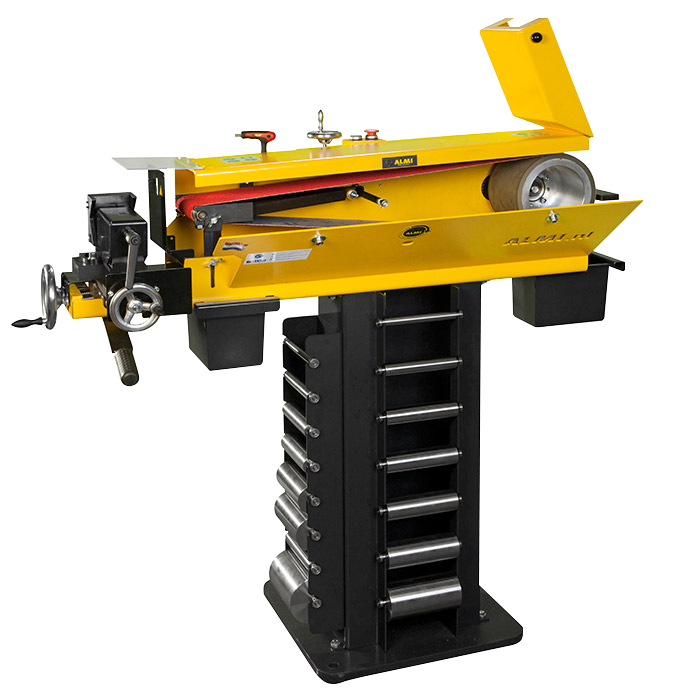

JEi SteelBeast AL150HS Belt Sander & Grinder

JEi SteelBeast AL150HS Belt Sander & Grinder - Grinds all common types of materials.

The AL150HS is a 2 in 1 machine; belt sander and pipe grinder in one. This machine has a unique transmission that brings the belt speed to 45 meters per second. As a result, you can grind three times faster, and the sanding belt has up to 3 times longer life than other pipe grinders. This machine is suitable for steel, stainless steel, aluminum, Inconel and plastics.

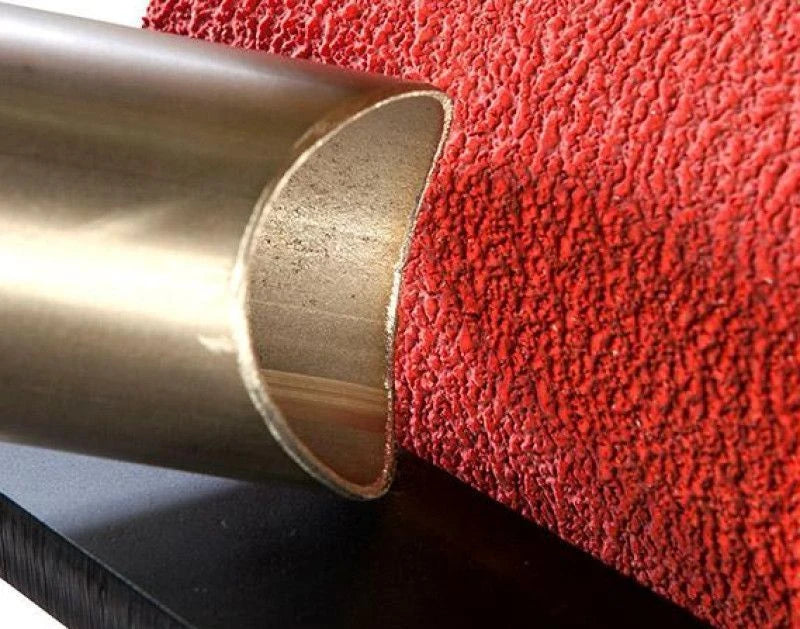

ALMI pipe grinders offer added value through the certainty of years of problem-free, accurate and fast pipe processing. Because ALMI pipe grinders are sold worldwide, this proves the guarantee of excellent quality products. ALMI also strives for the continuity of product development processes and innovations. To provide you with the latest and best-developed pipe grinders at all times. Enhance the quality of your welded structures through proper preparation. Milling pipes is expensive and time-consuming, but cutting translates into shorter preparation times and lower production costs. The ALMI pipe grinder can cut square, rectangular and round pipes with different wall thicknesses and is suitable for all common types of materials.

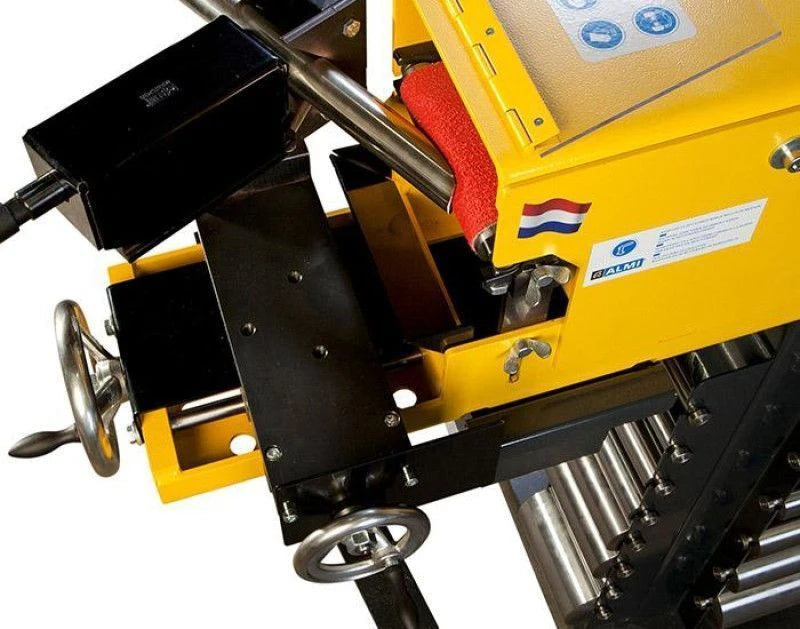

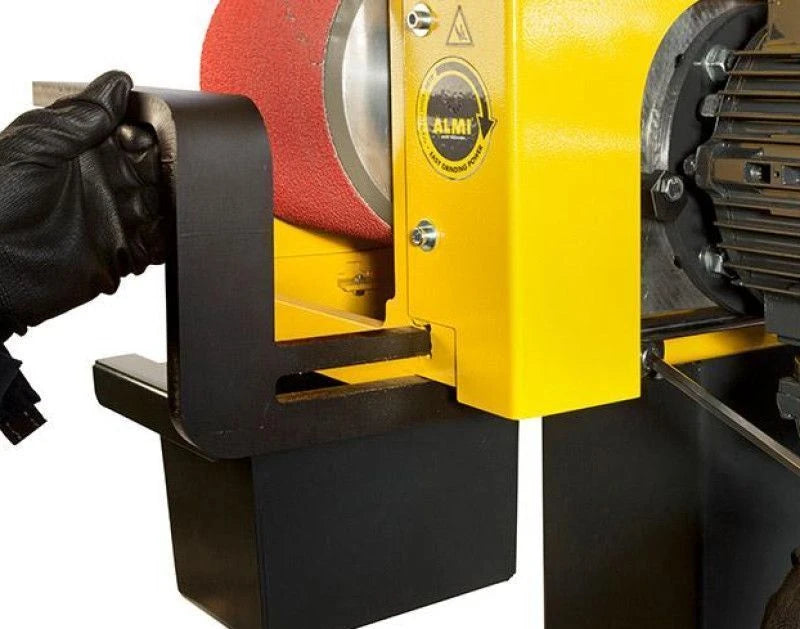

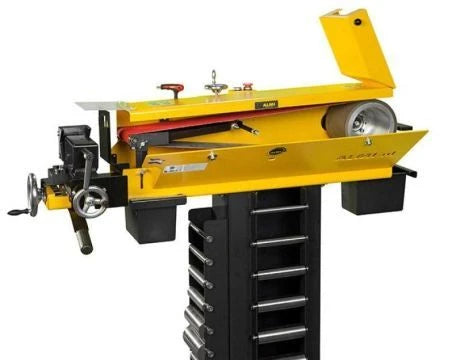

The new AL150HS has a belt speed of 45 m/s due to its unique transmission. When you open the rear cover, you can also use the pipe grinder as a belt sander, ideal for deburring cut profiles. The AL150HS has the option of being operated by means of two handwheels or by means of a lever. Both options are available on the machine. With the AL150HS you can grind material from Ø20 to Ø114.3. The cross support and the slide with rotatable clamp are infinitely adjustable. This allows all pipe profiles to be ground at any desired angle from 20° to 90°. The AL150HS grinds square, rectangular and round pipes with different wall thicknesses and is suitable for all common material types. It is now even easier to adjust the grinding belt with the supplied hex wrench. The grinding belt can be quickly tensioned and grinding rollers can be changed in just a few seconds.

Features

• Grinds any desired diameter
• Grinds any desired diameter
• Grinds all common types of materials
• Suitable for pipes and sections
• Fast and cost-effective
• Precise
• Sustainable
• Grinds at any angle between 30° and 90°
• Pipe grinder and belt grinder in one
• Deburring table on top of the machine
• Connection points for dust extractor

Specifications

Datasheet
