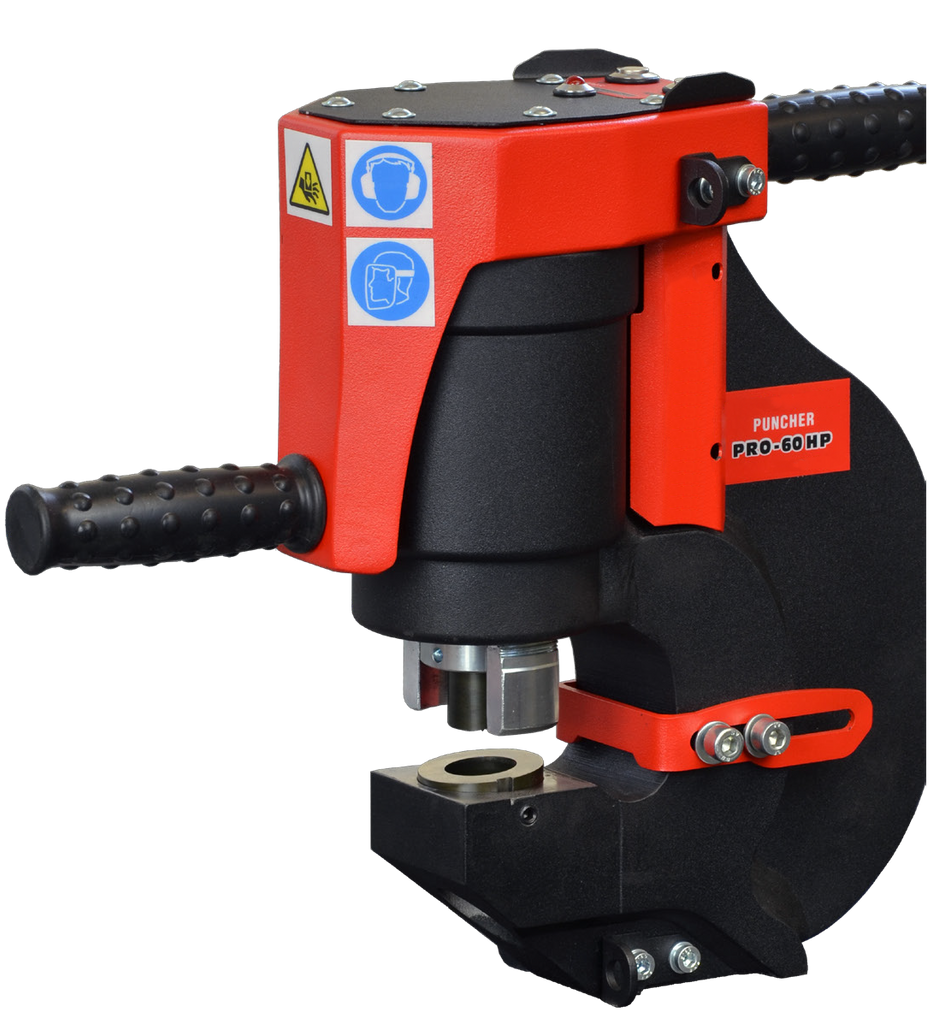

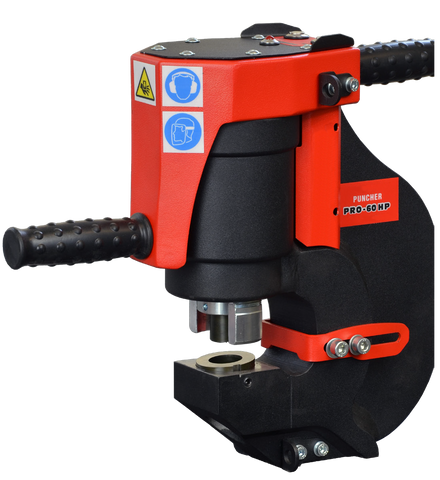

JEi SteelBeast HP60 Portable Hydrolic Puncher Machine
Portable, Double-Action Hydraulic Puncher Designed for Punching Holes.
The SteelBeast® HP60 punching machine offers a fully automated process of punching and return through it's intelligent control system with inching and automatic load detection. Featuring a 27 mm diameter capacity, through up to 13 mm thickness of steel, with a 60 mm maximum throat depth. Customise your punching machine with our optional accessories to unlock further capabilities, such as punching in both horizontal and vertical position or punching hands free, improving your punching efficiency.
Features / Benefits:
-
Wide range of hole diameters up to 27mm through 13mm thick plate
-
Intelligent control system with inching and automatic load detection
-
Mode indicator light
-
Protection against accidental start up
-
All connection ports located at the back
-
Broad range of special shaped punches and dies
-

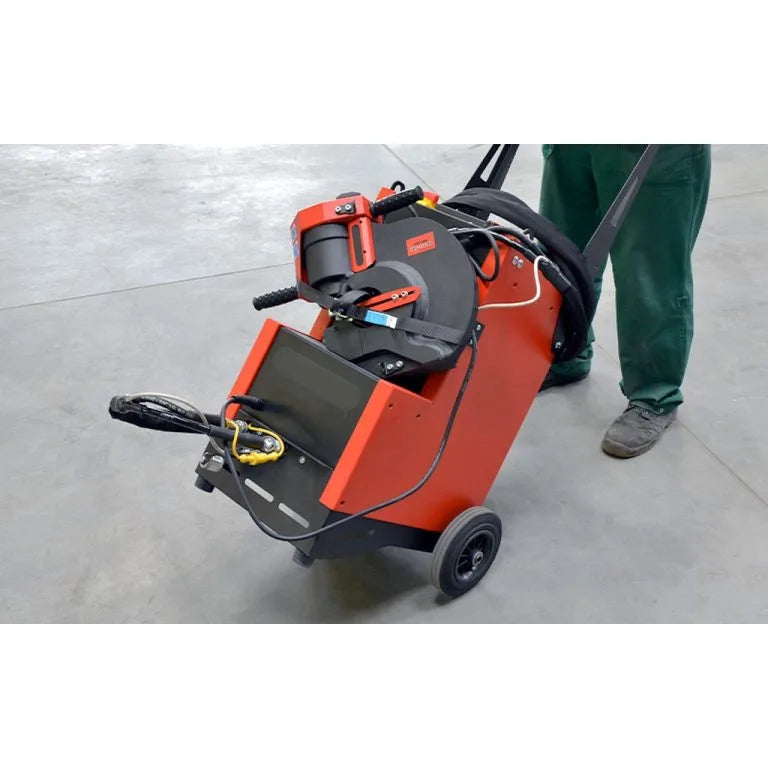

Patent pending compact moveable hydraulic power pack
-
Accessible and simple operations for restricted areas
Specifications
| Model | HP60 |
|---|---|
| Motor | 2000 watts |
| Double Action Hydraulic Movement | Yes |
| Height | 388mm |
| Max Hole | 27mm |
| Max Oblong Hole | 25 x 18mm |
| Max Thickness | 13mm |
| Max Throat Depth | 60mm |
| Net Weight | 20kg |
| Punching Time | 5 seconds |
| Punching Power | 35 ton |
| Voltage / Part No. | 115V or 230V |
| Working Pressure | 700 bar |
