JEi Vac Pads
Providing the ability to drill on non-magnetic, curved or thin surfaces. The Vac Pad enables magnetic drilling machines to effectively operate on non-ferrous material, providing the ability to drill on non-magnetic, curved or thin surfaces.
- Requires compressed air pressure (maximum 120 PSI)
- 2 sizes available to cover the complete JEI range of magnetic drilling machines
- New larger version (JEIVPAD-L) allows smaller machines to drill in multiple positions without moving fixture

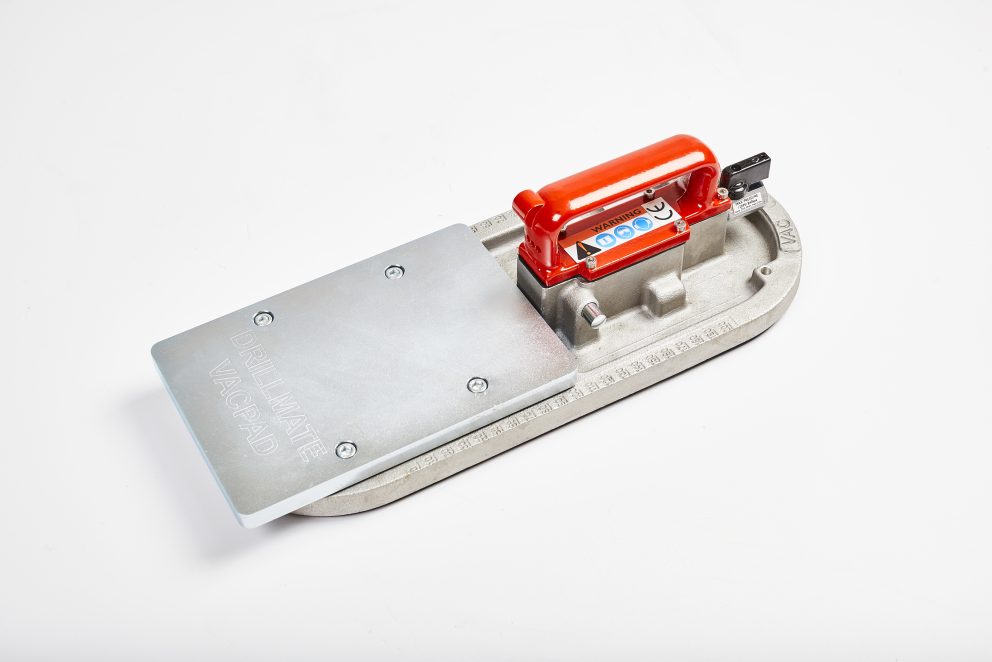

Small Vac Pad-
Magnetic Base Footprint-200mm x 135mm
Use with any magnetic drilling machine with a magnetic base dimensions within the footprint size.

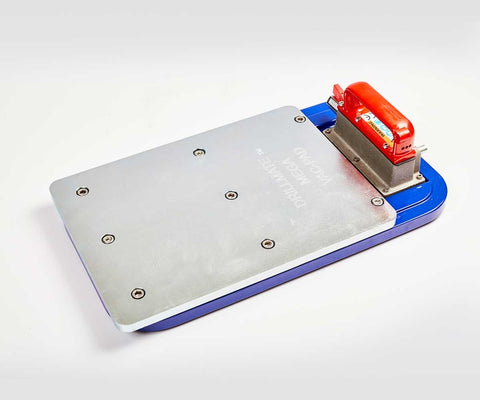

Large Vac Pad-
Magnetic Base Footprint-300mm x 250mm
Use with any magnetic drilling machine with a magnetic base dimensions within the footprint size.
Cutting Non Magnetic Materials with a Portable Magnetic Drill
The JEI Vac Pad is an effective solution to allow a magnetic drilling machines to cut holes in non ferrous materials, providing the ability to accessorise your machine to cut on non magnetic or thin materials.
