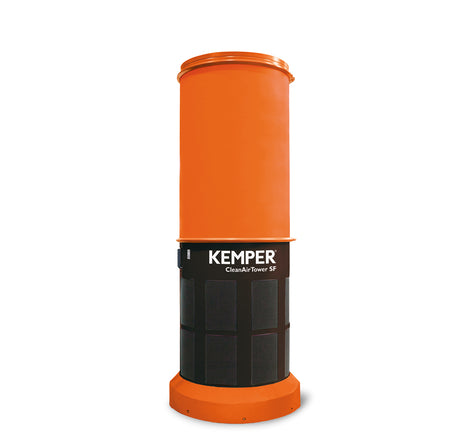

Kemper 390450 CleanAirTower SF 9000 hall ventilation with storage filter

Kemper 390450 CleanAirTower SF 9000 hall ventilation with storage filter - Hall ventilation with storage filter and 9,000 m³/h extraction capacity

The ventilation system CleanAirTower is used wherever local extraction does not work or is insufficient. The CleanAirTower SF 9000 is equipped with a disposable filter. It effectively protects employees and machines from fine dust. The purified air is recirculated. The device hardly creates any air turbulence, ensuring that no dust is distributed into clean areas. The CleanAirTower functions according to the displacement ventilation principle recommended by health and safety bodies. *The cloud function and use are free for the first 6 months.

Features

• Low to medium levels of smoke and dust
• Workshops where local exhaust ventilation is not possible
• To complement local exhaust ventilation systems
• Environments with changing sources of smoke and dust
• Workstations, Workshops, Logistic and distribution centres
• Low risk potential due to foreign bodies
• Fleet management, remote maintenance and pre-noise maintenance using autarkic networking via mobile radio to the KEMPER cloud*
• Minimization of heating costs due to air recirculation and air distribution
• Cost-effective installation or retrofit, as no ductwork is needed
• Short-term increase in extraction performance due to TurboBoost function
• 360 degree extraction radius
• KEMPER-Cloud connection via mobile network*
• Slow, low-impulse air circulation
• Displacement flow principle, recommended by health and safety bodies
• Control via touch panel
• System barely generates air turbulence
• TurboBoost Function

Mode of Operation

• Extraction of ambient air via an integrated ventilator
• The cleaned air is returned to the workspace by low level outlets
• The warm cleaned air directs the welding smoke again towards the inlet grills and so, a slow air circulation and at the workstations is created.
