New modular system, which enables the right equipment for all applications

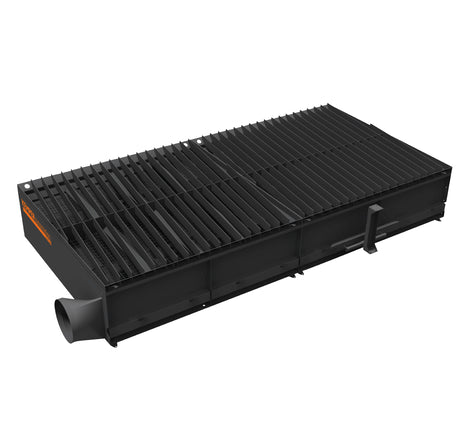

The KemTab extraction and cutting table is a solid and flexible solution for your plasma cutting operations with a capacity of up to 300 A and for materials up to 150 mm thick when using gas cutting. The modular design means many different table sizes can be created. Large slag trays ensure quick cleaning at longer cleaning intervals.
- For plasma cutting up to 300 amps
- For flame cutting with steel plates up to 150 mm
- No external follow-up costs caused by in-house production of wear parts due to easyFRAME
- No cleaning or maintenance required on the material support as it can be easily replaced (easyFRAME)
- Time and cost savings when cleaning the table due to large slag trays and thus longer cleaning intervals
- Energy cost savings due to low extraction volume thanks to individual control of the extraction dampers of the section in use.
- Integrated spark elimination for more safety
- Thanks to the modular design, any table size can be created
- The new modular system, which enables the right equipment for all applications. This offers configuration options from a low-cost entry (for lower requirements) up to a fully equipped table (for high requirements)
- Innovative new flap system optimized for air technology
- Various control options of the extraction damper in the individual table segments (Mechanical / Mechanical – Pneumatic / E – Pneumatic)
- Adjustable control slide that can be adapted to the different conditions (only with mechanical or mechanical – pneumatic flap control)
- Flow-optimized air guidance for low losses
- Particularly large extraction channel for low resistance
- Welded or interlocking material support (easyFrame)
- Low service requirements due to separation of air flow and external conditions
- Extraction dampers can be controlled by various methods
- Various material support frames
- Various table widths and lengths
Basic data
Table width (Material support)-1.600 mm, 2.100 mm, 2.600 mm, 3.100 mm
Table height-700 mm
Segment distance-515 mm, 690 mm, 1.030 mm
