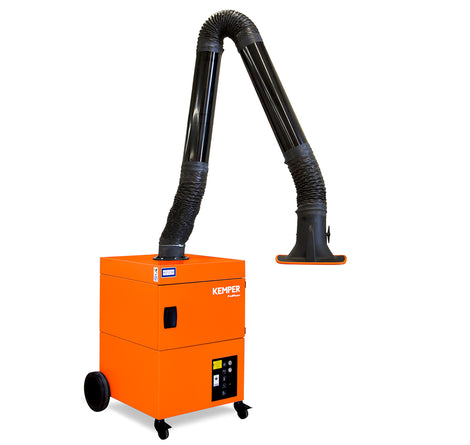

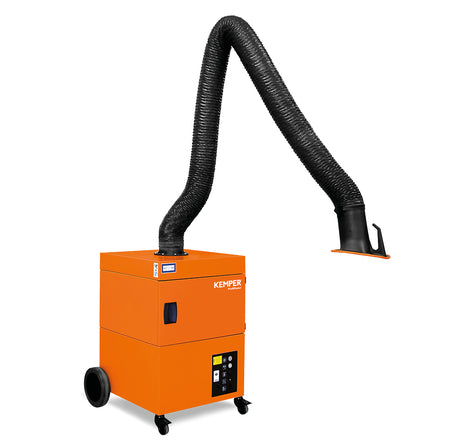

ProfiMaster Welding Smoke Filter Unit
Welding smoke filter unit in robust quality with high capacity filter W3 2metre flexible arm
ProfiMaster is a robust smoke extraction filter unit for occasional to frequent use with low to medium amounts of dust. The high capacity disposable filter can easily be changed. The rotating and swivelling exhaust hood enables use in a 360-degree radius and ensures only few adjustments during welding.
Applications Suitable for all materials, including high-alloy steel Low to medium levels of smoke and dust Occasional to frequent use Benefits Safe operation by rotation field control Maintenance door allows easy filter change Exhaust arm requires less adjustment due to flow optimised exhaust hood design Increased safety due to filter monitoring Properties Exhaust arm up to 4 m Rotating exhaust hood
- Accessories - Automatic start-stop
- Other voltages
Technical Data
Filter
Filter stages - 2
Filter method - Storage Filter
Filter surface - 17 m²
Type of filter - Filter cassette
Filter material - Non-woven fibre
Filter efficiency - > 99.5 %
Filter class - E12
Additional filters - Pre-filter
Basic data
Extraction capacity - 1100 m³/h
Maximum vacuum - 2100 Pa
Dimensions (w x t x h) - 797 x 828 x 977 mm
Weight = 109 kg
Motor power - 1.1 kW
Power supply - 3 x 400 V / 50 Hz
Rated current - 2.3 A
Control voltage - 24 V, DC
Noise level - 72 dB(A)
Additional information
IFA Certification - W3-Approved
Fan type - Radial fan
Quantity of extraction arms -1
Exhaust arm type - flexible exhaust arm
Diameter extraction arm - 150 mm
Length of exhaust arm - 2-4m.
