For regular use with disposable filter

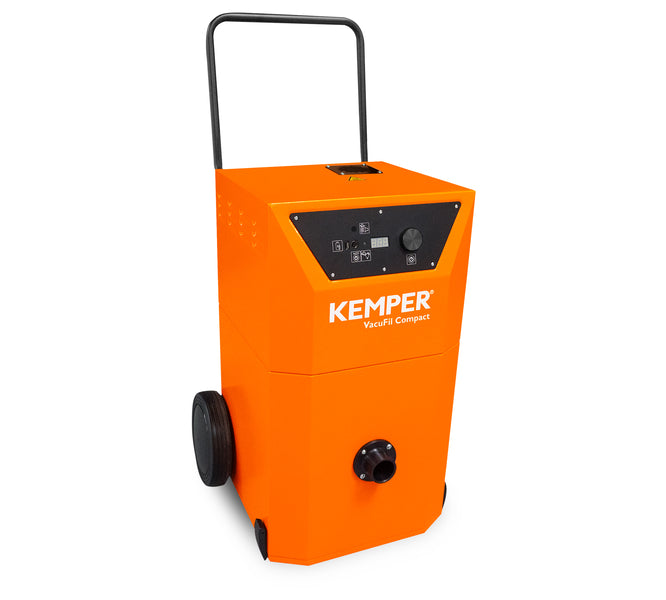

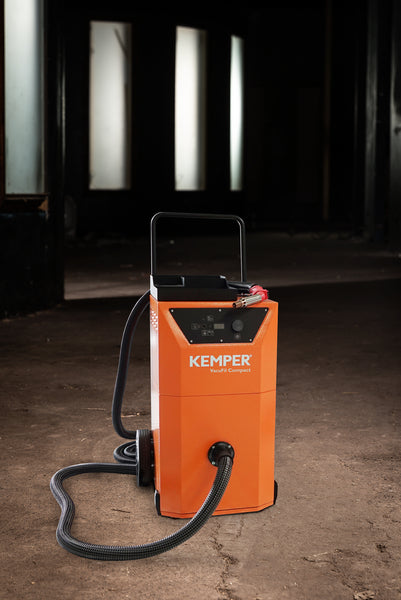

The high vacuum extraction unit VacuFil Compact is designed for medium quantities of welding fumes and dust. It has a large disposable filter and comfortable one-button operation, even with gloves. Many additional features such as automatic air volume control are available. The side channel blower for negative pressure provides robust performance for industrial users.
Features and Benefits:
- Stepless Preselection: Allows for the use of various extraction torches.
- One-Button Operation: Intuitive design that can be operated even with gloves on.
- Cost-Effective: Offers an outstanding price-performance ratio with a plethora of features.
- High Extraction Capacity: Achieved through the side channel blower.
- Compact Design: Ideal for changing workplaces.
- Monitoring: The unit monitors the extraction rate.
- Accessories: Enhancements include automatic start-stop, automatic air volume control, tool tray with cup holder, suction hose, slot and funnel nozzle, and connectors for welding torches.
Properties
- Large filter surface
- Side channel blower
- KemTex PE-M Cartridge Filter
- Intuitive one-button operation
- Stepless air volume selection
- USB Type-A charging socket
- Compact design
- Monitoring of the extraction rate
Applications
- Medium levels of smoke and dust
- Regular use
- Torch extraction
- Alternating work places
Accessories
- Automatic start-stop
- Automatic air volume control
- Tool tray with cup holder
- Suction hose
- Slot and funnel nozzle
- Connector for welding torches
Filter
| Filter stages | 1 |
|---|---|
| Filter method | Storage Filter |
| Filter surface | 6.7 m² |
| Type of filter | Filter cartridge |
| Filter material | PE-M membrane |
| Filter efficiency | > 99.9 % |
| Dust classification | M |
Basic data
| Max. extraction capacity | 160 m³/h |
|---|---|
| Extraction performance at 18000 Pa | 50 m³/h |
| Maximum vacuum | 24000 Pa |
| Dimensions (w x t x h) | 589 x 625 x 1191 mm |
| Weight | 60 kg |
| Motor power | 1.5 kW |
| Power supply | 1 x 230 V / 50 Hz |
| Rated current | 13 A |
Additional information
| IFA-Certification | W3-Approved |
|---|---|
| Fan type | Side channel blower |
| Hose connection | Ø 45 mm |
| Air outlet | 63 mm |
