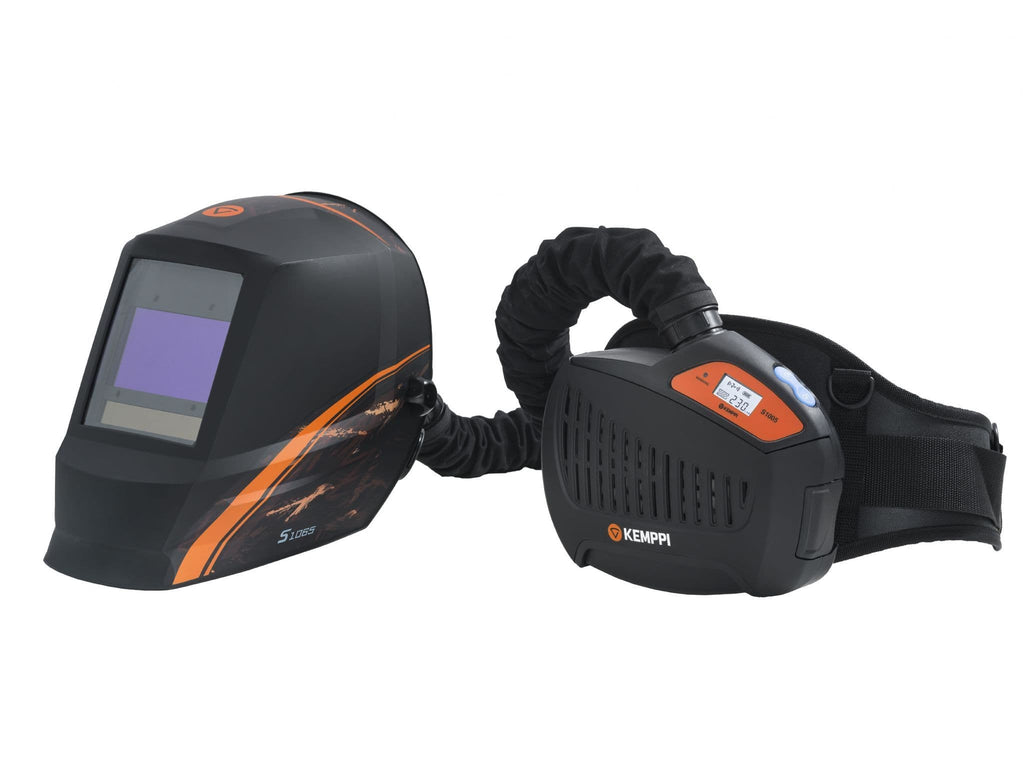

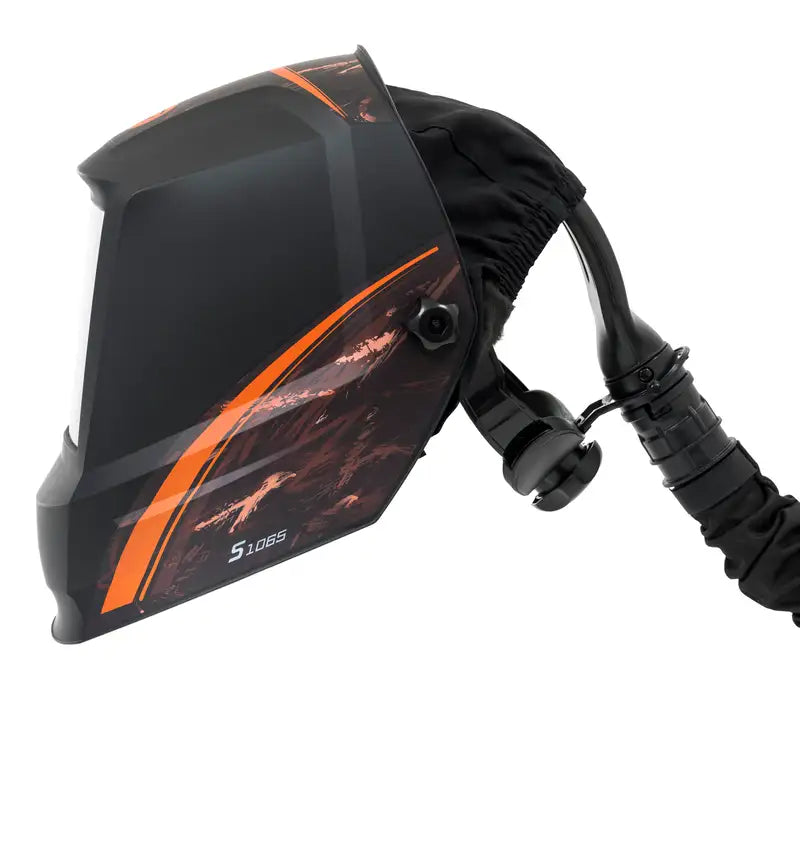

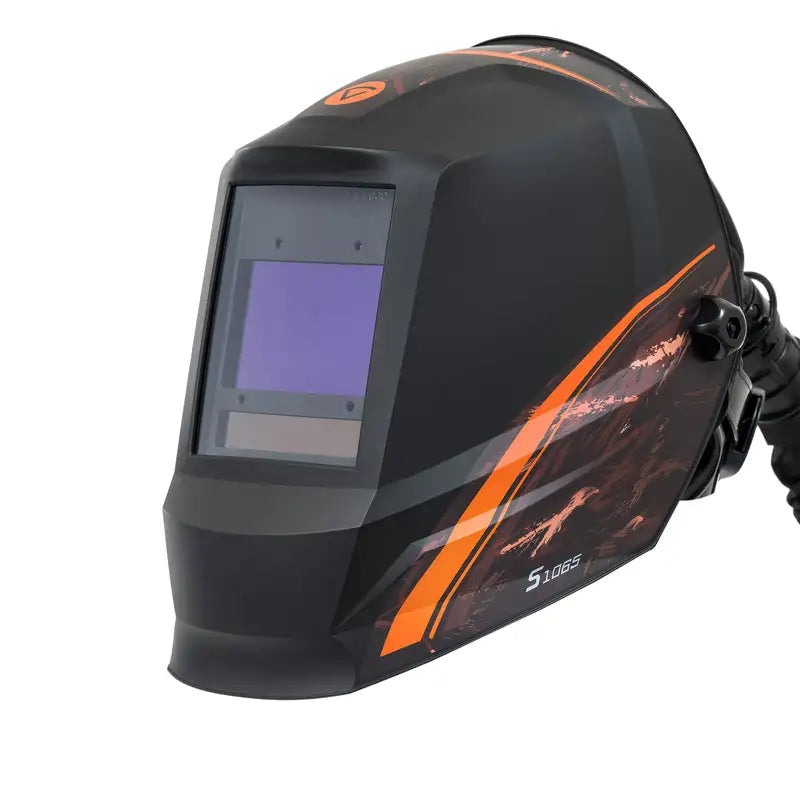

Kemppi 9875065 Fresh Air System/Auto Darkening Helmet S1065
Designed to perform in tough environments. The TH3-class air filtration system removes 99.8% of particles and dust. The large viewing area offers clarity in all situations (1/1/1/1). The B impact-rated shell provides superb shielding.
Features
- TH3-level breathing protection
- Intelligent fan unit with LCD display with three airflow speed levels (170, 200, and 230 liters/minute)
- 100 x 60 mm ADF with 4 sensors
- EN 175B impact-rated welding mask
Technical Data
| Welding filter type | S006 |
| ADF view size (mm) | 100x60 |
| ADF switching time | 0.1 ms |
| ADF light state | 4 |
| ADF shade range | 9-13 |
| ADF sensors | 4 |
| ADF UV/IR protection | At all times |
| ADF battery type | 2xCR2450 |
| ADF remote control | No |
| ADF classification | 1/1/1/1 |
| LED light | No |
| Grind mode | Yes |
| Flip-up visor | No |
| Impact rate | B |
| Hard hat | No |
| Interface for earmuffs | No |
| Operating temperature | -5 ... 55 °C |
| Storage temperature | -10 ... 60 °C |
| Recommended maximum humidity for use | 90 % |
| Weight without accessories | 800 g |
| Standards | DIN EN 175:1997-08, DIN EN 379:2009-07, AS/NZS 1337.1, AS/NZS 1338.1 |
| FA: Air supply / respirator unit | 9875065 |
| FA: Air supply / respirator unit air filter | P R SL; PAPR-P3 |
| FA: Air supply / respirator unit belt size | 130 cm |
| FA: Respirator unit battery type and voltage | Rechargeable Li-ion 4400 mAh |
| FA: Respirator unit battery life, average, with filters | 1. speed >8h, 2. speed >6h, 3. speed >4h |
| FA: Minimum airflow | 170 l/min |
| FA: Maximum airflow | 230 l/min |
| FA: Weight, air supply / respirator unit | 1.1 kg |
| Respiratory protection level | TH3 |
