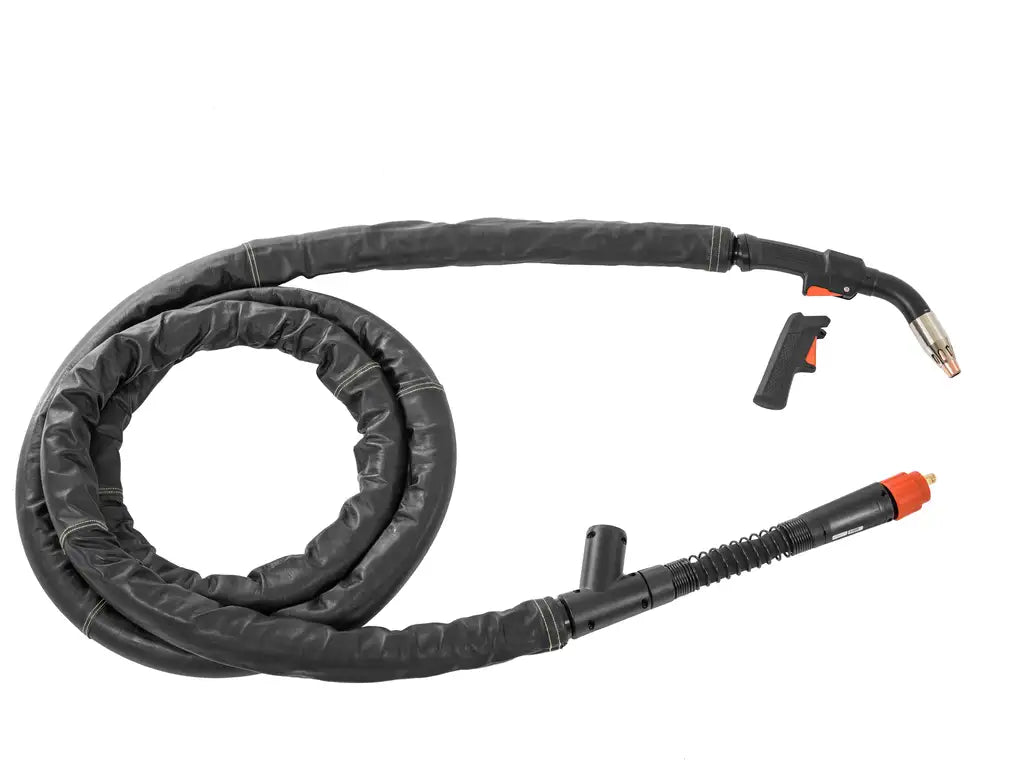

Kemppi Flexlite GF K3 303G Air Cooled 300A Fume MIG Gun with Euro Connection
A gas-cooled 300 A fume extraction MIG/MAG welding torch with Euro connector. Cable length options are 3.5 and 5 meters.
*Torch fitted with 1.0mm contact tip and 0.9 – 1.2mm Wire Liner for Steel.*
GRIP ON SAFETY
The Flexlite GF product series consists of several MIG/MAG welding guns with a fume extraction function. The efficient vacuum system extracts the welding fumes directly from the gun nozzle without disturbing the shielding gas flow, thus providing a safer and cleaner working environment for the welder as well as for others sharing the working environment.

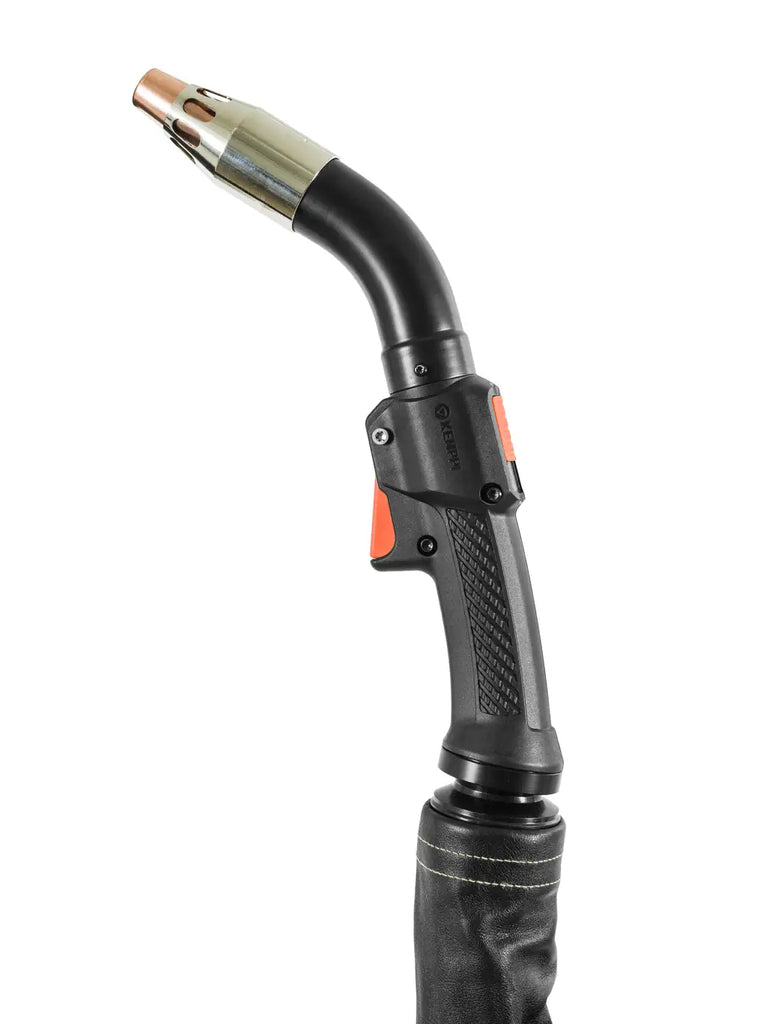

The Flexlite GF is available in water and gas-cooled versions, both featuring excellent ergonomics provided by the detachable pistol grip handle. The design and the shape of the grip handle make it a delight to hold. All Flexlite GF models enjoy the Flexlite features for user comfort, welding efficiency and extended consumable part life.
- Fume extraction improves the safety of all people working in the vicinity
- It also protects fume-sensitive equipment in the workplace
- All fume extraction gun models and their extraction efficiencies have been measured according to the new standard, ISO 21904-3
- According to Standard ISO 21904-3, 95% of welding fumes are removed from the air
- A detachable, ergonomic pistol grip handle is included in every product package
- The anatomically designed handle gives a firm grip
- An extremely lightweight gun and well-balanced gun shape make welding work easier
- Uses the same consumable parts as Flexlite GX MIG gun models
- Fewer consumables mean lower inventory costs
- Genuine Kemppi consumables guarantee a long lifetime
- All models are equipped with a QR code that takes you directly to relevant information
Technical Data
| Welding connection type | Euro |
| Filler wire diameter | 0.8 ... 1.2 mm |
| Filler wire diameter, Fe | 0.8 ... 1.2 mm |
| Filler wire diameter, Fe-MC/FC | 0.9 ... 1.2 mm |
| Filler wire diameter, Ss | 0.8 ... 1.2 mm |
| Filler wire diameter, Ss-MC/FC | 0.9 ... 1.2 mm |
| Filler wire diameter, Al | 0.8 ... 1.2 mm |
| Type of cooling | Air |
| Contact tip | M10x1 |
| Method of guidance | Manual |
| Load capacity 35% / Ar + 18% CO₂ | 300 A |
| Load capacity test, filler wire diameter | 1.2 mm |
| Load capacity test, stick out length | 18 mm |
| Load capacity test, gas flow | 15 l/min |
| Gun handle | Yes |
| Neck type | Standard |
| Neck dimensions: length | 130 mm |
| Neck dimensions: height | 90 mm |
| Neck dimensions: angle | 45 ° |
| Welding torch cable length | 3.5 m |
| Remote control | No |
| Fume capture efficiency (ISO 21904-3) | 84 % |
| Fume extraction pressure difference | 5500 Pa |
| Minimum fume extraction flow rate | 57 m³/h |
| Operating temperature | -20 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Standards | IEC 60974-7, ISO 21904-3 |
