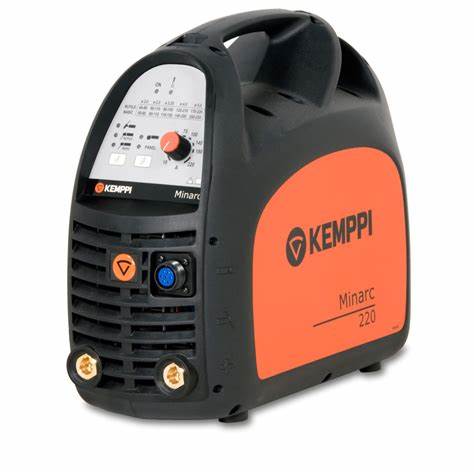

KEMPPI MINARC EVO 220 220A 400V 6102220
All MMA Packages include MMA Lead, Earth Lead, 5.0Kg Pkt 6013 Electrodes, Wire Brush, Chipping Hammer, Welders H/Duty Gauntlets, French Chalk & Holder.230V 16Amp Plug fitted with 13Amp Adaptor Lead, (415V 16/32Amp, 4/5Pin)
3 Year Warranty Pre-Registered
LITTLE GIANTS OF THE MMA WELDING WORLD
Minarc 150, 180 and 220 Classic MMA welding machines are light in weight, robust, durable and impact resistant, ideal for workshop and site environments.
Superior arc performance based on high voltage reserves and automatic ‘Arc Force’ control, guarantee the arc will remain stable in all welding positions, even when connected with extra-long welding and power cables, up to 100m.
Automatic Hot Start gives perfect ignition in all conditions and the Anti-sticking function decreases the risk of the MMA electrode sticking to the base material and aids short arc control. Protection against overload, humidity and dust ingress, gives excellent reliability, and TIG welding is made possible with the scratch -TIG function and GV TIG torches. Minarc 220 features a remote-control option.
Specified Minarc Classic models feature VRD function (Voltage Reduction Device), lowering the open circuit voltage for welding environments that may present wet, damp or humid conditions. Minarc 151 Classic is designed to be used with 110V site transformers.
BENEFITS
- Excellent welding quality and ignition
- 1ph 230V, 110V and 3ph 400V models
- Automatic dynamics feature
- Lightweight and high power
- Excellent work duty performance
- VRD model options
- Scratch TIG feature
- Ready to weld packages Minarc 220 is a 400V 3-phase, 220 A DC MMA welding power source, offering a truly portable specification for welding technicians on the move. This little powerhouse comes with everything you need to start welding
Technical Data
| Mains connection voltage | 400 V -20...+15 % |
| Mains connection phases | 3~50/60 Hz |
| Mains connection cable type | 4G, H07RN-F |
| Mains connection cable size | 1.5 mm² |
| Rated maximum input power [S1max] | 8.2 kVA |
| Mains fuse | 10 A |
| No-load state power consumption (MMA), power save | 40 W |
| Output, duty cycle % at rated max. current, TIG | 35 % |
| Output at +40 °C, rated max current, TIG | 220 A |
| Output at +40 °C, 60% TIG | 180 A |
| Output at +40 °C, 100% TIG | 160 A |
| Output, duty cycle % at rated max. current, MMA | 35 % |
| Output at +40 °C, rated max current, MMA | 220 A |
| Output at +40 °C, 60% MMA | 170 A |
| Output at +40 °C, 100% MMA | 150 A |
| Power factor at rated maximum current [λ] | 0.91 |
| Efficiency at rated maximum current [η] | 86 % |
| EMC class | A |
| Minimum short-circuit power of supply network [Ssc] | 1.6 MVA |
| Welding connection type | DIX |
| Recommended minimum generator power [Sgen] | 15 kVA |
| Degree of protection (fully installed) | IP23S |
| External dimensions, length | 400 mm |
| External dimensions, width | 180 mm |
| External dimensions, height | 340 mm |
| Weight without accessories | 10.2 kg |
| Standards | IEC 60974-1, -10 |
