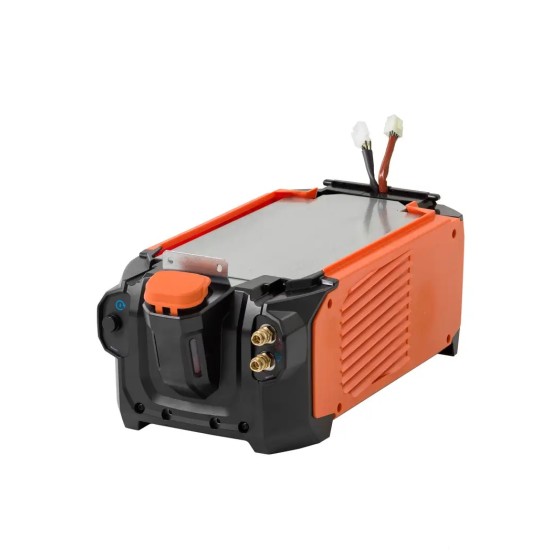

Kemppi MSMC05M Master Cooler 05M
Cooling unit for easy, fast, and convenient coolant filling with integrated LED lighting for cooling liquid levels. Suitable with Master M 205/323 and Minarc T 233 power sources.
The Master Cooler 05M is a compact and efficient water cooling unit designed for professional TIG welding applications. It features easy, fast, and convenient coolant filling with integrated LED lighting to clearly indicate cooling liquid levels, improving usability and maintenance.
With low idle power consumption and reliable cooling performance, the Master Cooler 05M is ideal for workshops and industrial environments where consistent torch cooling is essential.
Key Features
- Water cooling unit for TIG welding applications
- Integrated LED lighting for coolant level visibility
- Easy and fast coolant filling
- Low idle power consumption (5 W)
- Compact, robust design
- IP23S protection rating
Technical Data
- Supply voltage: 380–460 V ±10%
- Supply voltage (MV low range): 220–230 V ±10%
- Idle power consumption: 5 W
- EMC class: A
- Tank volume: 2.3 litres
- Cooling power at 1 l/min: 0.5 kW
- Maximum coolant pressure: 4 bar
- Recommended coolant: Kemppi MGP 4456
- Operating temperature: -20 to +40 °C
- Storage temperature: -40 to +60 °C
- Degree of protection: IP23S
- Dimensions (L × W × H): 555 × 253 × 215 mm
- Weight (without accessories): 11.5 kg
- Standards: IEC 60974-2, IEC 60974-10
