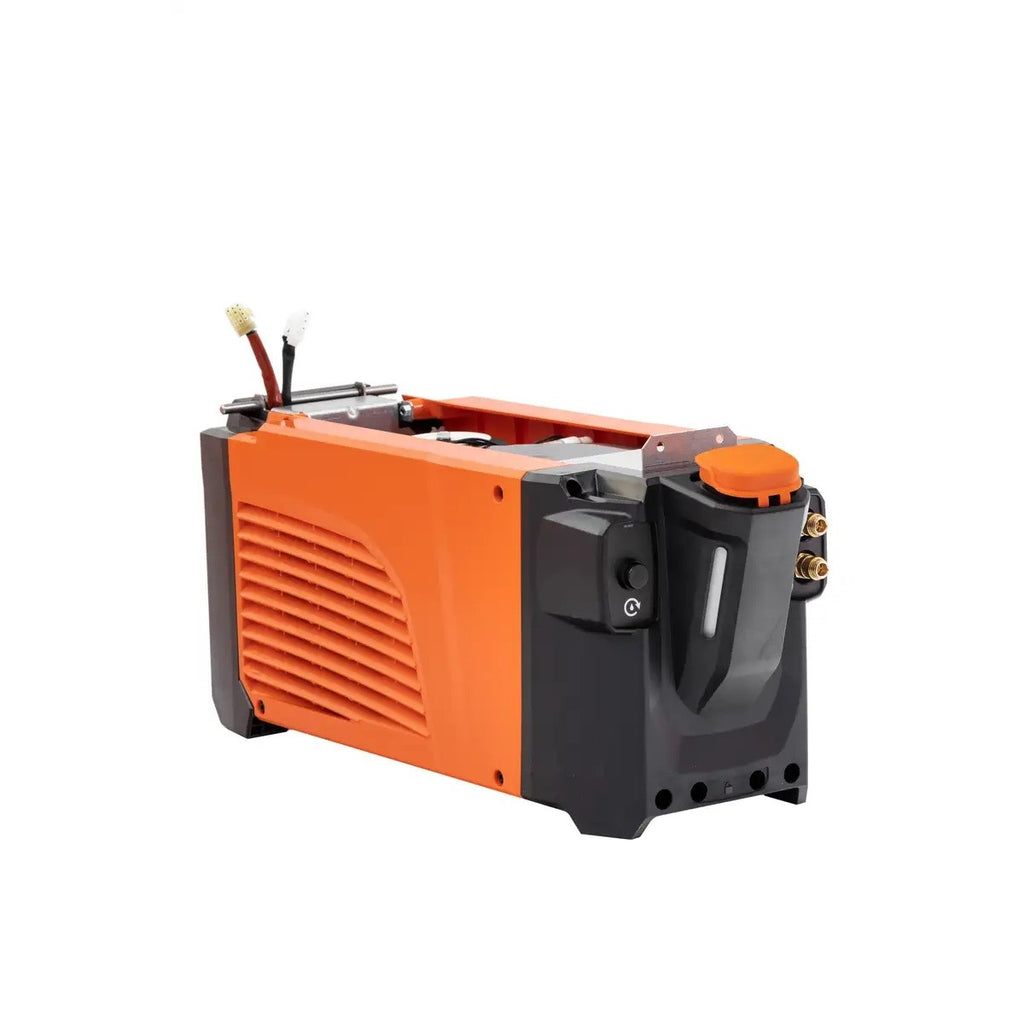

Kemppi MSMC1KW Master M Cooler
The MasterTig Cooler M is a compact water cooling unit designed for use with Kemppi MasterTig TIG welding systems. It provides reliable and efficient cooling for water-cooled TIG torches, helping to maintain stable welding performance and extend torch service life during high-amperage or prolonged welding.
With multi-voltage capability, low idle power consumption, and simple coolant filling, the MasterTig Cooler M is ideal for professional workshop and industrial environments.
Key Features
- Cooling power up to 1.0 kW
- Multi-voltage operation (220–460 V)
- Low idle power consumption (5 W)
- 3 litre coolant tank
- Maximum coolant pressure 4 bar
- Compact, robust design
- Easy and fast coolant filling
- IP23S protection rating
Technical Data
- Supply voltage: 220–460 V
- Cooling power:
- 0.9 kW @ 1 l/min
- 1.0 kW @ 1.6 l/min
- Tank volume: 3 litres
- Idle power consumption: 5 W
- Recommended coolant: Kemppi MGP 4456
- Operating temperature: -20 to +40 °C
- Storage temperature: -20 to +60 °C
- Degree of protection: IP23S
- Dimensions (L × W × H): 615 × 206 × 268 mm
- Weight (without accessories): 12.5 kg
- Standards: IEC 60974-2, IEC 60974-10
