Kemppi MTP35X MasterTig DC, AC/DC 7" TFT Control Panel
Kemppi 7’’ TFT panel, supports DC and AC/DC power sources, The Kemppi MTP35X MasterTig Series 5 Panel features a 7" TFT display for precise control. It offers Double Pulse for faster welding and reduced heat, Optima AC for customizable waveforms, and MicroTack for accurate tacking. ITec ensures reliable arc starts, while Auto Pulse simplifies DC welding. The panel includes WeldAssist for parameter guidance and a Weld Time Clock for tracking. Personalize with a screensaver, and enjoy features like pre/post gas, slope control, and more for optimal TIG welding.
Double Pulse -Double Pulse combines alternative pulse cycles for 30% faster welding speed and 20% reduced heat input. Lowering distortion levels and weld costs,
Double Pulse is ideal for DC hand welding and mechanized applications and offers superb weld seam appearance.
Optima AC -Optima AC is a customized AC TIG waveform that combines the best of the traditional sine and square waveforms – and adds a touch of magic for the optimal AC welding experience. Depending on the application, you’re free to choose either sine, square, or the quiet one: Optima AC.
MicroTack -MicroTack offers fast and accurate tacking with minimum heat input in both DC and AC TIG welding. Ideal for multiple, repetitive tacking on thin sheet applications, where a consistent and controlled appearance is paramount. MicroTack can be set between 1 to 5 repeat pulse cycles or continuous cycle mode. The welding current level is set independently and the arc cycle time selected between 1 to 200 ms.
ITec -ITEC is engineered ignition technology for reliable arc starts. Particularly useful with long torch extensions for site welding or precise thin materials and low current applications, you can set the variable spark force energy.
Auto Pulse -Easy and convenient, the only value to adjust is the welding current itself. Auto Pulse is ideal for applications in DC current.

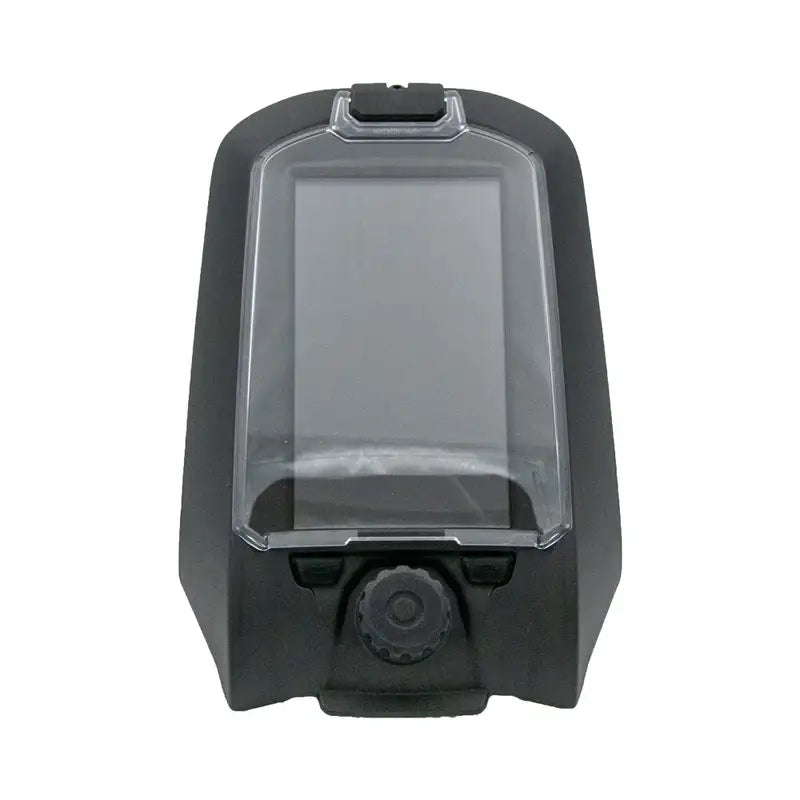

UI control panels -Choose either traditional touch button control panels or the full color 7’’ TFT control panel. Protected by a 3mm armor shield plate, the 7’’ TFT control panel is both impact and scratch resistant, allows fast and accurate parameter setting with WeldAssist, and offers 99 memory channels per process to save the best parameter or WPS values.

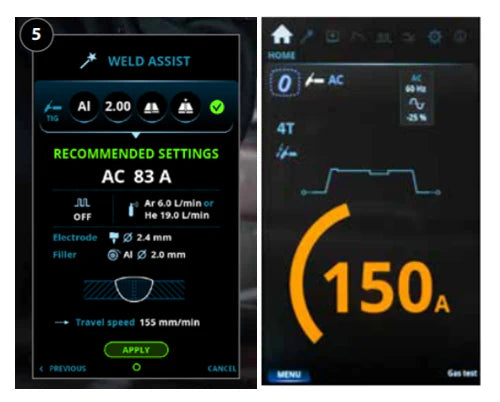

Weld Assist -Follow simple on-screen steps, selecting material, thickness, joint type, and position, and Weld Assist sets the right parameters for easy and productive welding. It also gives recommendations for electrode size, filler wire, gas flow, groove type, pass profile, and travel speed. Perfect for pWPS creation.
Weld Time Clock -Ideal for total weld cycle measurement and job data records, MasterTig weld clock is simple and fast to reset, allowing you to record and compare welding times between jobs. Measure gas consumption, planned maintenance on equipment.
Personalize -Upload your company logo or favorite image as a screensaver to personalize your MasterTig.
Other features -All standard features you would expect to find on a good TIG welding set are also part of this panel.
- Pre/post gas
- Slope in/out control
- Frequency control AC
- Balance control AC
- Pulse control manual our auto
- 2T/4T trigger latching
- Lift Arc / HF Start
