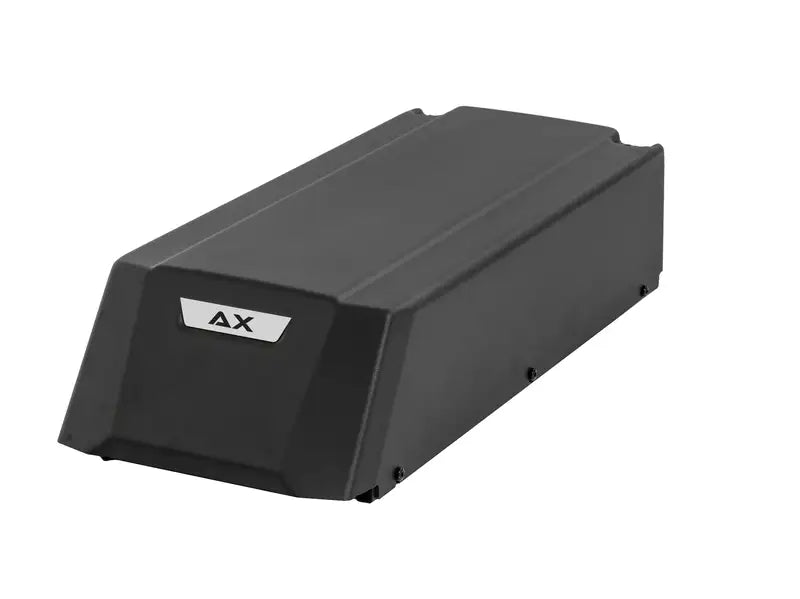

Kemppi RX311000000 Robot Connectivity Module Plus
The robot connectivity module, RCM, is the heart of the robotic welding system. It is responsible for the automation's fieldbus connection, WeldEye connection, user interface (WebUI), touch sensing, and many features of robot welding, including LAN and WLAN (WiFi) connectivity. The web-based user interface (WebUI) can be used with any device with a web browser, including mobile, tablet, PC, laptop, or industrial PC.
Technical Data
| Supply voltage | 12...48 V |
| Fuse (slow) | 0.63 A |
| Maximum touch sensing voltage [Uvs] | 200 V |
| Maximum touch sensing current [Ivs] | 20 mA |
| - Voltage at maximum touch sensing current | 113 V |
| USB voltage | 5 V |
| USB maximum current | 0.5 A |
| Maximum power consumption | 30 W |
| EMC class | A |
| Wired communication type | CAN bus, Ethernet, USB |
| Ethernet cable | RJ45 (CAT-5 or better shielded) |
| Wireless communication type | WLAN |
| WLAN type | IEEE 802.11 ac/a/b/g/n |
| Transmitter frequency and power, WLAN | 2.4 GHz: 2.412...2.484 GHz; 5.1 GHz: 5.150...5.240 GHz, 5.250...5.350 GHz, 5.470...5.725 GHz; 9...16 dBm |
| Degree of protection (fully installed) | IP23 |
| External dimensions, length | 597 mm |
| External dimensions, width | 241 mm |
| External dimensions, height | 137 mm |
| Weight without accessories | 4.1 kg |
| Standards | IEC 60974-5, -10 (where applicable, together with the power source) |
