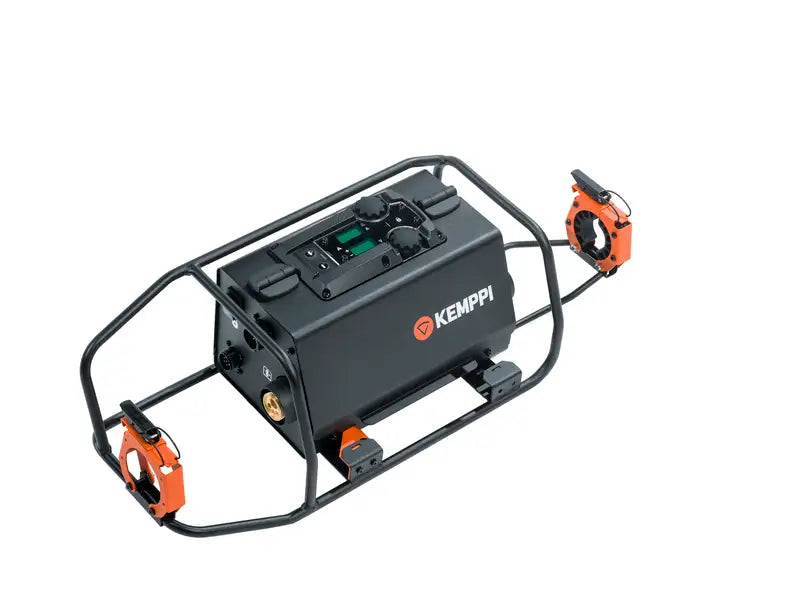

Kemppi SGTX04HD01 SuperSnake GTX04HD (feeder only)
The SuperSnake GTX04HD subfeeder delivers a distance and volume welding solution that combines a standard euro-connected welding gun with a strong 4x4 subfeeder and cable package. It connects directly to your standard X5 FastMig or Master M 350 series welding machine.
Technical Data
| Supply voltage | 12 V |
| Supply current | 125 mA |
| Welding current 60% | 350 A |
| Welding current 100% | 270 A |
| EMC class | A |
| Welding connection type | Euro |
| Wire feed mechanism | 4-roll, Single-motor |
| Diameter of feed rolls | 32 mm |
| Maximum shielding gas pressure | 0.5 MPa |
| Auxiliary voltage [Uaux] | 48 V |
| Maximum auxiliary current [Iaux max] | 2 A |
| Motor current [Imotor] | 2.5 A |
| Degree of protection (fully installed) | IP23S |
| External dimensions, length | 561 mm |
| External dimensions, width | 241 mm |
| External dimensions, height | 200 mm |
| Weight without accessories | 8.8 kg |
| Standards | EN IEC 60974-5:2019, EN IEC 60974-10:2020 |
