Kemppi X3HD300/X3HD300R X3Fastmig Synergic Wire Feeders

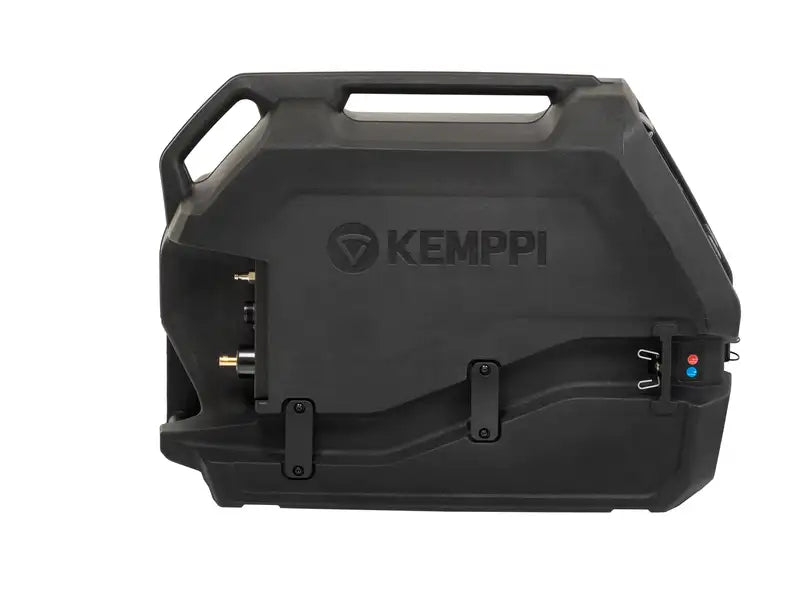

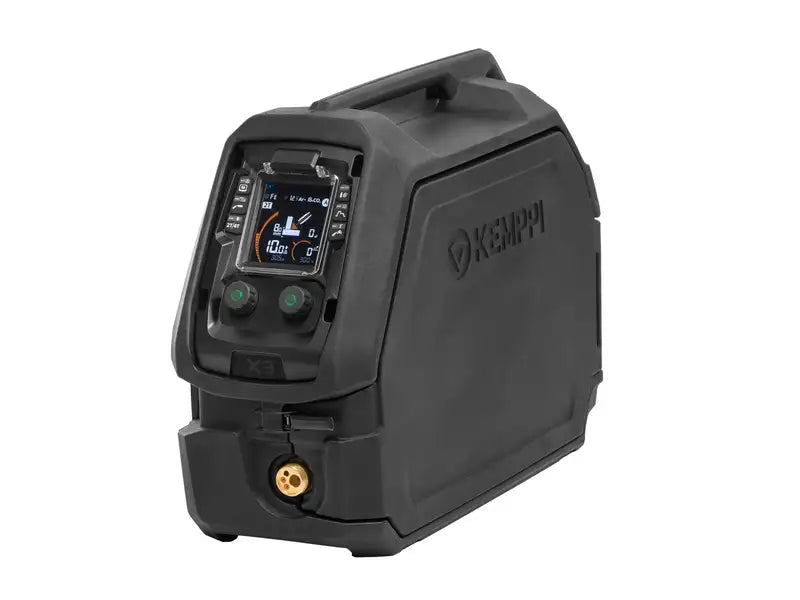

HD300-A side-loading wire feeder for all X3 FastMig power sources with a digital LCD display. The wire feeder features a 4-wheel wire feed mechanism, a safe-lift design, and integrated storage for parts in the side door. The robust plastic case with dual wall construction has been designed to absorb knocks and bangs during heavy welding applications. A plastic rotating plate is delivered with the X3 Wire Feeder HD300.
Technical Data
| Supply voltage | 48 V |
| Supply current at maximum load | 6.3 A |
| Idle power | 6 W |
| Welding current 60% | 450 A |
| Welding current 100% | 380 A |
| EMC class | A |
| Welding connection type | Euro |
| Wire feed mechanism | 4-roll, Single-motor |
| Diameter of feed rolls | 32 mm |
| Filler wire diameter, Fe | 0.8 ... 2 mm |
| Filler wire diameter, Ss | 0.8 ... 2 mm |
| Filler wire diameter, MC/FC | 0.8 ... 2.4 mm |
| Filler wire diameter, Al | 0.8 ... 2.4 mm |
| Wire feed speed | 0.5 ... 25 m/min |
| Maximum wire spool weight | 20 kg |
| Maximum wire spool diameter | 300 mm |
| Maximum shielding gas pressure | 0.5 MPa |
| Control panel, display | LCD |
| Control panel, controls | 2 control knobs, Push buttons |
| Control panel, type of installation | Built-in |
| Wired communication type | CAN bus |
| Operating temperature | -20 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Degree of protection (fully installed) | IP23 |
| External dimensions, length | 670 mm |
| External dimensions, width | 240 mm |
| External dimensions, height | 465 mm |
| Weight without accessories | 14.4 kg |
| Standards | IEC 60974-5, 10 |
HD300 ROTAMETER-A side-loading wire feeder for all X3 FastMig power sources with a digital LCD display. The wire feeder features a 4-wheel wire feed mechanism, a safe-lift design, and an integrated storage for parts in the side door. The robust plastic case with dual-wall construction has been designed to absorb knocks and bangs during heavy welding applications. This model also includes a rotameter for adjusting the gas flow. A plastic rotating plate is delivered with the X3 Wire Feeder HD300.
Technical Data
| Supply voltage | 48 V |
| Supply current at maximum load | 6.3 A |
| Idle power | 6 W |
| Welding current 60% | 450 A |
| Welding current 100% | 380 A |
| EMC class | A |
| Welding connection type | Euro |
| Wire feed mechanism | 4-roll, Single-motor |
| Diameter of feed rolls | 32 mm |
| Filler wire diameter, Fe | 0.8 ... 2 mm |
| Filler wire diameter, Ss | 0.8 ... 2 mm |
| Filler wire diameter, MC/FC | 0.8 ... 2.4 mm |
| Filler wire diameter, Al | 0.8 ... 2.4 mm |
| Wire feed speed | 0.5 ... 25 m/min |
| Maximum wire spool weight | 20 kg |
| Maximum wire spool diameter | 300 mm |
| Maximum shielding gas pressure | 0.5 MPa |
| Control panel, display | LCD |
| Control panel, controls | 2 control knobs, Push buttons |
| Control panel, type of installation | Built-in |
| Wired communication type | CAN bus |
| Operating temperature | -20 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Degree of protection (fully installed) | IP23 |
| External dimensions, length | 670 mm |
| External dimensions, width | 240 mm |
| External dimensions, height | 465 mm |
| Weight without accessories | 14.4 kg |
| Standards | IEC 60974-5, 10 |
