Kemppi X3P450GP/X3P450WP X3Fastmig Pulse Mig Package

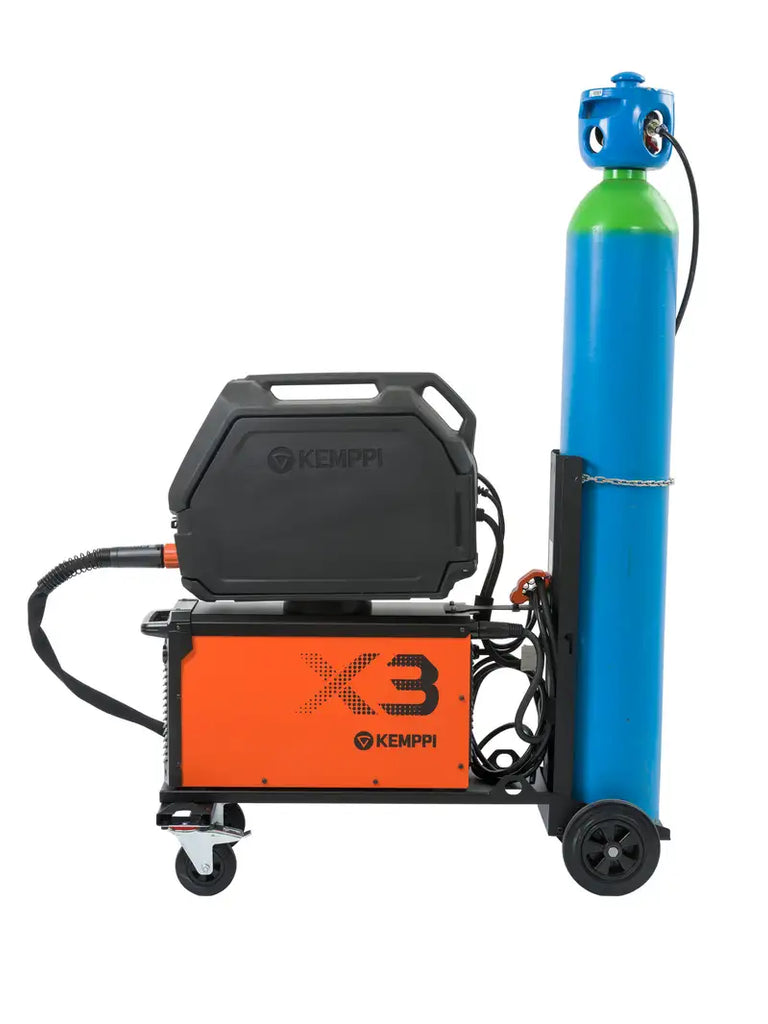

Kemppi X3 FastMig 450 Pulse MIG Package, with GXe 405 5.0m Torch - 400v, 3ph

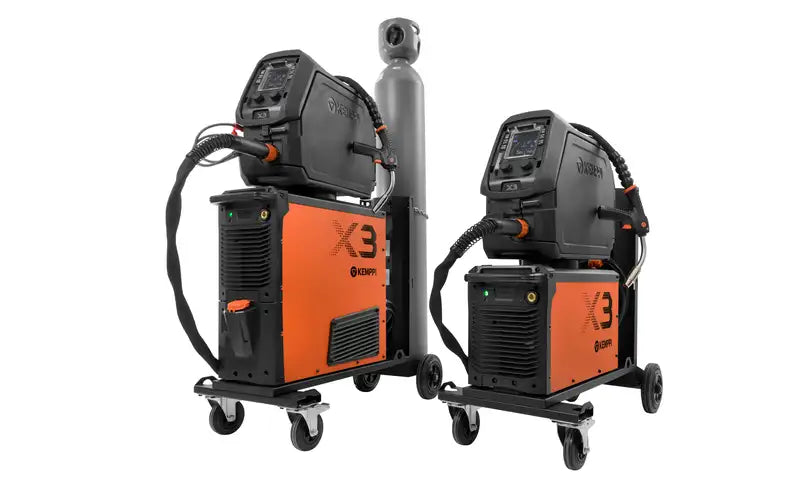

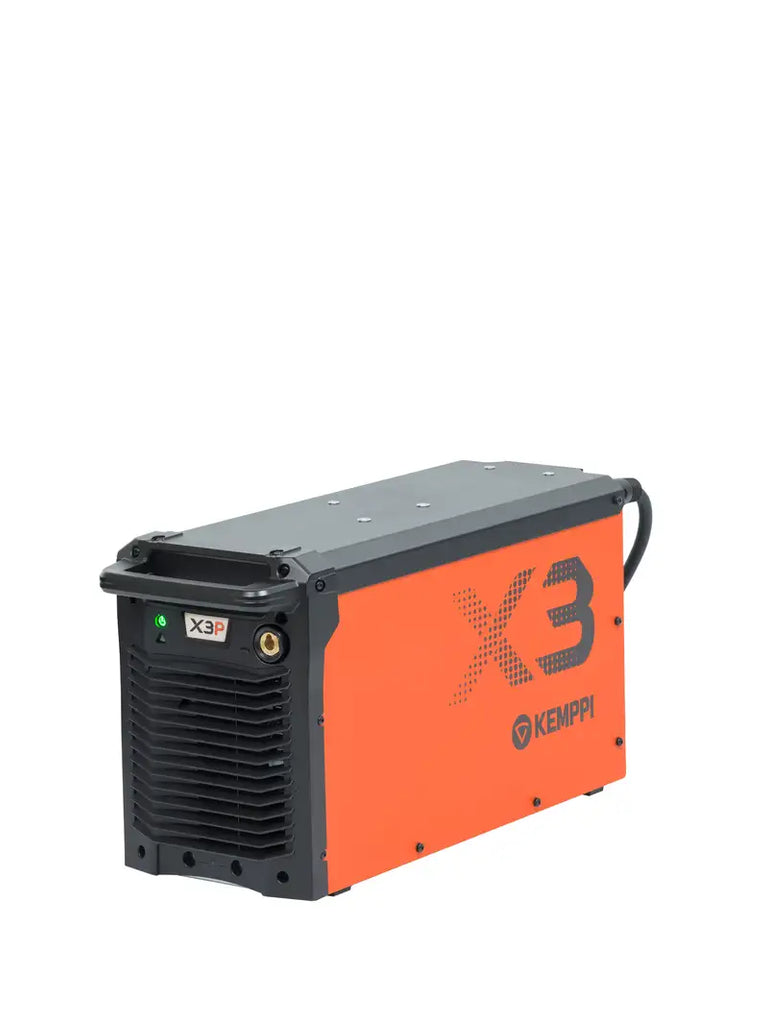

The X3 FastMig Pulse MIG/MAG welding machines are the quickest way to achieve high-quality welds across a wide range of welding and fabrication environments. With a robust design and durable wire feeder, the X3 FastMig can handle the bumps and bangs of heavy industrial MIG/MAG welding. It looks tough, but it's also precise and straightforward. A new icon-based user interface saves time with a fast setup and easy parameter selection. The X3 FastMig gives you immediate control over key functions, providing a reliable, straightforward way to create high-quality welds.
It's a brilliantly simple MIG/MAG welder that is also extremely powerful. When tasks get tougher, the X3 FastMig is always ready to meet heavy production targets. Need to complete the biggest job on site? No problem. With 450 amps at a 60% duty cycle, the X3P is brutally effective without compromising on quality. Lock in on a task and keep going until it's done. The X3P FastMig is a perfect match for industrial welding, where capable, accurate, and reliable welding equipment is essential and where a MIG/MAG welder needs to support fast-changing, varied work tasks.
Features
- Pulse MIG/MAG, MMA, and gouging processes
- 450 A at 60% duty cycle
- Includes 67 welding curves
- Intuitive icon-based user interface
- Option to suspend the wire feeder with a boom hanger
- Safe lift design in the wire feeder
- Option to attach the welding wire marathon pack to the wire feeder
- Integrated storage for parts in the wire feeders' side door
- Five memory channels
- Cable calibration
- Safety lock
Technical Data
| Mains connection voltage | 380...415 V ±10 % |
| Mains connection phases | 3~50/60 Hz |
| Mains connection cable type | H07RN-F |
| Mains connection cable size | 4 mm² |
| Maximum supply current [I1max] | 33 ... 30 A |
| Effective supply current [I1eff] | 25 ... 23 A |
| Rated maximum input power [S1max] | 21 kVA |
| Mains fuse | 25 A |
| Idle state power consumption [P1idle] | 15 W |
| No-load voltage [U0] | 61 ... 67 V |
| Open circuit voltage [Uav] | 60 ... 65 V |
| Output at +40 °C, 60% MIG | 450 A |
| Output at +40 °C, 100% MIG | 380 A |
| Output at +40 °C, 60% MMA | 430 A |
| Output at +40 °C, 100% MMA | 360 A |
| Output range, MIG | 15 A / 12 V ... 450 A / 45 V |
| Output range, MMA | 15 A / 15 V ... 430 A / 46 V |
| Voltage adjustment range, MIG | 8 ... 50 V |
| VRD voltage | 24 V |
| Power factor at rated maximum current [λ] | 0.88 |
| Efficiency at rated maximum current [η] | 87 % |
| EMC class | A |
| Minimum short-circuit power of supply network [Ssc] | 6 MVA |
| Voltage supply for auxiliary devices | 48 V |
| Wired communication type | CAN bus |
| Operating temperature | -20 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Recommended minimum generator power [Sgen] | 25 kVA |
| Degree of protection (fully installed) | IP23 |
| External dimensions, length | 698 mm |
| External dimensions, width | 251 mm |
| External dimensions, height | 361 mm |
| Weight without accessories | 35 kg |
| Standards | IEC 60974-1, -10 |
