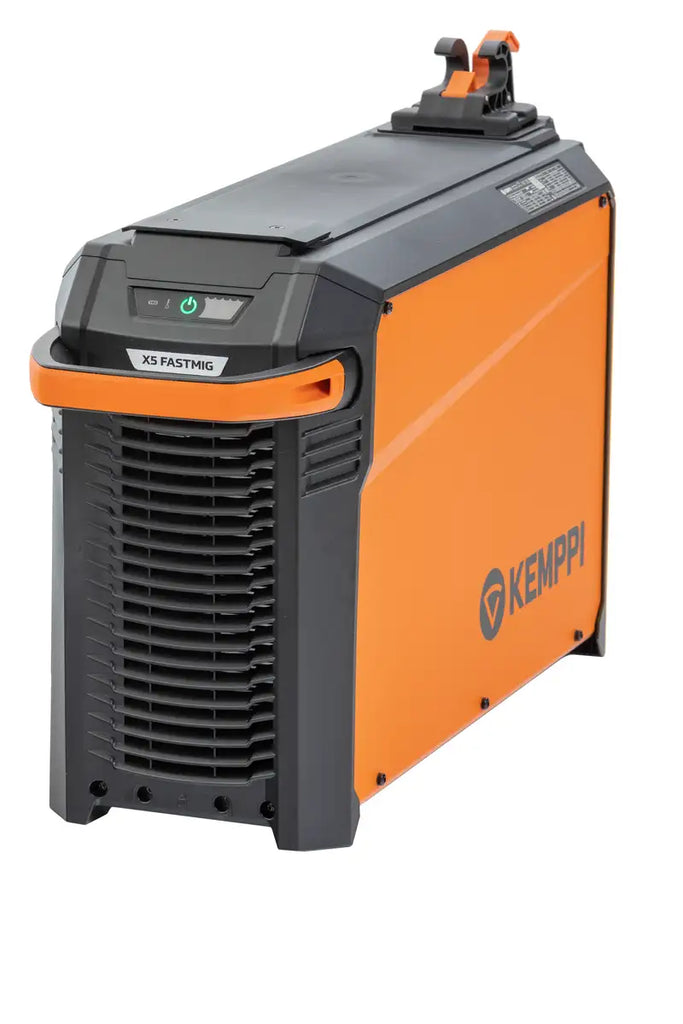

400 Pulse - Multi-process power source that provides 400 A with 60% duty cycle. Manual, synergic, pulse, and double pulse welding options available. Compatible with all MAX welding processes as well as WiseFusion, WisePenetration, and WiseSteel welding processes. In robotic welding applications, TIG and MMA processes are not available. A 5-year warranty is available through end-user registration in the MyFleet service.

Mains connection voltage 380...460 V ±10 %
Mains connection phases 3~50/60 Hz
Mains connection cable type H07RN-F
Mains connection cable size 4 mm²
Maximum supply current [I1max] 28 ... 26 A
Effective supply current [I1eff] 24 ... 22 A
Rated maximum input power [S1max] 20 kVA
Mains fuse 25 A
Idle state power consumption [P1idle] 31 W
No-load state power consumption (MMA), power save 32 W
No-load state power consumption (MMA), fans ON 230 W
No-load voltage [U0] 76 ... 94 V
Open circuit voltage [Uav] 76 ... 94 V
Output at +40 °C, 60% MIG 400 A
Output at +40 °C, 100% MIG 350 A
Output range, MIG 15 A / 10 V ... 400 A / 50 V
Output range, TIG 15 A / 1 V ... 400 A / 50 V
Output range, MMA 15 A / 10 V ... 400 A / 50 V
Voltage adjustment range, MIG 8 ... 50 V
Power factor at rated maximum current [λ] 0.85
Efficiency at rated maximum current [η] 89 %
EMC class A
Minimum short-circuit power of supply network [Ssc] 6.3 MVA
Voltage supply for auxiliary devices 12 V, 48 V
Voltage supply for cooling unit 24 V, 380...460 V
Wired communication type CAN bus
Operating temperature -20 ... 40 °C
Storage temperature -40 ... 60 °C
Recommended minimum generator power [Sgen] 25 kVA
Degree of protection (fully installed) IP23S
External dimensions, length 750 mm
External dimensions, width 263 mm
External dimensions, height 456 mm
Weight without accessories 39.5 kg
Standards IEC 60974-1, -10



400Pulse+ - Multi-process power source that provides 400 A with 60% duty cycle. Manual, synergic, pulse, and double pulse welding options available. Compatible with all MAX welding processes as well as WiseFusion, WisePenetration, WiseRoot+, WiseThin+, and WiseSteel welding processes. In robotic welding applications, TIG and MMA processes are not available. A 5-year warranty is available through end-user registration in the MyFleet service.

Mains connection voltage 380...460 V ±10 %
Mains connection phases 3~50/60 Hz
Mains connection cable type H07RN-F
Mains connection cable size 4 mm²
Maximum supply current [I1max] 28 ... 26 A
Effective supply current [I1eff] 24 ... 22 A
Rated maximum input power [S1max] 20 kVA
Mains fuse 25 A
Idle state power consumption [P1idle] 33 W
No-load state power consumption (MMA), power save 34 W
No-load state power consumption (MMA), fans ON 230 W
No-load voltage [U0] 76 ... 94 V
Open circuit voltage [Uav] 76 ... 94 V
Output at +40 °C, 60% MIG 400 A
Output at +40 °C, 100% MIG 350 A
Output range, MIG 15 A / 10 V ... 400 A / 50 V
Output range, TIG 15 A / 1 V ... 400 A / 50 V
Output range, MMA 15 A / 10 V ... 400 A / 50 V
Voltage adjustment range, MIG 8 ... 50 V
Power factor at rated maximum current [λ] 0.86
Efficiency at rated maximum current [η] 89 %
EMC class A
Minimum short-circuit power of supply network [Ssc] 6.3 MVA
Voltage supply for auxiliary devices 12 V, 48 V
Voltage supply for cooling unit 24 V, 380...460 V
Wired communication type CAN bus
Operating temperature -20 ... 40 °C
Storage temperature -40 ... 60 °C
Recommended minimum generator power [Sgen] 25 kVA
Degree of protection (fully installed) IP23S
External dimensions, length 750 mm
External dimensions, width 263 mm
External dimensions, height 456 mm
Weight without accessories 39.5 kg
Standards IEC 60974-1, -10



400Pulse WP - Multi-process power source that provides 400 A with 60% duty cycle. Manual, synergic, pulse, and double pulse welding options available. Includes WiseSteel and WiseFusion welding processes and X5 Work Pack Pulse with 54 welding programs. Compatible with all MAX welding processes as well as WisePenetration welding process. In robotic welding applications, TIG and MMA processes are not available. A 5-year warranty is available through end-user registration in the MyFleet service.

Mains connection voltage 380...460 V ±10 %
Mains connection phases 3~50/60 Hz
Mains connection cable type H07RN-F
Mains connection cable size 4 mm²
Maximum supply current [I1max] 28 ... 26 A
Effective supply current [I1eff] 24 ... 22 A
Rated maximum input power [S1max] 20 kVA
Mains fuse 25 A
Idle state power consumption [P1idle] 31 W
No-load state power consumption (MMA), power save 32 W
No-load state power consumption (MMA), fans ON 230 W
No-load voltage [U0] 76 ... 94 V
Open circuit voltage [Uav] 76 ... 94 V
Output at +40 °C, 60% MIG 400 A
Output at +40 °C, 100% MIG 350 A
Output range, MIG 15 A / 10 V ... 400 A / 50 V
Output range, TIG 15 A / 1 V ... 400 A / 50 V
Output range, MMA 15 A / 10 V ... 400 A / 50 V
Voltage adjustment range, MIG 8 ... 50 V
Power factor at rated maximum current [λ] 0.85
Efficiency at rated maximum current [η] 89 %
EMC class A
Minimum short-circuit power of supply network [Ssc] 6.3 MVA
Voltage supply for auxiliary devices 12 V, 48 V
Voltage supply for cooling unit 24 V, 380...460 V
Wired communication type CAN bus
Operating temperature -20 ... 40 °C
Storage temperature -40 ... 60 °C
Recommended minimum generator power [Sgen] 25 kVA
Degree of protection (fully installed) IP23S
External dimensions, length 750 mm
External dimensions, width 263 mm
External dimensions, height 456 mm
Weight without accessories 39.5 kg
Standards IEC 60974-1, -10

X5 FastMig Pulse welding programs

Wprog. No Process Wire material Diameter Shielding gas Description Code
A01 1-MIG AlMg5 1 Ar Standard X5510093
A02 1-MIG AlMg5 1,2 Ar Standard X5510015
A11 1-MIG AlSi5 1 Ar Standard X5510094
A12 1-MIG AlSi5 1,2 Ar Standard X5510016
C01 1-MIG CuSi3 0,8 Ar Standard: Brazing X551 037
C03 1-MIG CuSi3 1 Ar Standard: Brazing X5510032
C11 1-MIG CuAl8 0,8 Ar Standard: Brazing X5510036
C13 1-MIG CuAl8 1 Ar Standard: Brazing X5510031
F01 1-MIG Fe 0,8 Ar+18%CO2 Standard X5510001
F02 1-MIG Fe 0,9 Ar+18%CO2 Standard X5510019
F03 1-MIG Fe 1 Ar+18%CO2 Standard X5510002
F04 1-MIG Fe 1,2 Ar+18%CO2 Standard X5510003
F06 1-MIG Fe 1,6 Ar+18%CO2 Standard X5510025
F11 1-MIG Fe 0,8 Ar+8%CO2 Standard X5510004
F12 1-MIG Fe 0,9 Ar+8%CO2 Standard X5510020
F13 1-MIG Fe 1 Ar+8%CO2 Standard X5510005
F14 1-MIG Fe 1,2 Ar+8%CO2 Standard X5510006
F21 1-MIG Fe 0,8 CO2 Standard X5510060
F22 1-MIG Fe 0,9 CO2 Standard X5510095
F23 1-MIG Fe 1 CO2 Standard X5510013
F24 1-MIG Fe 1,2 CO2 Standard X5510014
F26 1-MIG Fe 1,6 CO2 Standard X5510056
M04 1-MIG Fe Metal 1,2 Ar+18%CO2 Standard X5510007
M06 1-MIG Fe Metal 1,6 Ar+18%CO2 Standard X5510028
R04 1-MIG Fe Rutil 1,2 Ar+18%CO2 Standard X5 510 008
R06 1-MIG Fe Rutil 1,6 Ar+18%CO2 Standard X5 510 029
R14 1-MIG Fe Rutil 1,2 CO2 Standard X5510033
S01 1-MIG Ss 0,8 Ar+2%CO2 Standard X5 510 009
S02 1-MIG Ss 0,9 Ar+2%CO2 Standard X5 510 021
S03 1-MIG Ss 1 Ar+2%CO2 Standard X5 510 010
S04 1-MIG Ss 1,2 Ar+2%CO2 Standard X5 510 011
S82 1-MIG FC-CrNiMo 0,9 Ar+18%CO2 Standard X5510026
S84 1-MIG FC-CrNiMo 1,2 Ar+18%CO2 Standard X5510012
A01 P-MIG AlMg5 1 Ar Standard X5510040
A02 P-MIG AlMg5 1,2 Ar Standard X5 510 041
A11 P-MIG AlSi5 1 Ar Standard X5510042
A12 P-MIG AlSi5 1,2 Ar Standard X5510043
C01 P-MIG CuSi3 0,8 Ar Standard: Brazing X5510096
C03 P-MIG CuSi3 1 Ar Standard: Brazing X5510097
C11 P-MIG CuAl8 0,8 Ar Standard: Brazing X5510098
C13 P-MIG CuAl8 1 Ar Standard: Brazing X5510099
F01 P-MIG Fe 0,8 Ar+18%CO2 Standard X5510044
F02 P-MIG Fe 0,9 Ar+18%CO2 Standard X5510045
F03 P-MIG Fe 1 Ar+18%CO2 Standard X5510046
F04 P-MIG Fe 1,2 Ar+18%CO2 Standard X5510047
F11 P-MIG Fe 0,8 Ar+8%CO2 Standard X5510048
F12 P-MIG Fe 0,9 Ar+8%CO2 Standard X5510049
F13 P-MIG Fe 1 Ar+8%CO2 Standard X5510050
F14 P-MIG Fe 1,2 Ar+8%CO2 Standard X5510051
M04 P-MIG Fe Metal 1,2 Ar+18%CO2 Standard X5510100
S01 P-MIG Ss 0,8 Ar+2%CO2 Standard X5510052
S02 P-MIG Ss 0,9 Ar+2%CO2 Standard X5510053
S03 P-MIG Ss 1 Ar+2%CO2 Standard X5510054
S04 P-MIG Ss 1,2 Ar+2%CO2 Standard X5510055


AX MIG Welder Pulse welding programs

Wprog. No Process Wire material Diameter Shielding gas Description Code
A02 1-MIG AlMg5 1,2 Ar Standard AX00000
A12 1-MIG AlSi5 1,2 Ar Standard AX00001
F03 1-MIG Fe 1 Ar+18%CO2 Standard AX00006
F04 1-MIG Fe 1,2 Ar+18%CO2 Standard AX00007
S03 1-MIG Ss 1 Ar+2%CO2 Standard AX00021
S04 1-MIG Ss 1,2 Ar+2%CO2 Standard AX00022
A02 P-MIG AlMg5 1,2 Ar Standard AX00024
A12 P-MIG AlSi5 1,2 Ar Standard AX00025
F03 P-MIG Fe 1 Ar+18%CO2 Standard AX00028
F04 P-MIG Fe 1,2 Ar+18%CO2 Standard AX00029
S03 P-MIG Ss 1 Ar+2%CO2 Standard AX00033
S04 P-MIG Ss 1,2 Ar+2%CO2 Standard AX00034



400Pulse+ WP - Multi-process power source that provides 400 A with 60% duty cycle. Manual, synergic, pulse, and double pulse welding options available. Includes WiseSteel and WiseFusion welding processes and X5 Work Pack Pulse with 54 welding programs. Compatible with all MAX welding processes as well as WisePenetration, WiseRoot+, and WiseThin+ welding processes. In robotic welding applications, TIG and MMA processes are not available. A 5-year warranty is available through end-user registration in the MyFleet service.

Mains connection voltage 380...460 V ±10 %
Mains connection phases 3~50/60 Hz
Mains connection cable type H07RN-F
Mains connection cable size 4 mm²
Maximum supply current [I1max] 28 ... 26 A
Effective supply current [I1eff] 24 ... 22 A
Rated maximum input power [S1max] 20 kVA
Mains fuse 25 A
Idle state power consumption [P1idle] 33 W
No-load state power consumption (MMA), power save 34 W
No-load state power consumption (MMA), fans ON 230 W
No-load voltage [U0] 76 ... 94 V
Open circuit voltage [Uav] 76 ... 94 V
Output at +40 °C, 60% MIG 400 A
Output at +40 °C, 100% MIG 350 A
Output range, MIG 15 A / 10 V ... 400 A / 50 V
Output range, TIG 15 A / 1 V ... 400 A / 50 V
Output range, MMA 15 A / 10 V ... 400 A / 50 V
Voltage adjustment range, MIG 8 ... 50 V
Power factor at rated maximum current [λ] 0.86
Efficiency at rated maximum current [η] 89 %
EMC class A
Minimum short-circuit power of supply network [Ssc] 6.3 MVA
Voltage supply for auxiliary devices 12 V, 48 V
Voltage supply for cooling unit 24 V, 380...460 V
Wired communication type CAN bus
Operating temperature -20 ... 40 °C
Storage temperature -40 ... 60 °C
Recommended minimum generator power [Sgen] 25 kVA
Degree of protection (fully installed) IP23S
External dimensions, length 750 mm
External dimensions, width 263 mm
External dimensions, height 456 mm
Weight without accessories 39.5 kg
Standards IEC 60974-1, -10

X5 FastMig Pulse welding programs

Wprog. No Process Wire material Diameter Shielding gas Description Code
A01 1-MIG AlMg5 1 Ar Standard X5510093
A02 1-MIG AlMg5 1,2 Ar Standard X5510015
A11 1-MIG AlSi5 1 Ar Standard X5510094
A12 1-MIG AlSi5 1,2 Ar Standard X5510016
C01 1-MIG CuSi3 0,8 Ar Standard: Brazing X551 037
C03 1-MIG CuSi3 1 Ar Standard: Brazing X5510032
C11 1-MIG CuAl8 0,8 Ar Standard: Brazing X5510036
C13 1-MIG CuAl8 1 Ar Standard: Brazing X5510031
F01 1-MIG Fe 0,8 Ar+18%CO2 Standard X5510001
F02 1-MIG Fe 0,9 Ar+18%CO2 Standard X5510019
F03 1-MIG Fe 1 Ar+18%CO2 Standard X5510002
F04 1-MIG Fe 1,2 Ar+18%CO2 Standard X5510003
F06 1-MIG Fe 1,6 Ar+18%CO2 Standard X5510025
F11 1-MIG Fe 0,8 Ar+8%CO2 Standard X5510004
F12 1-MIG Fe 0,9 Ar+8%CO2 Standard X5510020
F13 1-MIG Fe 1 Ar+8%CO2 Standard X5510005
F14 1-MIG Fe 1,2 Ar+8%CO2 Standard X5510006
F21 1-MIG Fe 0,8 CO2 Standard X5510060
F22 1-MIG Fe 0,9 CO2 Standard X5510095
F23 1-MIG Fe 1 CO2 Standard X5510013
F24 1-MIG Fe 1,2 CO2 Standard X5510014
F26 1-MIG Fe 1,6 CO2 Standard X5510056
M04 1-MIG Fe Metal 1,2 Ar+18%CO2 Standard X5510007
M06 1-MIG Fe Metal 1,6 Ar+18%CO2 Standard X5510028
R04 1-MIG Fe Rutil 1,2 Ar+18%CO2 Standard X5 510 008
R06 1-MIG Fe Rutil 1,6 Ar+18%CO2 Standard X5 510 029
R14 1-MIG Fe Rutil 1,2 CO2 Standard X5510033
S01 1-MIG Ss 0,8 Ar+2%CO2 Standard X5 510 009
S02 1-MIG Ss 0,9 Ar+2%CO2 Standard X5 510 021
S03 1-MIG Ss 1 Ar+2%CO2 Standard X5 510 010
S04 1-MIG Ss 1,2 Ar+2%CO2 Standard X5 510 011
S82 1-MIG FC-CrNiMo 0,9 Ar+18%CO2 Standard X5510026
S84 1-MIG FC-CrNiMo 1,2 Ar+18%CO2 Standard X5510012
A01 P-MIG AlMg5 1 Ar Standard X5510040
A02 P-MIG AlMg5 1,2 Ar Standard X5 510 041
A11 P-MIG AlSi5 1 Ar Standard X5510042
A12 P-MIG AlSi5 1,2 Ar Standard X5510043
C01 P-MIG CuSi3 0,8 Ar Standard: Brazing X5510096
C03 P-MIG CuSi3 1 Ar Standard: Brazing X5510097
C11 P-MIG CuAl8 0,8 Ar Standard: Brazing X5510098
C13 P-MIG CuAl8 1 Ar Standard: Brazing X5510099
F01 P-MIG Fe 0,8 Ar+18%CO2 Standard X5510044
F02 P-MIG Fe 0,9 Ar+18%CO2 Standard X5510045
F03 P-MIG Fe 1 Ar+18%CO2 Standard X5510046
F04 P-MIG Fe 1,2 Ar+18%CO2 Standard X5510047
F11 P-MIG Fe 0,8 Ar+8%CO2 Standard X5510048
F12 P-MIG Fe 0,9 Ar+8%CO2 Standard X5510049
F13 P-MIG Fe 1 Ar+8%CO2 Standard X5510050
F14 P-MIG Fe 1,2 Ar+8%CO2 Standard X5510051
M04 P-MIG Fe Metal 1,2 Ar+18%CO2 Standard X5510100
S01 P-MIG Ss 0,8 Ar+2%CO2 Standard X5510052
S02 P-MIG Ss 0,9 Ar+2%CO2 Standard X5510053
S03 P-MIG Ss 1 Ar+2%CO2 Standard X5510054
S04 P-MIG Ss 1,2 Ar+2%CO2 Standard X5510055


AX MIG Welder Pulse welding programs

Wprog. No Process Wire material Diameter Shielding gas Description Code
A02 1-MIG AlMg5 1,2 Ar Standard AX00000
A12 1-MIG AlSi5 1,2 Ar Standard AX00001
F03 1-MIG Fe 1 Ar+18%CO2 Standard AX00006
F04 1-MIG Fe 1,2 Ar+18%CO2 Standard AX00007
S03 1-MIG Ss 1 Ar+2%CO2 Standard AX00021
S04 1-MIG Ss 1,2 Ar+2%CO2 Standard AX00022
A02 P-MIG AlMg5 1,2 Ar Standard AX00024
A12 P-MIG AlSi5 1,2 Ar Standard AX00025
F03 P-MIG Fe 1 Ar+18%CO2 Standard AX00028
F04 P-MIG Fe 1,2 Ar+18%CO2 Standard AX00029
S03 P-MIG Ss 1 Ar+2%CO2 Standard AX00033
S04 P-MIG Ss 1,2 Ar+2%CO2 Standard AX00034



500Pulse - Multi-process power source that provides 500 A with 60% duty cycle. Manual, synergic, pulse, and double pulse welding options available. Compatible with all MAX welding processes as well as WiseFusion, WisePenetration, and WiseSteel welding processes. In robotic welding applications, TIG and MMA processes are not available. A 5-year warranty is available through end-user registration in the MyFleet service.

Mains connection voltage 380...460 V ±10 %
Mains connection phases 3~50/60 Hz
Mains connection cable type H07RN-F
Mains connection cable size 6 mm²
Maximum supply current [I1max] 39 ... 34 A
Effective supply current [I1eff] 30 ... 27 A
Rated maximum input power [S1max] 27 kVA
Mains fuse 32 A
Idle state power consumption [P1idle] 31 W
No-load state power consumption (MMA), power save 32 W
No-load state power consumption (MMA), fans ON 240 W
No-load voltage [U0] 76 ... 94 V
Open circuit voltage [Uav] 76 ... 94 V
Output at +40 °C, 60% MIG 500 A
Output at +40 °C, 100% MIG 400 A
Output range, MIG 15 A / 10 V ... 500 A / 50 V
Output range, TIG 15 A / 1 V ... 500 A / 50 V
Output range, MMA 15 A / 10 V ... 500 A / 50 V
Voltage adjustment range, MIG 8 ... 50 V
Power factor at rated maximum current [λ] 0.89
Efficiency at rated maximum current [η] 89 %
EMC class A
Minimum short-circuit power of supply network [Ssc] 6.7 MVA
Voltage supply for auxiliary devices 12 V, 48 V
Voltage supply for cooling unit 24 V, 380...460 V
Wired communication type CAN bus
Operating temperature -20 ... 40 °C
Storage temperature -40 ... 60 °C
Recommended minimum generator power [Sgen] 35 kVA
Degree of protection (fully installed) IP23S
External dimensions, length 750 mm
External dimensions, width 263 mm
External dimensions, height 456 mm
Weight without accessories 39.5 kg
Standards IEC 60974-1, -10



500Pulse+ - Multi-process power source that provides 500 A with 60% duty cycle. Manual, synergic, pulse, and double pulse welding options available. Compatible with all MAX welding processes as well as WiseFusion, WisePenetration, WiseRoot+, WiseThin+, and WiseSteel welding processes. In robotic welding applications, TIG and MMA processes are not available. A 5-year warranty is available through end-user registration in the MyFleet service.

Mains connection voltage 380...460 V ±10 %
Mains connection phases 3~50/60 Hz
Mains connection cable type H07RN-F
Mains connection cable size 6 mm²
Maximum supply current [I1max] 39 ... 34 A
Effective supply current [I1eff] 30 ... 27 A
Rated maximum input power [S1max] 27 kVA
Mains fuse 32 A
Idle state power consumption [P1idle] 33 W
No-load state power consumption (MMA), power save 34 W
No-load state power consumption (MMA), fans ON 240 W
No-load voltage [U0] 76 ... 94 V
Open circuit voltage [Uav] 76 ... 94 V
Output at +40 °C, 60% MIG 500 A
Output at +40 °C, 100% MIG 400 A
Output range, MIG 15 A / 10 V ... 500 A / 50 V
Output range, TIG 15 A / 1 V ... 500 A / 50 V
Output range, MMA 15 A / 10 V ... 500 A / 50 V
Voltage adjustment range, MIG 8 ... 50 V
Power factor at rated maximum current [λ] 0.89
Efficiency at rated maximum current [η] 88 %
EMC class A
Minimum short-circuit power of supply network [Ssc] 6.7 MVA
Voltage supply for auxiliary devices 12 V, 48 V
Voltage supply for cooling unit 24 V, 380...460 V
Wired communication type CAN bus
Operating temperature -20 ... 40 °C
Storage temperature -40 ... 60 °C
Recommended minimum generator power [Sgen] 35 kVA
Degree of protection (fully installed) IP23S
External dimensions, length 750 mm
External dimensions, width 263 mm
External dimensions, height 456 mm
Weight without accessories 39.5 kg
Standards IEC 60974-1, -10



500Pulse WP - Multi-process power source that provides 500 A with 60% duty cycle. Manual, synergic, pulse, and double pulse welding options available. Includes WiseSteel and WiseFusion welding processes and X5 Work Pack Pulse with 54 welding programs. Compatible with all MAX welding processes as well as WisePenetration welding process. In robotic welding applications, TIG and MMA processes are not available. A 5-year warranty is available through end-user registration in the MyFleet service.

Mains connection voltage 380...460 V ±10 %
Mains connection phases 3~50/60 Hz
Mains connection cable type H07RN-F
Mains connection cable size 6 mm²
Maximum supply current [I1max] 39 ... 34 A
Effective supply current [I1eff] 30 ... 27 A
Rated maximum input power [S1max] 27 kVA
Mains fuse 32 A
Idle state power consumption [P1idle] 31 W
No-load state power consumption (MMA), power save 32 W
No-load state power consumption (MMA), fans ON 240 W
No-load voltage [U0] 76 ... 94 V
Open circuit voltage [Uav] 76 ... 94 V
Output at +40 °C, 60% MIG 500 A
Output at +40 °C, 100% MIG 400 A
Output range, MIG 15 A / 10 V ... 500 A / 50 V
Output range, TIG 15 A / 1 V ... 500 A / 50 V
Output range, MMA 15 A / 10 V ... 500 A / 50 V
Voltage adjustment range, MIG 8 ... 50 V
Power factor at rated maximum current [λ] 0.89
Efficiency at rated maximum current [η] 89 %
EMC class A
Minimum short-circuit power of supply network [Ssc] 6.7 MVA
Voltage supply for auxiliary devices 12 V, 48 V
Voltage supply for cooling unit 24 V, 380...460 V
Wired communication type CAN bus
Operating temperature -20 ... 40 °C
Storage temperature -40 ... 60 °C
Recommended minimum generator power [Sgen] 35 kVA
Degree of protection (fully installed) IP23S
External dimensions, length 750 mm
External dimensions, width 263 mm
External dimensions, height 456 mm
Weight without accessories 39.5 kg
Standards IEC 60974-1, -10

X5 FastMig Pulse welding programs

Wprog. No Process Wire material Diameter Shielding gas Description Code
A01 1-MIG AlMg5 1 Ar Standard X5510093
A02 1-MIG AlMg5 1,2 Ar Standard X5510015
A11 1-MIG AlSi5 1 Ar Standard X5510094
A12 1-MIG AlSi5 1,2 Ar Standard X5510016
C01 1-MIG CuSi3 0,8 Ar Standard: Brazing X551 037
C03 1-MIG CuSi3 1 Ar Standard: Brazing X5510032
C11 1-MIG CuAl8 0,8 Ar Standard: Brazing X5510036
C13 1-MIG CuAl8 1 Ar Standard: Brazing X5510031
F01 1-MIG Fe 0,8 Ar+18%CO2 Standard X5510001
F02 1-MIG Fe 0,9 Ar+18%CO2 Standard X5510019
F03 1-MIG Fe 1 Ar+18%CO2 Standard X5510002
F04 1-MIG Fe 1,2 Ar+18%CO2 Standard X5510003
F06 1-MIG Fe 1,6 Ar+18%CO2 Standard X5510025
F11 1-MIG Fe 0,8 Ar+8%CO2 Standard X5510004
F12 1-MIG Fe 0,9 Ar+8%CO2 Standard X5510020
F13 1-MIG Fe 1 Ar+8%CO2 Standard X5510005
F14 1-MIG Fe 1,2 Ar+8%CO2 Standard X5510006
F21 1-MIG Fe 0,8 CO2 Standard X5510060
F22 1-MIG Fe 0,9 CO2 Standard X5510095
F23 1-MIG Fe 1 CO2 Standard X5510013
F24 1-MIG Fe 1,2 CO2 Standard X5510014
F26 1-MIG Fe 1,6 CO2 Standard X5510056
M04 1-MIG Fe Metal 1,2 Ar+18%CO2 Standard X5510007
M06 1-MIG Fe Metal 1,6 Ar+18%CO2 Standard X5510028
R04 1-MIG Fe Rutil 1,2 Ar+18%CO2 Standard X5 510 008
R06 1-MIG Fe Rutil 1,6 Ar+18%CO2 Standard X5 510 029
R14 1-MIG Fe Rutil 1,2 CO2 Standard X5510033
S01 1-MIG Ss 0,8 Ar+2%CO2 Standard X5 510 009
S02 1-MIG Ss 0,9 Ar+2%CO2 Standard X5 510 021
S03 1-MIG Ss 1 Ar+2%CO2 Standard X5 510 010
S04 1-MIG Ss 1,2 Ar+2%CO2 Standard X5 510 011
S82 1-MIG FC-CrNiMo 0,9 Ar+18%CO2 Standard X5510026
S84 1-MIG FC-CrNiMo 1,2 Ar+18%CO2 Standard X5510012
A01 P-MIG AlMg5 1 Ar Standard X5510040
A02 P-MIG AlMg5 1,2 Ar Standard X5 510 041
A11 P-MIG AlSi5 1 Ar Standard X5510042
A12 P-MIG AlSi5 1,2 Ar Standard X5510043
C01 P-MIG CuSi3 0,8 Ar Standard: Brazing X5510096
C03 P-MIG CuSi3 1 Ar Standard: Brazing X5510097
C11 P-MIG CuAl8 0,8 Ar Standard: Brazing X5510098
C13 P-MIG CuAl8 1 Ar Standard: Brazing X5510099
F01 P-MIG Fe 0,8 Ar+18%CO2 Standard X5510044
F02 P-MIG Fe 0,9 Ar+18%CO2 Standard X5510045
F03 P-MIG Fe 1 Ar+18%CO2 Standard X5510046
F04 P-MIG Fe 1,2 Ar+18%CO2 Standard X5510047
F11 P-MIG Fe 0,8 Ar+8%CO2 Standard X5510048
F12 P-MIG Fe 0,9 Ar+8%CO2 Standard X5510049
F13 P-MIG Fe 1 Ar+8%CO2 Standard X5510050
F14 P-MIG Fe 1,2 Ar+8%CO2 Standard X5510051
M04 P-MIG Fe Metal 1,2 Ar+18%CO2 Standard X5510100
S01 P-MIG Ss 0,8 Ar+2%CO2 Standard X5510052
S02 P-MIG Ss 0,9 Ar+2%CO2 Standard X5510053
S03 P-MIG Ss 1 Ar+2%CO2 Standard X5510054
S04 P-MIG Ss 1,2 Ar+2%CO2 Standard X5510055


AX MIG Welder Pulse welding programs

Wprog. No Process Wire material Diameter Shielding gas Description Code
A02 1-MIG AlMg5 1,2 Ar Standard AX00000
A12 1-MIG AlSi5 1,2 Ar Standard AX00001
F03 1-MIG Fe 1 Ar+18%CO2 Standard AX00006
F04 1-MIG Fe 1,2 Ar+18%CO2 Standard AX00007
S03 1-MIG Ss 1 Ar+2%CO2 Standard AX00021
S04 1-MIG Ss 1,2 Ar+2%CO2 Standard AX00022
A02 P-MIG AlMg5 1,2 Ar Standard AX00024
A12 P-MIG AlSi5 1,2 Ar Standard AX00025
F03 P-MIG Fe 1 Ar+18%CO2 Standard AX00028
F04 P-MIG Fe 1,2 Ar+18%CO2 Standard AX00029
S03 P-MIG Ss 1 Ar+2%CO2 Standard AX00033
S04 P-MIG Ss 1,2 Ar+2%CO2 Standard AX00034



500Pulse+ WP - Multi-process power source that provides 500 A with 60% duty cycle. Manual, synergic, pulse, and double pulse welding options available. Includes WiseSteel and WiseFusion welding processes and X5 Work Pack Pulse with 54 welding programs. Compatible with all MAX welding processes as well as WisePenetration, WiseRoot+, and WiseThin+ welding processes. In robotic welding applications, TIG and MMA processes are not available. A 5-year warranty is available through end-user registration in the MyFleet service.

Mains connection voltage 380...460 V ±10 %
Mains connection phases 3~50/60 Hz
Mains connection cable type H07RN-F
Mains connection cable size 6 mm²
Maximum supply current [I1max] 39 ... 34 A
Effective supply current [I1eff] 30 ... 27 A
Rated maximum input power [S1max] 27 kVA
Mains fuse 32 A
Idle state power consumption [P1idle] 33 W
No-load state power consumption (MMA), power save 34 W
No-load state power consumption (MMA), fans ON 240 W
No-load voltage [U0] 76 ... 94 V
Open circuit voltage [Uav] 76 ... 94 V
Output at +40 °C, 60% MIG 500 A
Output at +40 °C, 100% MIG 400 A
Output range, MIG 15 A / 10 V ... 500 A / 50 V
Output range, TIG 15 A / 1 V ... 500 A / 50 V
Output range, MMA 15 A / 10 V ... 500 A / 50 V
Voltage adjustment range, MIG 8 ... 50 V
Power factor at rated maximum current [λ] 0.89
Efficiency at rated maximum current [η] 88 %
EMC class A
Minimum short-circuit power of supply network [Ssc] 6.7 MVA
Voltage supply for auxiliary devices 12 V, 48 V
Voltage supply for cooling unit 24 V, 380...460 V
Wired communication type CAN bus
Operating temperature -20 ... 40 °C
Storage temperature -40 ... 60 °C
Recommended minimum generator power [Sgen] 35 kVA
Degree of protection (fully installed) IP23S
External dimensions, length 750 mm
External dimensions, width 263 mm
External dimensions, height 456 mm
Weight without accessories 39.5 kg
Standards IEC 60974-1, -10

X5 FastMig Pulse welding programs

Wprog. No Process Wire material Diameter Shielding gas Description Code
A01 1-MIG AlMg5 1 Ar Standard X5510093
A02 1-MIG AlMg5 1,2 Ar Standard X5510015
A11 1-MIG AlSi5 1 Ar Standard X5510094
A12 1-MIG AlSi5 1,2 Ar Standard X5510016
C01 1-MIG CuSi3 0,8 Ar Standard: Brazing X551 037
C03 1-MIG CuSi3 1 Ar Standard: Brazing X5510032
C11 1-MIG CuAl8 0,8 Ar Standard: Brazing X5510036
C13 1-MIG CuAl8 1 Ar Standard: Brazing X5510031
F01 1-MIG Fe 0,8 Ar+18%CO2 Standard X5510001
F02 1-MIG Fe 0,9 Ar+18%CO2 Standard X5510019
F03 1-MIG Fe 1 Ar+18%CO2 Standard X5510002
F04 1-MIG Fe 1,2 Ar+18%CO2 Standard X5510003
F06 1-MIG Fe 1,6 Ar+18%CO2 Standard X5510025
F11 1-MIG Fe 0,8 Ar+8%CO2 Standard X5510004
F12 1-MIG Fe 0,9 Ar+8%CO2 Standard X5510020
F13 1-MIG Fe 1 Ar+8%CO2 Standard X5510005
F14 1-MIG Fe 1,2 Ar+8%CO2 Standard X5510006
F21 1-MIG Fe 0,8 CO2 Standard X5510060
F22 1-MIG Fe 0,9 CO2 Standard X5510095
F23 1-MIG Fe 1 CO2 Standard X5510013
F24 1-MIG Fe 1,2 CO2 Standard X5510014
F26 1-MIG Fe 1,6 CO2 Standard X5510056
M04 1-MIG Fe Metal 1,2 Ar+18%CO2 Standard X5510007
M06 1-MIG Fe Metal 1,6 Ar+18%CO2 Standard X5510028
R04 1-MIG Fe Rutil 1,2 Ar+18%CO2 Standard X5 510 008
R06 1-MIG Fe Rutil 1,6 Ar+18%CO2 Standard X5 510 029
R14 1-MIG Fe Rutil 1,2 CO2 Standard X5510033
S01 1-MIG Ss 0,8 Ar+2%CO2 Standard X5 510 009
S02 1-MIG Ss 0,9 Ar+2%CO2 Standard X5 510 021
S03 1-MIG Ss 1 Ar+2%CO2 Standard X5 510 010
S04 1-MIG Ss 1,2 Ar+2%CO2 Standard X5 510 011
S82 1-MIG FC-CrNiMo 0,9 Ar+18%CO2 Standard X5510026
S84 1-MIG FC-CrNiMo 1,2 Ar+18%CO2 Standard X5510012
A01 P-MIG AlMg5 1 Ar Standard X5510040
A02 P-MIG AlMg5 1,2 Ar Standard X5 510 041
A11 P-MIG AlSi5 1 Ar Standard X5510042
A12 P-MIG AlSi5 1,2 Ar Standard X5510043
C01 P-MIG CuSi3 0,8 Ar Standard: Brazing X5510096
C03 P-MIG CuSi3 1 Ar Standard: Brazing X5510097
C11 P-MIG CuAl8 0,8 Ar Standard: Brazing X5510098
C13 P-MIG CuAl8 1 Ar Standard: Brazing X5510099
F01 P-MIG Fe 0,8 Ar+18%CO2 Standard X5510044
F02 P-MIG Fe 0,9 Ar+18%CO2 Standard X5510045
F03 P-MIG Fe 1 Ar+18%CO2 Standard X5510046
F04 P-MIG Fe 1,2 Ar+18%CO2 Standard X5510047
F11 P-MIG Fe 0,8 Ar+8%CO2 Standard X5510048
F12 P-MIG Fe 0,9 Ar+8%CO2 Standard X5510049
F13 P-MIG Fe 1 Ar+8%CO2 Standard X5510050
F14 P-MIG Fe 1,2 Ar+8%CO2 Standard X5510051
M04 P-MIG Fe Metal 1,2 Ar+18%CO2 Standard X5510100
S01 P-MIG Ss 0,8 Ar+2%CO2 Standard X5510052
S02 P-MIG Ss 0,9 Ar+2%CO2 Standard X5510053
S03 P-MIG Ss 1 Ar+2%CO2 Standard X5510054
S04 P-MIG Ss 1,2 Ar+2%CO2 Standard X5510055


AX MIG Welder Pulse welding programs

Wprog. No Process Wire material Diameter Shielding gas Description Code
A02 1-MIG AlMg5 1,2 Ar Standard AX00000
A12 1-MIG AlSi5 1,2 Ar Standard AX00001
F03 1-MIG Fe 1 Ar+18%CO2 Standard AX00006
F04 1-MIG Fe 1,2 Ar+18%CO2 Standard AX00007
S03 1-MIG Ss 1 Ar+2%CO2 Standard AX00021
S04 1-MIG Ss 1,2 Ar+2%CO2 Standard AX00022
A02 P-MIG AlMg5 1,2 Ar Standard AX00024
A12 P-MIG AlSi5 1,2 Ar Standard AX00025
F03 P-MIG Fe 1 Ar+18%CO2 Standard AX00028
F04 P-MIG Fe 1,2 Ar+18%CO2 Standard AX00029
S03 P-MIG Ss 1 Ar+2%CO2 Standard AX00033
S04 P-MIG Ss 1,2 Ar+2%CO2 Standard AX00034
