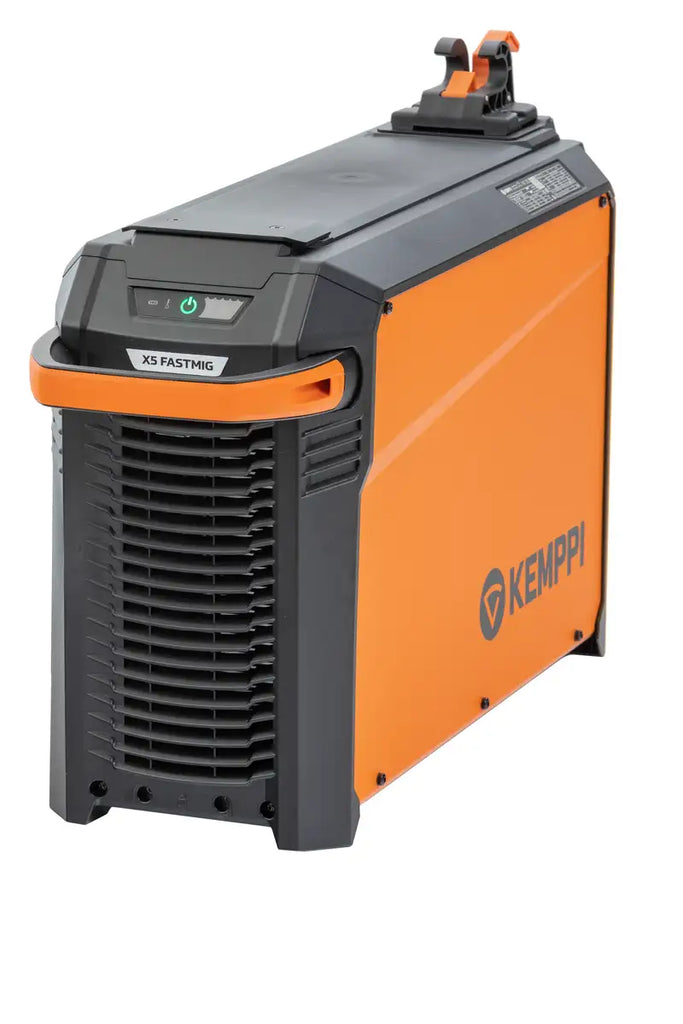

Kemppi X5110400010/X5110500010 X3FastMig Synergic (auto) Power Source 400/500WP
Kemppi X5110400010/X5110500010 X3FastMig Synergic (auto) Power Source 400/500WP
Kemppi X5110400010/X5110500010 X3FastMig Synergic (auto) Power Source 400/500WP
Kemppi X5110400010/X5110500010 X3FastMig Synergic (auto) Power Source 400/500WP

Kemppi

Kemppi X5110400010/X5110500010 X3FastMig Synergic (auto) Power Source 400/500WP

£ POA

Please call for best price.

Kemppi X5110400010/X5110500010 X3FastMig Synergic (auto) Power Source 400/500WP

400 WP - Multi-process power source that provides 400 A with 60% duty cycle. Includes WiseSteel and WiseFusion special processes and X5 Work Pack 1-MIG with 33 welding programs. Compatible with MAX Speed, MAX Cool, and WisePenetration welding processes. In robotic welding applications, TIG and MMA processes are not available. A 5-year warranty is available through end-user registration in the MyFleet service.

Technical Data

Mains connection voltage 380...460 V ±10 %
Mains connection phases 3~50/60 Hz
Mains connection cable type H07RN-F
Mains connection cable size 4 mm²
Maximum supply current [I1max] 28 ... 24 A
Effective supply current [I1eff] 24 ... 21 A
Rated maximum input power [S1max] 20 kVA
Mains fuse 25 A
Idle state power consumption [P1idle] 30 W
No-load state power consumption (MMA), power save 30 W
No-load state power consumption (MMA), fans ON 175 W
No-load voltage [U0] 52 ... 67 V
Open circuit voltage [Uav] 52 ... 67 V
Output at +40 °C, 60% MIG 400 A
Output at +40 °C, 100% MIG 350 A
Output range, MIG 15 A / 12 V ... 400 A / 42 V
Output range, TIG 15 A / 1 V ... 400 A / 42 V
Output range, MMA 15 A / 10 V ... 400 A / 42 V
Voltage adjustment range, MIG 8 ... 45 V
Power factor at rated maximum current [λ] 0.88
Efficiency at rated maximum current [η] 90 %
EMC class A
Minimum short-circuit power of supply network [Ssc] 5.8 MVA
Voltage supply for auxiliary devices 12 V, 48 V
Voltage supply for cooling unit 24 V, 380...460 V
Wired communication type CAN bus
Operating temperature -20 ... 40 °C
Storage temperature -40 ... 60 °C
Recommended minimum generator power [Sgen] 25 kVA
Degree of protection (fully installed) IP23S
External dimensions, length 750 mm
External dimensions, width 263 mm
External dimensions, height 456 mm
Weight without accessories 39 kg
Standards IEC 60974-1, -10

X5 FastMig 1-MIG welding programs

Wprog. No Process Wire material Diameter Shielding gas Description Code
A01 1-MIG AlMg5 1 Ar Standard X5510093
A02 1-MIG AlMg5 1,2 Ar Standard X5510015
A11 1-MIG AlSi5 1 Ar Standard X5510094
A12 1-MIG AlSi5 1,2 Ar Standard X5510016
C01 1-MIG CuSi3 0,8 Ar Standard: Brazing X5510037
C03 1-MIG CuSi3 1 Ar Standard: Brazing X5510032
C11 1-MIG CuAl8 0,8 Ar Standard: Brazing X5510036
C13 1-MIG CuAl8 1 Ar Standard: Brazing X5510031
F01 1-MIG Fe 0,8 Ar+18%CO2 Standard X5510001
F02 1-MIG Fe 0,9 Ar+18%CO2 Standard X5510019
F03 1-MIG Fe 1 Ar+18%CO2 Standard X5510002
F04 1-MIG Fe 1,2 Ar+18%CO2 Standard X5510003
F06 1-MIG Fe 1,6 Ar+18%CO2 Standard X5510025
F11 1-MIG Fe 0,8 Ar+8%CO2 Standard X5510004
F12 1-MIG Fe 0,9 Ar+8%CO2 Standard X5510020
F13 1-MIG Fe 1 Ar+8%CO2 Standard X5510005
F14 1-MIG Fe 1,2 Ar+8%CO2 Standard X5510006
F21 1-MIG Fe 0,8 CO2 Standard X5510060
F22 1-MIG Fe 0,9 CO2 Standard X5510095
F23 1-MIG Fe 1 CO2 Standard X5510013
F24 1-MIG Fe 1,2 CO2 Standard X5510014
F26 1-MIG Fe 1,6 CO2 Standard X5510056
M04 1-MIG Fe Metal 1,2 Ar+18%CO2 Standard X5510007
M06 1-MIG Fe Metal 1,6 Ar+18%CO2 Standard X5510028
R04 1-MIG Fe Rutil 1,2 Ar+18%CO2 Standard X5 510 008
R06 1-MIG Fe Rutil 1,6 Ar+18%CO2 Standard X5 510 029
R14 1-MIG Fe Rutil 1,2 CO2 Standard X5510033
S01 1-MIG Ss 0,8 Ar+2%CO2 Standard X5 510 009
S02 1-MIG Ss 0,9 Ar+2%CO2 Standard X5 510 021
S03 1-MIG Ss 1 Ar+2%CO2 Standard X5 510 010
S04 1-MIG Ss 1,2 Ar+2%CO2 Standard X5 510 011
S82 1-MIG FC-CrNiMo 0,9 Ar+18%CO2 Standard X5510026
S84 1-MIG FC-CrNiMo 1,2 Ar+18%CO2 Standard X5510012

AX MIG Welder 1-MIG welding programs



Wprog. No Process Wire material Diameter Shielding gas Description Code
A02 1-MIG AlMg5 1,2 Ar Standard AX00000
A12 1-MIG AlSi5 1,2 Ar Standard AX00001
F03 1-MIG Fe 1 Ar+18%CO2 Standard AX00006
F04 1-MIG Fe 1,2 Ar+18%CO2 Standard AX00007
S03 1-MIG Ss 1 Ar+2%CO2 Standard AX00021
S04 1-MIG Ss 1,2 Ar+2%CO2 Standard AX00022



500 WP - Multi-process power source that provides 500 A with 60% duty cycle. Includes WiseSteel and WiseFusion special processes and X5 Work Pack 1-MIG with 33 welding programs. Compatible with MAX Speed, MAX Cool, and WisePenetration welding processes. In robotic welding applications, TIG and MMA processes are not available. A 5-year warranty is available through end-user registration in the MyFleet service.

Technical Data

Mains connection voltage 380...460 V ±10 %
Mains connection phases 3~50/60 Hz
Mains connection cable type H07RN-F
Mains connection cable size 6 mm²
Maximum supply current [I1max] 38 ... 33 A
Effective supply current [I1eff] 31 ... 27 A
Rated maximum input power [S1max] 27 kVA
Mains fuse 32 A
Idle state power consumption [P1idle] 30 W
No-load state power consumption (MMA), power save 30 W
No-load state power consumption (MMA), fans ON 195 W
No-load voltage [U0] 59 ... 75 V
Open circuit voltage [Uav] 59 ... 75 V
Output at +40 °C, 60% MIG 500 A
Output at +40 °C, 100% MIG 430 A
Output range, MIG 15 A / 10 V ... 500 A / 47 V
Output range, TIG 15 A / 1 V ... 500 A / 47 V
Output range, MMA 15 A / 10 V ... 500 A / 47 V
Voltage adjustment range, MIG 8 ... 50 V
Power factor at rated maximum current [λ] 0.88
Efficiency at rated maximum current [η] 90 %
EMC class A
Minimum short-circuit power of supply network [Ssc] 6.4 MVA
Voltage supply for auxiliary devices 12 V, 48 V
Voltage supply for cooling unit 24 V, 380...460 V
Wired communication type CAN bus
Operating temperature -20 ... 40 °C
Storage temperature -40 ... 60 °C
Recommended minimum generator power [Sgen] 35 kVA
Degree of protection (fully installed) IP23S
External dimensions, length 750 mm
External dimensions, width 263 mm
External dimensions, height 456 mm
Weight without accessories 39.5 kg
Standards IEC 60974-1, -10



X5 FastMig 1-MIG welding programs

Wprog. No Process Wire material Diameter Shielding gas Description Code
A01 1-MIG AlMg5 1 Ar Standard X5510093
A02 1-MIG AlMg5 1,2 Ar Standard X5510015
A11 1-MIG AlSi5 1 Ar Standard X5510094
A12 1-MIG AlSi5 1,2 Ar Standard X5510016
C01 1-MIG CuSi3 0,8 Ar Standard: Brazing X5510037
C03 1-MIG CuSi3 1 Ar Standard: Brazing X5510032
C11 1-MIG CuAl8 0,8 Ar Standard: Brazing X5510036
C13 1-MIG CuAl8 1 Ar Standard: Brazing X5510031
F01 1-MIG Fe 0,8 Ar+18%CO2 Standard X5510001
F02 1-MIG Fe 0,9 Ar+18%CO2 Standard X5510019
F03 1-MIG Fe 1 Ar+18%CO2 Standard X5510002
F04 1-MIG Fe 1,2 Ar+18%CO2 Standard X5510003
F06 1-MIG Fe 1,6 Ar+18%CO2 Standard X5510025
F11 1-MIG Fe 0,8 Ar+8%CO2 Standard X5510004
F12 1-MIG Fe 0,9 Ar+8%CO2 Standard X5510020
F13 1-MIG Fe 1 Ar+8%CO2 Standard X5510005
F14 1-MIG Fe 1,2 Ar+8%CO2 Standard X5510006
F21 1-MIG Fe 0,8 CO2 Standard X5510060
F22 1-MIG Fe 0,9 CO2 Standard X5510095
F23 1-MIG Fe 1 CO2 Standard X5510013
F24 1-MIG Fe 1,2 CO2 Standard X5510014
F26 1-MIG Fe 1,6 CO2 Standard X5510056
M04 1-MIG Fe Metal 1,2 Ar+18%CO2 Standard X5510007
M06 1-MIG Fe Metal 1,6 Ar+18%CO2 Standard X5510028
R04 1-MIG Fe Rutil 1,2 Ar+18%CO2 Standard X5 510 008
R06 1-MIG Fe Rutil 1,6 Ar+18%CO2 Standard X5 510 029
R14 1-MIG Fe Rutil 1,2 CO2 Standard X5510033
S01 1-MIG Ss 0,8 Ar+2%CO2 Standard X5 510 009
S02 1-MIG Ss 0,9 Ar+2%CO2 Standard X5 510 021
S03 1-MIG Ss 1 Ar+2%CO2 Standard X5 510 010
S04 1-MIG Ss 1,2 Ar+2%CO2 Standard X5 510 011
S82 1-MIG FC-CrNiMo 0,9 Ar+18%CO2 Standard X5510026
S84 1-MIG FC-CrNiMo 1,2 Ar+18%CO2 Standard X5510012


AX MIG Welder 1-MIG welding programs

Wprog. No Process Wire material Diameter Shielding gas Description Code
A02 1-MIG AlMg5 1,2 Ar Standard AX00000
A12 1-MIG AlSi5 1,2 Ar Standard AX00001
F03 1-MIG Fe 1 Ar+18%CO2 Standard AX00006
F04 1-MIG Fe 1,2 Ar+18%CO2 Standard AX00007
S03 1-MIG Ss 1 Ar+2%CO2 Standard AX00021
S04 1-MIG Ss 1,2 Ar+2%CO2 Standard AX00022
