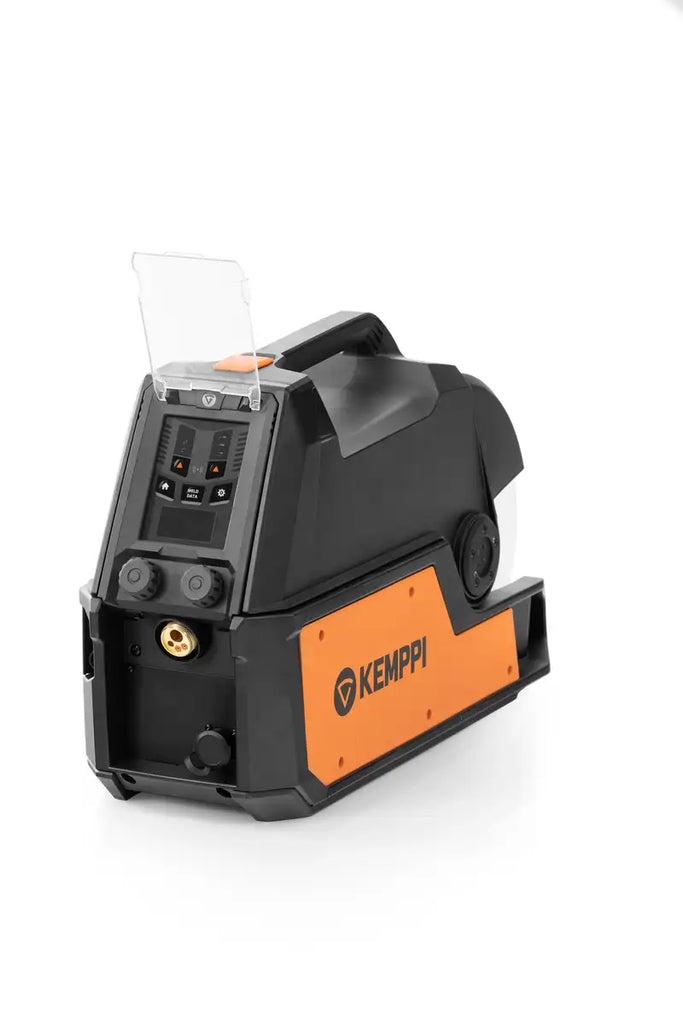

Kemppi X5702030000 SuperSnakeKit X5 Feeder (for 300 Manual)
Top-loading wire feeder with a digital parameter display. For MIG/MAG, MMA, and gouging. Manual, 2-knob parameter control. 4-wheel wire feed mechanism with integrated lighting and a kinetic spool brake. USB port connectivity.
Technical Data
| Supply voltage | 48 V |
| Supply current at maximum load | 6.3 A |
| Idle power | 6 W |
| Idle power with cabinet heater | 30 W |
| Welding current 60% | 500 A |
| Welding current 100% | 430 A |
| EMC class | A |
| Welding connection type | Euro |
| Wire feed mechanism | 4-roll, Single-motor |
| Diameter of feed rolls | 32 mm |
| Maximum wire spool weight | 20 kg |
| Maximum wire spool diameter | 300 mm |
| Maximum shielding gas pressure | 0.5 MPa |
| Control panel, model | X5 Feeder Panel 300R |
| Control panel, display | B/W OLED |
| Control panel, controls | 2 control knobs, Push buttons |
| Control panel, type of installation | Built-in |
| Control panel, input voltage (DC) | 12 V |
| Control panel, input current (DC) | 100 mA |
| Wired communication type | CAN bus |
| Degree of protection (fully installed) | IP23S |
| External dimensions, length | 650 mm |
| External dimensions, width | 230 mm |
| External dimensions, height | 410 mm |
| Weight without accessories | 10.9 kg |
| Standards | IEC 60974-5, 10 |
