Link400 Instagrid Max 400V Battery Operated Generator

  • Sale
  • Regular price £1,650.00

Excludes VAT

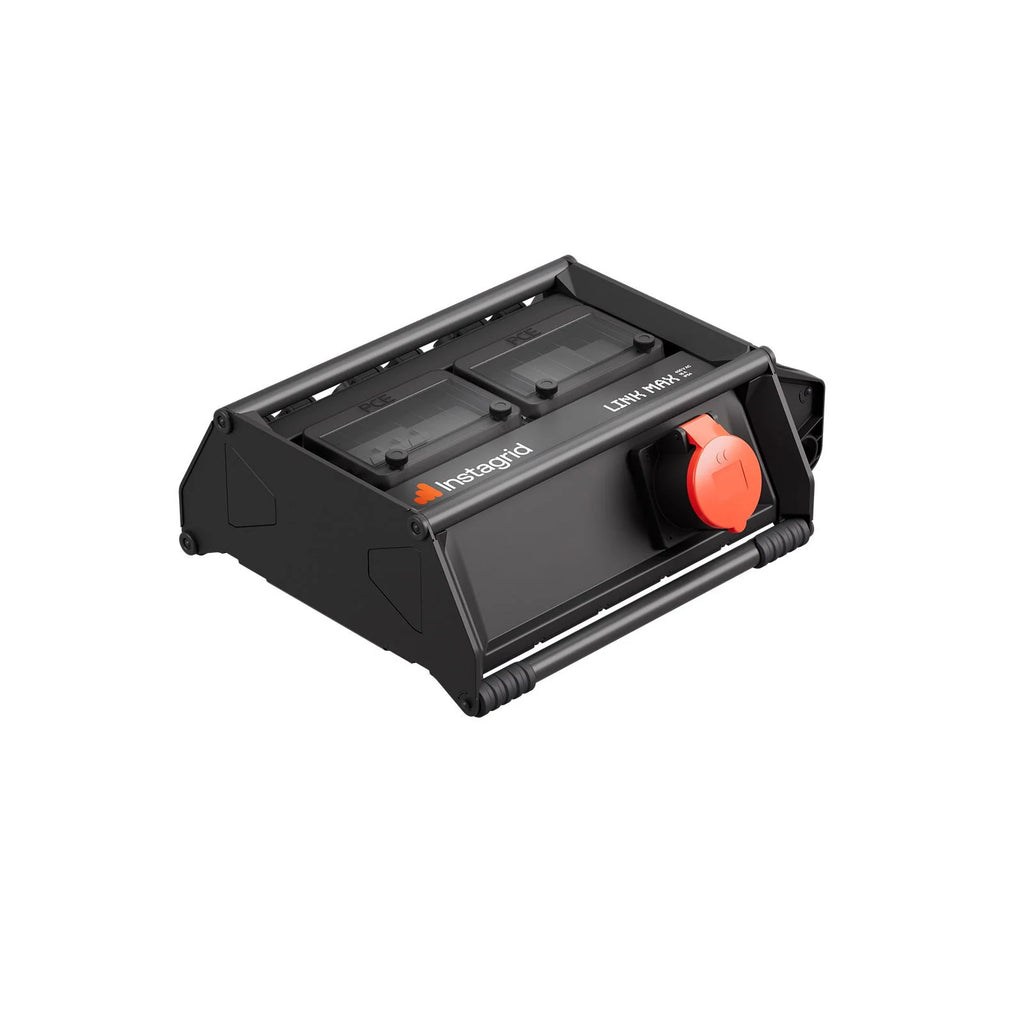

Link400 Instagrid Max 400V Battery Operated Generator

Combine the power of three compatible Instagrid ONE units to create one, 400 V, 3-phase output.

Exceptional portability-Instagrid LINK MAX is an accessory that allows you to combine the power of three compatible Instagrid ONE units to create a 400 V, 3-phase hand-portable power system.

Unmatched peak power-The Instagrid LINK MAX solution provides peak power of up to 54 kW, enabling you to run highly demanding equipment effortlessly.

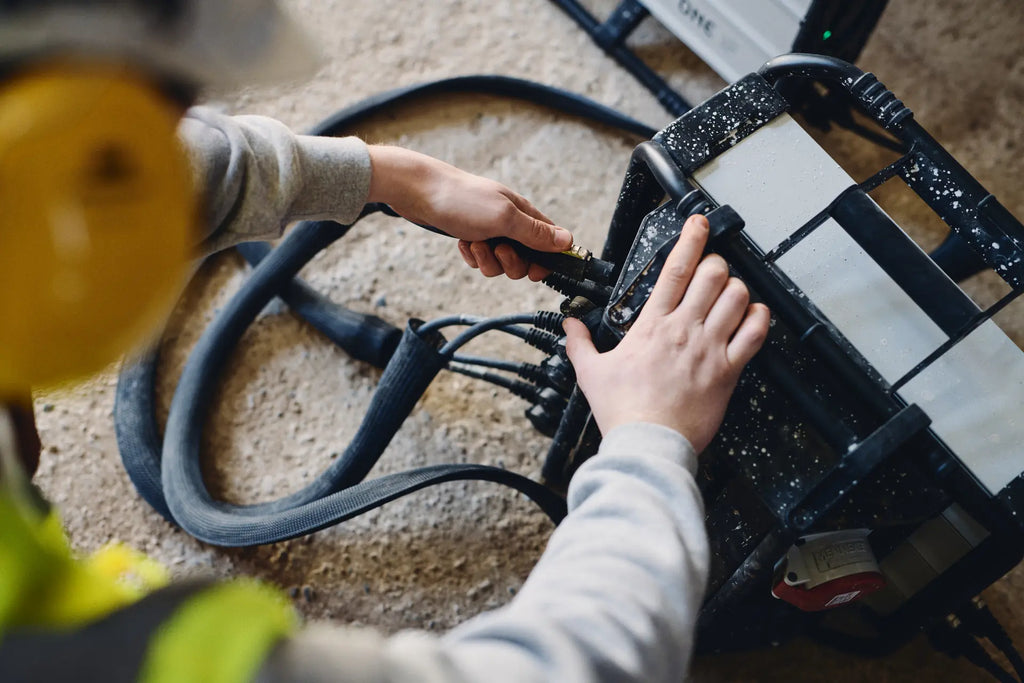

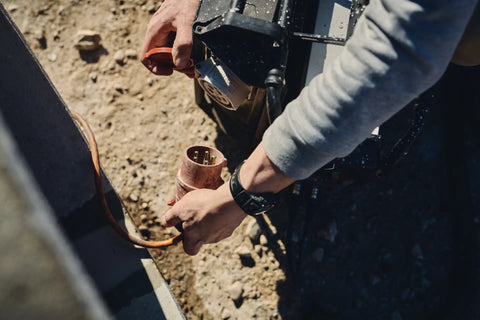

Simple plug and play experience, arrive on site, plug in the cables and you're ready to go!

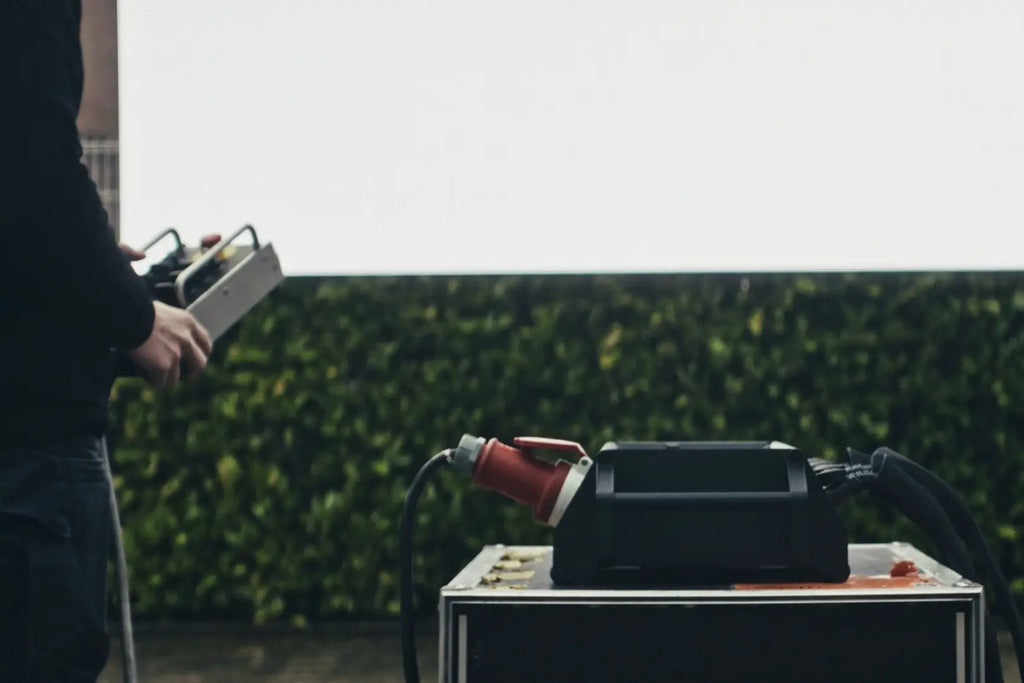

Power your world: Film, Media & Events, setting up a 400 V power source on your event or filmset has never been easier.

Efficiency and reliability, access 3-phase power when you need it, wherever you need it. Stay in control of your own power requirements. Safer working environment, eliminates the noise and air pollution of generators. Reduce unnecessary cable runs and trip hazards. Flexible innovation, this modular system delivers a 3-phase portable power solution and standalone 230v power.

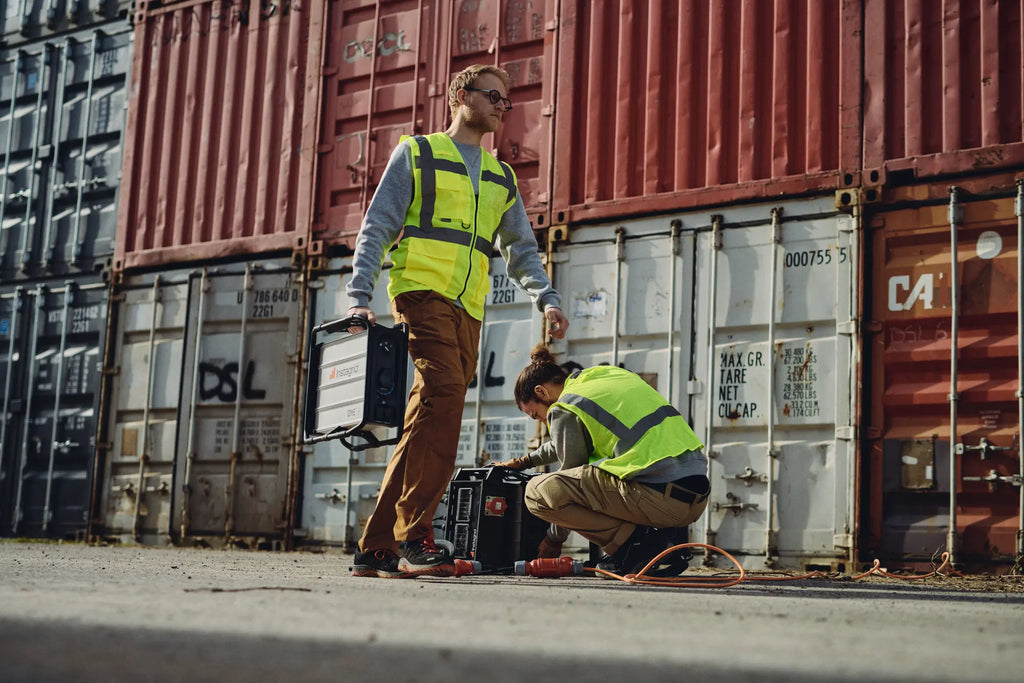

Power your world: Construction Setting up a 400 V power source on your jobsite has never been easier.

Efficiency and reliability, stay in control of your own power requirements access your own 3-phase power source when you need it, wherever you need it. Safer working environment-eliminates the noise and air pollution of generators and benefit your team and the surrounding environment. Reduce unnecessary cable runs and trip hazards. Flexible innovation, the modular design of our LINK MAX system enables you to access 3-phase portable power or a standalone 230v power supply.

General information

Weight - 5.1 kg
Size - 391 x 320 x 140 mm
IP Class - IP 54
Protection class - Class I with Class II construction
Ambient temperature - - 20 °C to 55 °C

Operation
Nominal voltage output - 400 V AC
Frequency - 50 Hz
Rated output current - 16 A
Rated output power - 11 kW
Peak power - 54 kW

Receptacles

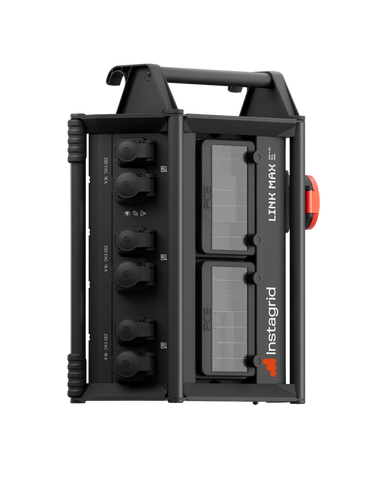

Input receptacles - 3x Neutrik powerCON TRUE1 TOP® - NAC3FPX                                                                     3x Neutrik powerCON TRUE1 TOP® - NAC3MPX

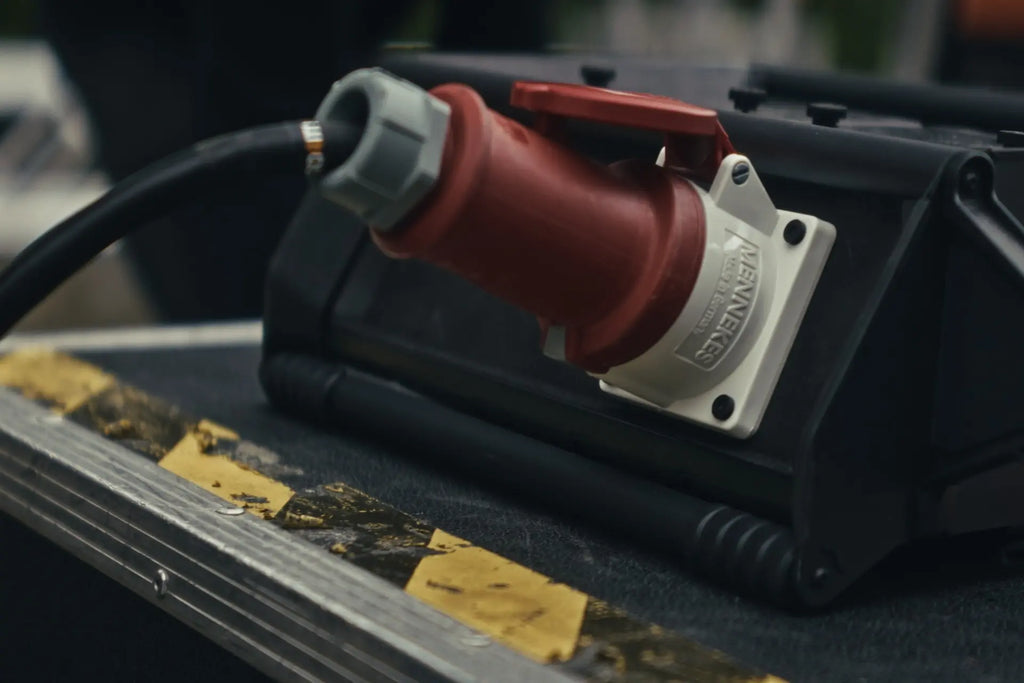

Output receptacles - 1x CEE 5-pole 6h 16 A
Delivery scope - 1 x Instagrid LINK MAX, 3x dual Neutrik cables

Protection
Phase guard - Phase monitoring device (PMD)
Insulation monitor - Insulation monitoring device (IMD)
Circuit breaker - 1x 4-pole C16

Please note - The LINK MAX is not compatible with Instagrid GO (110v) and can only be used with Instagrid ONE.
