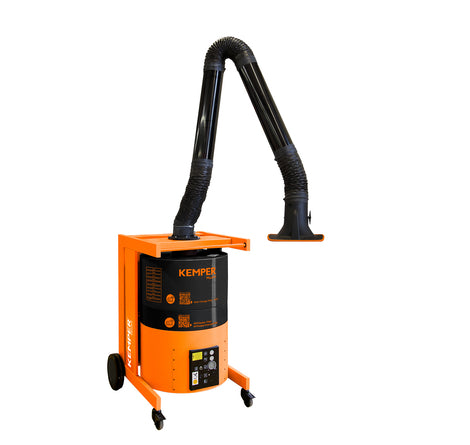

MaxiFil smoke extraction units combine large filter capacities with contamination-free filter change. With their high mobility and an operating radius of 360 degrees, they are ideal for regular use. The comfortable filter unit easily handles applications with medium amounts of smoke and dust.
- Suitable for all materials, including high-alloy steel
- Medium levels of smoke and dust
- Regular use
- Safe operation by rotation field control
- Exhaust arm requires less adjustment due to flow-optimised exhaust hood design
- Increased safety due to filter monitoring
- Increased safety with safe filter change
- Very economic due to long lasting high capacity filters
- Exhaust arm up to 4 m
- Automatic Start-Stop (optional)
- Lighting in the hood (optional)
- Rotating exhaust hood
- Automatic start-stop
- Workplace lighting incl. on/off switch at the hood
- Various arm lengths and versions
- Other voltages
Technical Data
Filter - Filter stages - 2
Filter method - Storage Filter
Filter surface - 42 m²
Type of filter - Safe Change Filter
Filter material - Cellulose with polyester nanofibre fleece
Filter efficiency - > 99.5 %
Filter class - E12
Additional filters -Pre-filter (aluminium)
Basic data
Extraction capacity - 1100 m³/h
Max. fan performance - 3000 m³/h
Maximum vacuum - 3200 Pa
Dimensions (w x t x h) - 803 x 892 x 1109 mm
Weight - 129 kg
Motor power 1.5 kW
Power supply - 3 x 400 V / 50 Hz
Rated current - 3.1 A
Control voltage - 24 V, DC
Noise level - 70 dB(A)
Additional information
IFA-Certification - W3-Approved
Fan type - Radial fan
Quantity of extraction arms - 1
Exhaust arm type - Rigid Metal Tube Arm
Diameter extraction arm 150 mm
Length of exhaust arm 2,3,4 m
