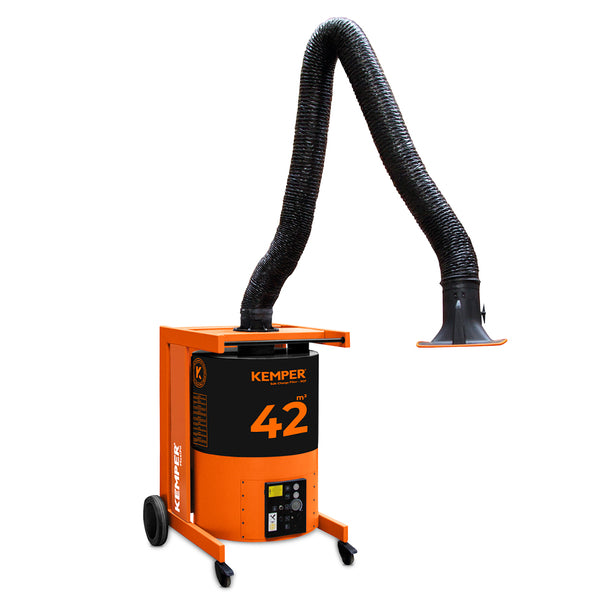

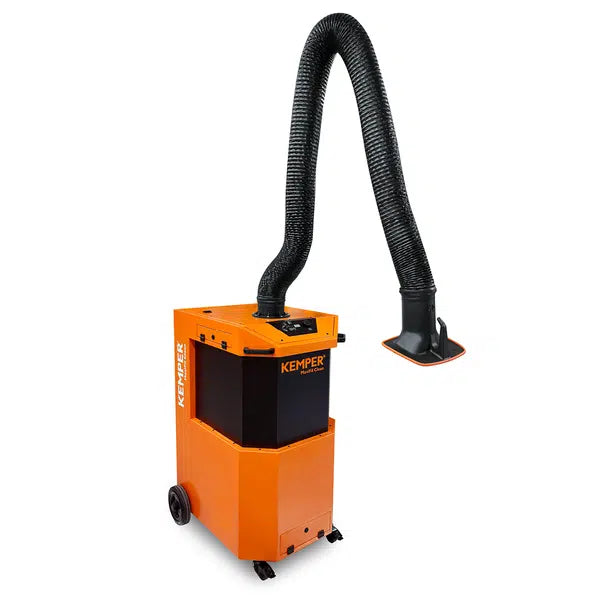

KEMPER Maxifil Clean - Welding Smoke Filter Unit 2,3,4m Flexible Exhaust Arm 3 phase
The welding smoke extraction unit MaxiFil Clean has a self-cleaning filter in combination with an automatic, contamination-freedust disposal. Its high mobility and a 360-degree operating radius make it the ideal device for continuous use. The simple filter unit easily handles applications with large amounts of smoke and dust.
Features and Benefits
- Safe operation by rotation field control
- Exhaust arm requires less adjustment due to flow-optimised exhaust hood design
- Increased safety due to filter monitoring
- Very economic due to long lasting high capacity filters
- Automatic filter cleaning
- Exhaust arm up to 4 m
- Automatic Start-Stop (optional)
- Lighting in the hood (optional)
- Cleanable filter
- Rotating exhaust hood
- Easy to use: Intuitive & ergonomic one-button operation
- Disposal of welding fumes in disposable bags
- Spark pre-separator made of aluminium mesh
Typical Applications
- Suitable for all materials, including high-alloy steel
- High levels of smoke and particles
- Non-stop operation
Technical Data
Filter & Extraction
| Extraction capacity | 1450 m³/h |
| Filter stages | 2 |
| Filter method | Cleanable filter |
| Filter cleaning method | Rotating nozzle |
| Filter surface | 15 m² |
| Type of filter | Filter cartridge |
| Filter material | ePTFE membrane |
| Filter efficiency | > 99.9 % |
| Dust classification | M |
| Additional filters | Spark pre-separator made of aluminium mesh |
Power & Electrical
| Motor power | 2.2 kW |
| Power supply | 3 x 400 V / 50 Hz |
| Rated current | 4.4 A |
| Control voltage | 24 V, DC |
| Compressed air supply | 5 – 6 bar |
Physical Specifications
| Dimensions (w x t x h) | 834 x 973 x 1350 mm |
| Weight | 197 kg |
| Noise level | 73 dB(A) |
Extraction Arm Specifications
| Quantity of extraction arms | 1 |
| Exhaust arm type | Rigid and flexible options |
| Diameter extraction arm | 150 mm |
| Length of exhaust arm | 2 to 4 m |
| IFA-Certification | W3-Approved |
| Fan type | Radial fan |
Available Variants & Accessories
| Arm lengths and versions | Various |

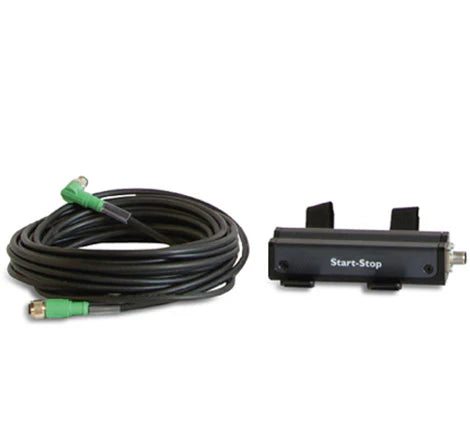

| Automatic start-stop | Optional |

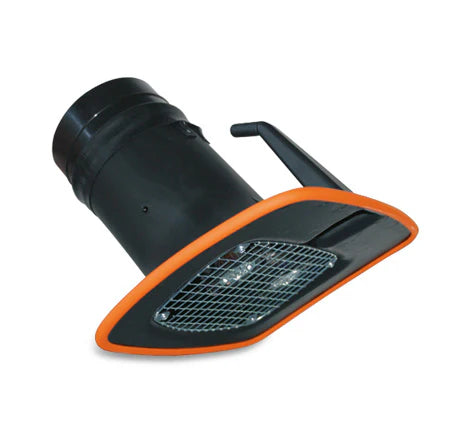

| Workplace lighting | Optional, incl. on/off switch at the hood |
